Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.2302021 of 3

RAD REPLA TIO CE MEN

SWC ENTRE T ION

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN 11 Bit vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Supports Non-Bose and Bose amplified systems.

- Provides Vehicle Speed Sensor (VSS), Parking Brake and Reverse Outputs.

- Retains factory OnStar®

- Retains chime functions.

- EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

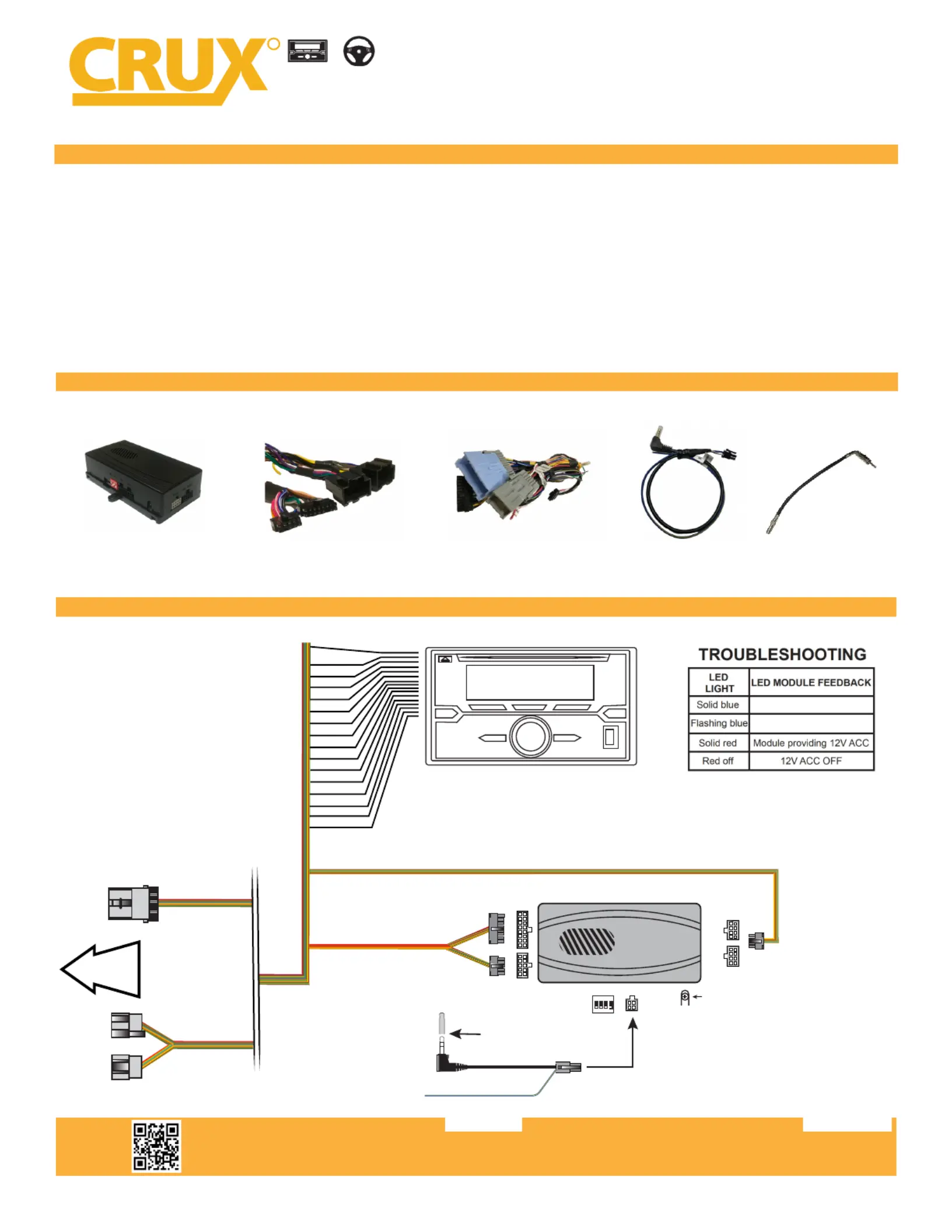

INSTALLATION DIAGRAM:

SOOGM-16B MODULE SOOGM-16B 14 & 16 PIN HARNESS SOOGM-16B 24 PIN HARNESS SWC CABLES

16 & 14-Pin Connector Harness

SOOGM-16B

Radio Replacement Interface with Steering Wheel Control Retention

for Select GM LAN 11-Bit Vehicles 2006-2012

AFTERMARKET

RADIO

Reverse Gear Purple/White

Parking Brake Yellow/Black

Illumination (+) Orange

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

Vehicle Speed Output Red/Black

Ampliﬁer Turn-on Blue/White

24-Pin

Connector

8-Pin

Connector

BOSE NON

BOSE

10-Pin

Connector SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

JVC/Kenwood (Blue / Yellow)

To aftermarket

radio SWC wire or

3.5mm port

LAN Bus not recognized

LAN Bus recognized

24-Pin Connector Harness

Select

Appropriate

Harness

ANTENNA ADAPTER

TO FACTORY

HARNESS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.230202

SOOGM-16B

2 of 3

RAD REPLA TIO CE MEN

SWC ENTRE T ION

INTERFACING SOLUTIONS

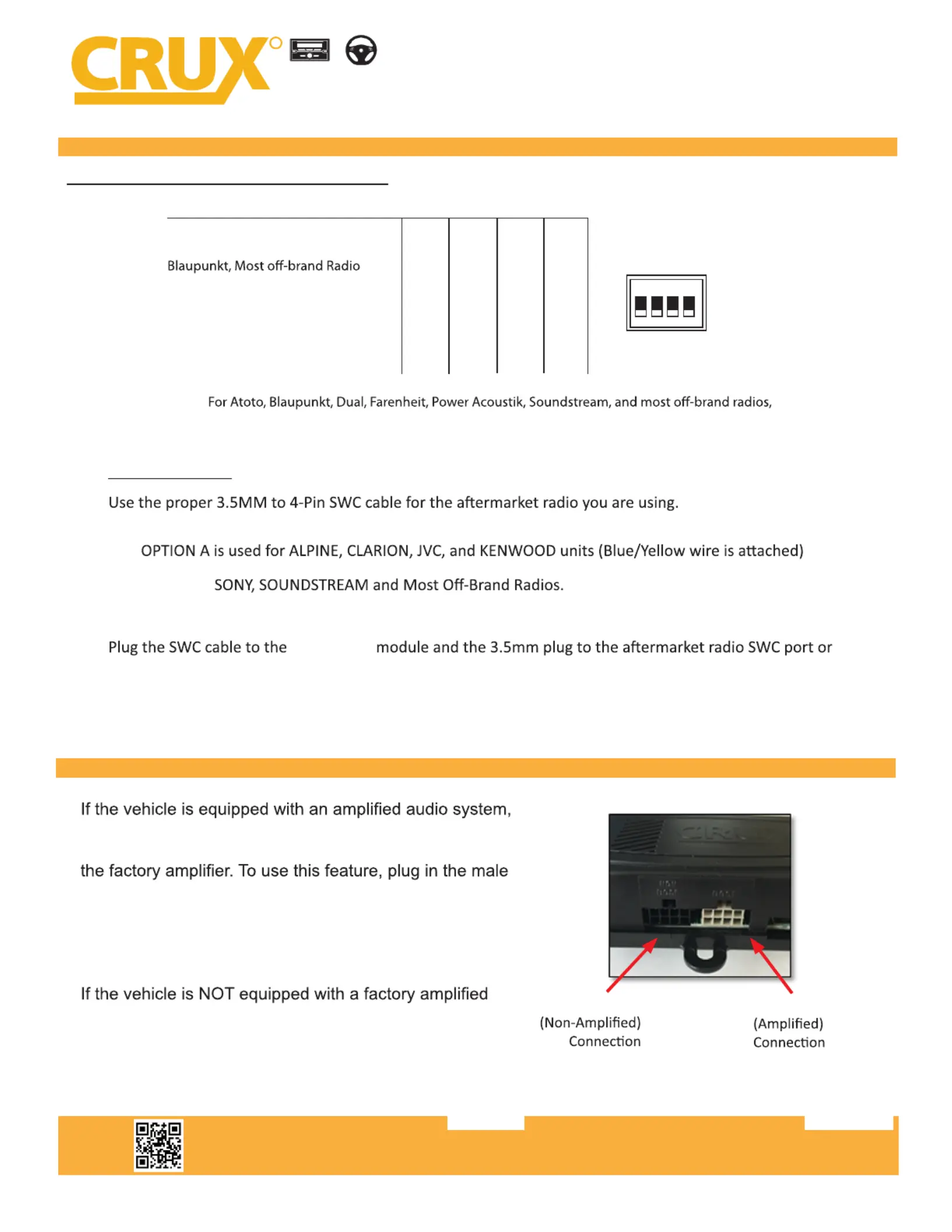

DIP SWITCH SETTINGS:

4-PIN SWC CABLE

OPTION B is used for BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK, PIONEER,

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

use the Blue/Yellow wire for JVC and Kenwood radios.

SELECTING THE AUDIO SYSTEM:

the SOOGM-16B has a built-in audio level adaptor that

outputs the proper audio level from the aftermarket radio to

8-pin connector on the ONST-11B harness to the GRAY

female 8-pin connector on the ONST-11B module. The

module is also labeled “Bose” and “Non Bose” to avoid

confusion. (see picture below)

system, plug in the male 8-pin connector to the BLACK

female 8-pin on the ONST-11B module.

BOSE

NON BOSE

Radio Replacement Interface with Steering Wheel Control Retention

for Select GM LAN 11-Bit Vehicles 2006-2012

RADIO BRAND: DIP#: 1 2 3 4

Atoto, Dual, Fahrenheit, Jensen,

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

NOTE:

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

SWC MODULE

DIP SWITCH

1 2 3 4

OFF OFF ON ON

OFF OFF OFF OFF

OFF ON ON OFF

OFF ON ON ON

OFF ON OFF ON

OFF ON OFF OFF

OFF OFF ON OFF

SOOGM-16B

AFTERMARKET RADIO DIP SWITCH SETTINGS:
