Side 1/4

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.071720

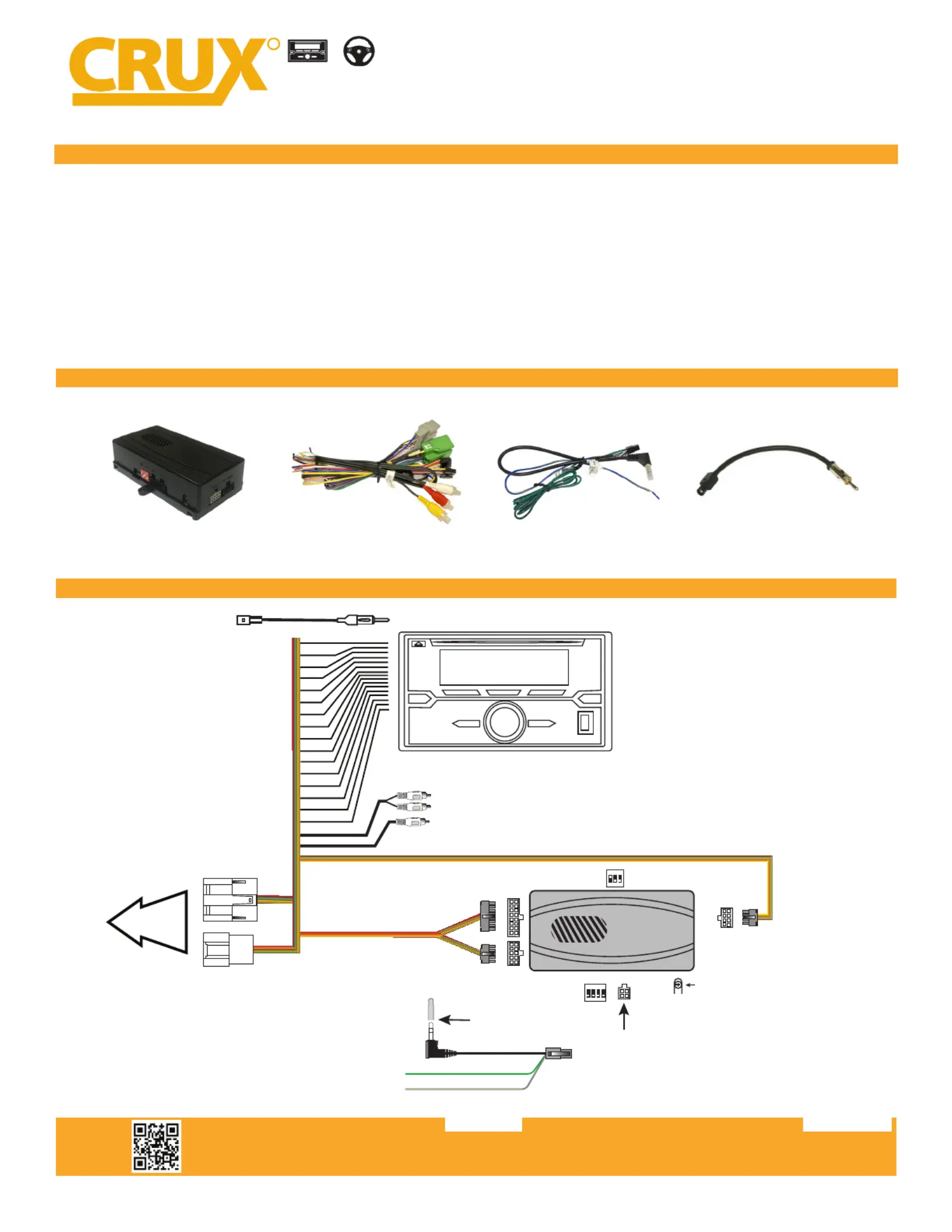

1 of 4

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.

- Retains OnStar functionality.

- Retains all chime functions.

- Retains OEM Auxiliary Input.

- Retains Factory Bluetooth in Vehicles 2008-upwards if equipped with the new OnStar device.

- Retains factory Steering Wheel Controls via built-in, preprogrammed interface.

- Retains RAP (Retained Accessory Power).

- Includes factory backup camera connection for the IO3 system. (vehicles with IO4, IO5 & IO6 systems can be hard

wired to retain the OEM camera. See page 3)

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SOOGM-19L MODULE SOOGM-19L HARNESS SWC CABLE ANTENNA ADAPTER

SOOGM-19L

OnStar Radio Replacement Interface with Steering Wheel

Control Retention for GM LAN v2 (LIN) Bus Vehicles 2014 - 2018

AFTERMARKET

RADIO

Reverse Red/White































TO FACTORY

HARNESS

16-Pin Green

Connector

20-Pin Gray

Connector

4-Pin

Connector

Cap or insulate if

not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

Audio Input

Rear Camera (IO3)

LIN BUS (Green/Black)

Antenna Adapter

(Included)

24-Pin

Connector

8-Pin

Connector

NON

BOSE

10-Pin

Connector SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

1 2 3

ON VR Activation

for OnStar (set DIP#1 to ON)

JVC/Kenwood (Blue / Yellow)

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.071720

SOOGM-19L

OnStar Radio Replacement Interface with Steering Wheel

Control Retention for GM LAN v2 (LIN) Bus Vehicles 2014 - 2018

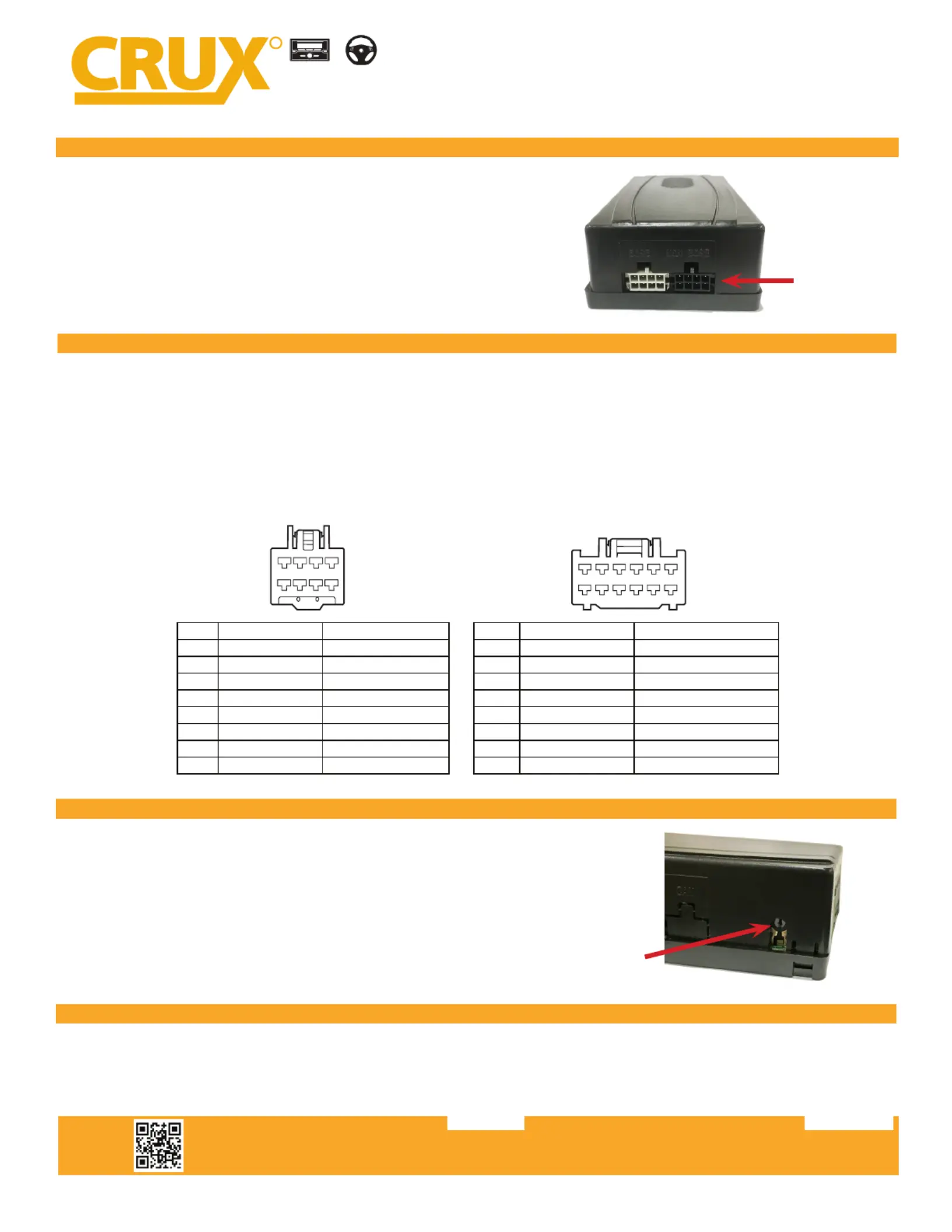

2 of 4

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

Plug in the 8-pin Molex connector of the SOOGM-19L harness

to the Black, NON BOSE, port of the module.

Non-Bose

Port

The SOOGM-19L has a potenometer to adjust the chime

volume. It is set at half way by default. To adjust the volume,

simply use a suitable screw driver and turn the potenometer

clockwise to increase the volume and counter-clockwise to

decrease the volume.

Chime

Volume

Adjustment

CHIME VOLUME ADJUSTMENT:

ONSTAR VOLUME ADJUSTMENT:

To adjust the OnStar volume, turn on OnStar and adjust the volume using the SWC volume adjustment. There

are 4 steps of volume control. Once it is set, the SOOGM-19L will memorize this level.

AUDIO CONNECTION:

BOSE AMPLIFIER BYPASS:

For vehicles equipped with a factory Bose amplier, extend the speaker wires of the SOOGM-19L harness and

connect to the Bose amplier output wires. Locate the Bose amplier to nd out how much speaker wires is

neccessary. The Bose amplier is located as follows: (NOTE: Bose ampliers are commonly found in the locaons listed

below but the manufacturer can mount it elsewhere. Installer should verify the locaon before installaon.)

Trucks = Center of the rear wall / SUVs = Center console or in the cargo space / Sedans = Rear deck or Trunk area

Pinout for the 8 and 16 pin OEM Bose amplier connectors:

8 5

Pin # Wire Color Descrip�on

1 Dark Blue / Grey Subwoofer +

2 Yellow Right Front Speaker +

3 Dark Blue Le� Front Speaker +

4 Red / Yellow Constant +12V

5 Grey / Black Subwoofer -

6 Yellow / Black Right Front Speaker -

7 Brown / Dark Blue Le� Front Speaker -

8 Black Ground

Pin # Wire Color Descrip�on

4 Brown / Light Green Right Front Tweeter +

5 Yellow / Dark Blue Tweeter +Le� Front

6 White Right Rear Speaker +

7 Light Green Le� Rear Speaker +

12 Purple / Brown Right Front Tweeter -

13 Yellow / Grey Tweeter - Le� Front

14 Dark Blue / Black Right Rear Speaker -

15 Light Green / Black Le� Rear Speaker -
