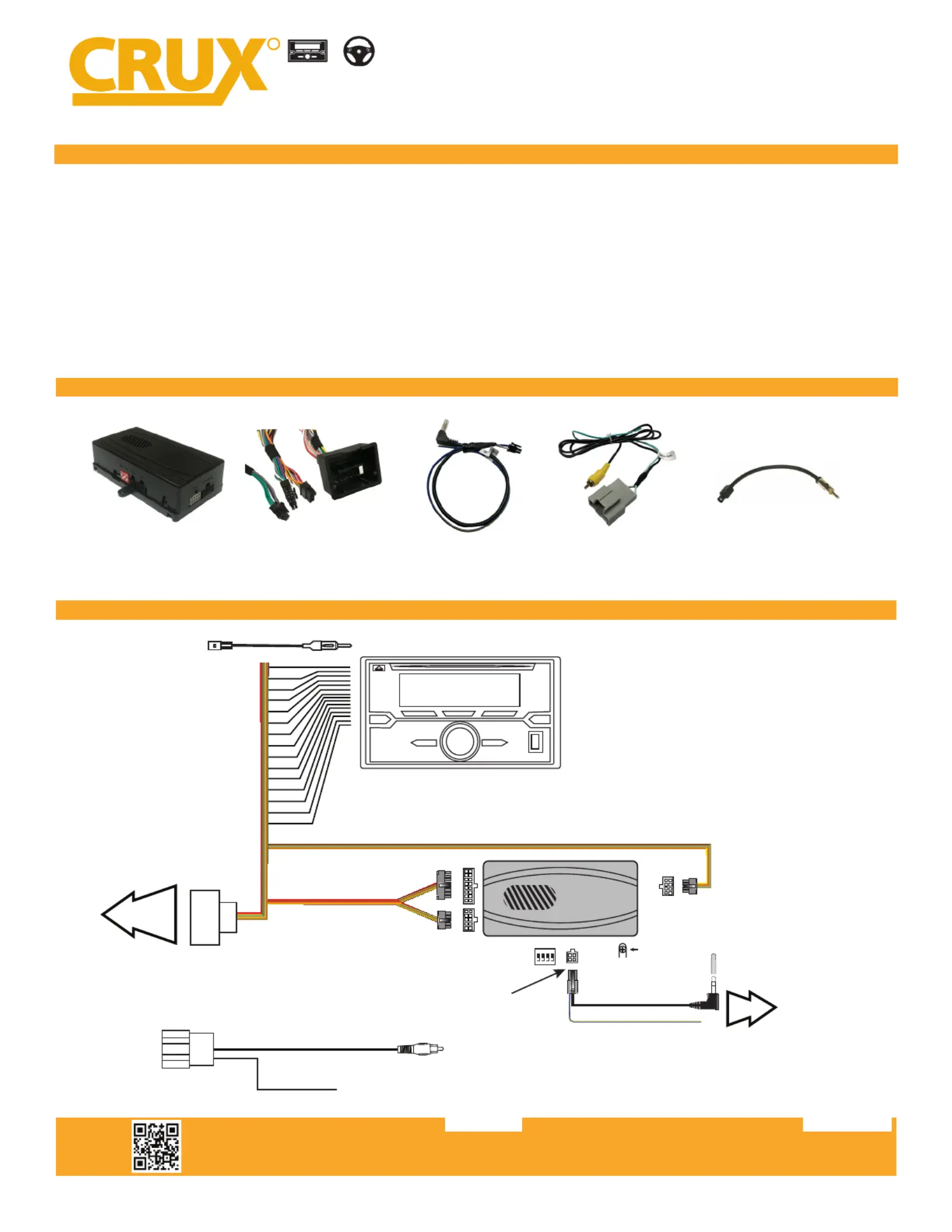

Side 1/3

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.100620

1 of 3

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

- Retains factory features in select GM LAN Bus vehicles while funconing with an aermarket radio.

- Retains OnStar funconality.

- Retains all chime funcons.

- Retains factory Steering Wheel Controls via built-in, preprogrammed interface.

- Retains RAP (Retained Accessory Power).

- Retains factory backup camera.

- Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SOOGM-19N Module SWC Cable Camera Retenon SOOGM-19N Harness

Harness

Antenna Adapter

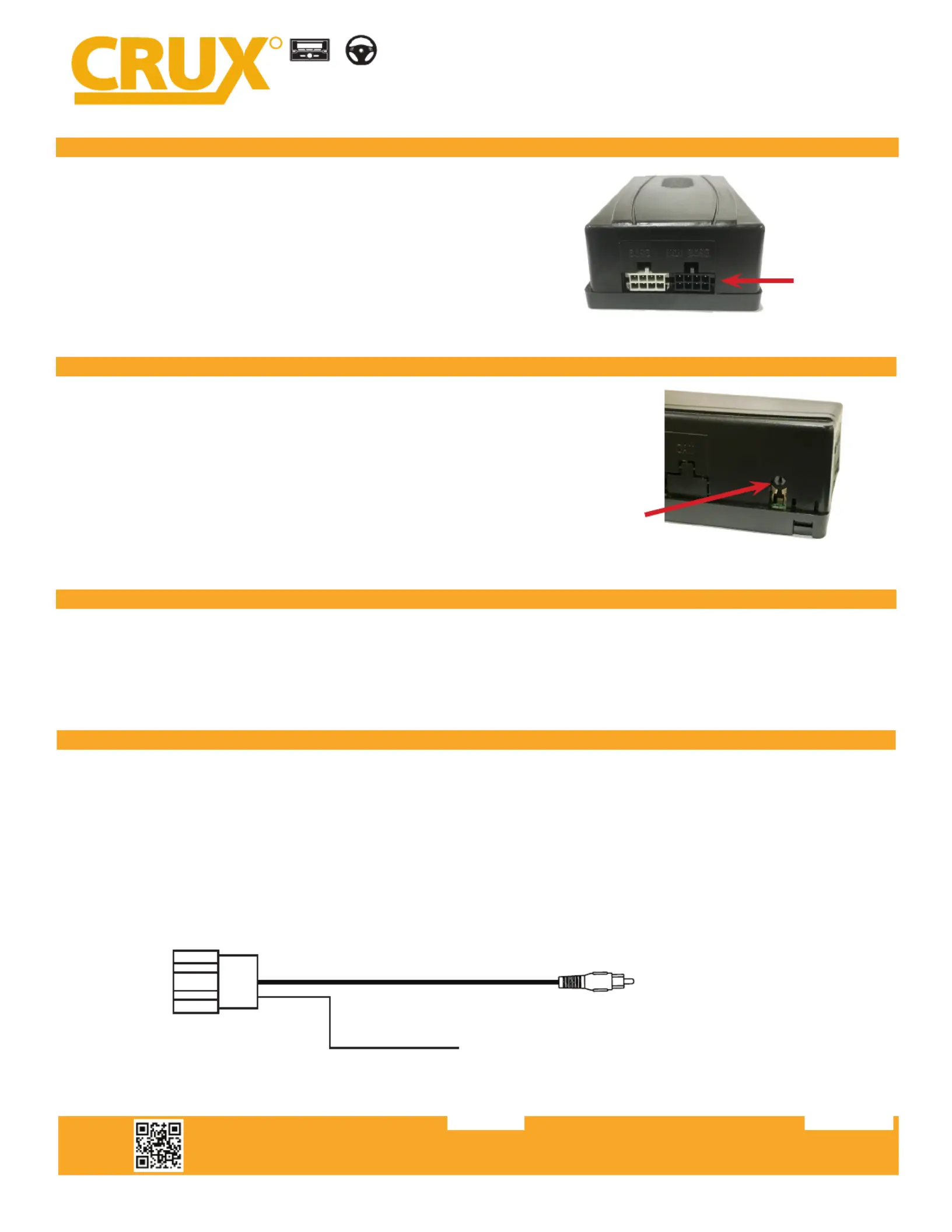

SOOGM-19N

OnStar Radio Replacement Interface with Steering Wheel

Control Retention for GM LAN Bus Vehicles 2010-2017

AFTERMARKET

RADIO

Reverse Red/White





























TO FACTORY

HARNESS

Cap 3.5 plug or insulate wire

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

Antenna Adapter

(Included)

24-Pin

Connector

8-Pin

Connector

NON

BOSE

10-Pin

Connector SWC DIP SWC

1 2 3 4

Chime Volume

Adjustment

JVC/Kenwood (Blue / Yellow)

44-PIN

CONNECTOR

To Aftermarket

Radio Rear Camera Input

To OEM Camera

Harness

Gray 16-Pin

Connector





To aftermarket

radio SWC port

or wire

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.100620

SOOGM-19N

OnStar Radio Replacement Interface with Steering Wheel

Control Retention for GM LAN Bus Vehicles 2010-2017

2 of 3

RAD IO REP LA CEMENT

SWC RET ENTIO N

INTERFACING SOLUTIONS

Plug in the 8-pin Molex connector of the SOOGM-19N harness

to the Black, NON BOSE, port of the module.

Non-Bose

Port

The SOOGM-19N has a potenometer to adjust the chime

volume. It is set at half way by default. To adjust the volume,

simply use a suitable screw driver and turn the potenometer

clockwise to increase the volume and counter-clockwise to

decrease the volume.

Chime

Volume

Adjustment

CHIME VOLUME ADJUSTMENT:

ONSTAR VOLUME ADJUSTMENT:

To adjust the OnStar volume, turn on OnStar and adjust the volume using the SWC volume adjustment. There

are 4 steps of volume control. Once it is set, the SOOGM-19N will memorize this level.

AUDIO CONNECTION:

BACKUP CAMERA CONNECTION:

You can retain the factory back-up camera by using the OEM camera retenon harness included in the kit.

1. Connect the 16-pin back-up camera harness to the vehicle’s 16-pin factory backup camera connector.

2. Connect the Yellow video RCA to the new aermarket radio camera input.

3. Test the video feed before installing the radio back into the dashboard.

To Aftermarket

Radio Rear Camera Input

To OEM Camera

Harness

Gray 16-Pin

Connector

Vehicle Speed Sense

(Green/White)
