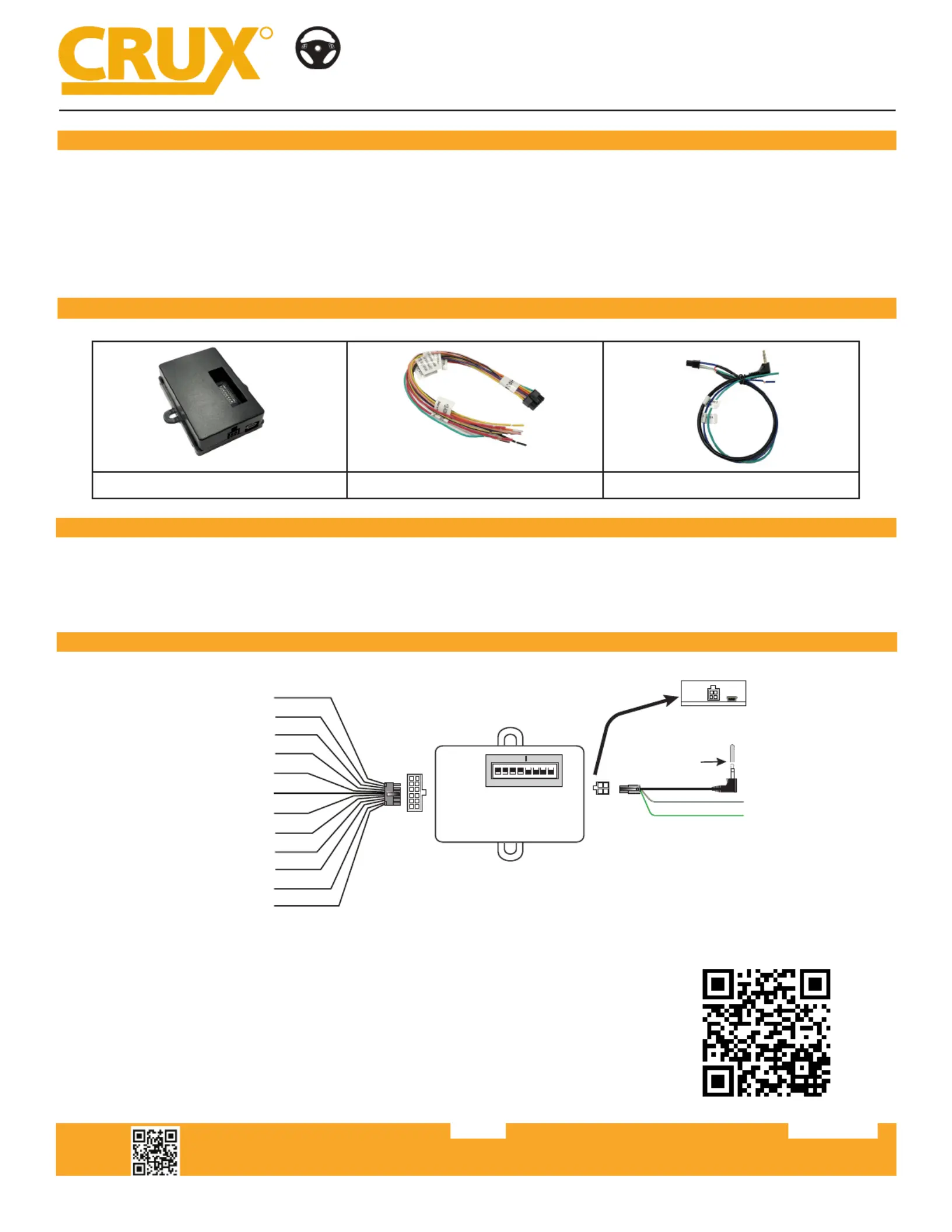

SWR-100

Universal Steering Wheel Control Retention Interface

INTERFACING SOLUTIONS

SWC RETENTION

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.071619

- Retains Steering Wheel Controls via built-in, pre-programmed interface.

- Provides +12 volt accessory output.

- Auto detect on CAN Bus vehicles.

- Retains VR Command (Voice Recognion) funcon on select OEM steering wheel controls to acvate

CarPlay and Android Auto compable devices.

- Works on the new generaon Sony Radio with CarPlay funcon.

PRODUCT FEATURES:

SWR-100 Module SWR-100 Harness SWC Cable

PARTS INCLUDED:

INSTALLATION DIAGRAM:

For vehicle specic wiring diagram and connecon, please visit:

www.cruxinterfacing.com/wiring or click on the QR code.

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

4-Pin

Connector

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW)

Insulate with tape

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See below for DIP switch settings.

LIN BUS (Green)

Ground

CAN Low

iBus & GM LIN

ACC In

ACC Out

SWC Ground

+12V Constant

CAN High

Class II

SWC 1

SWC 2

SWC 3

Black

Pink/Black

White/Red

Red/White*

Red

Black

Yellow

Pink

Violet/White

Orange/Black

Yellow/Black

Green/White

*For vehicles with analog SWC, connect the Red/White wire to ACC to power the module.

SUPPORTED RADIOS:

Alpine

Boss

Blaupunkt

Clarion

Dual

Fahrenheit

Jensen

JVC

Kenwood

Pioneer

Power Acousk

Sony

Soundstream

Most O-Brand Radios

1 of 2

SWR-100

Universal Steering Wheel Control Retention Interface

INTERFACING SOLUTIONS

SWC RETENTION

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.042318

2 of 2

Kenwood/JVC (BLUE / YELLOW )

LIN BUS (Green)

SWC CABLE

Vehicle GREEN/BLACK Wire

Located beneath the steering wheel column

Kenwood/JVC (BLUE / YELLOW)

LIN BUS (Green)

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

SWC CABLE

(included in kit)

For aermarket radios with a 3.5mm jack for the SWC, use the SWC cable below.

(Old Sony, New Sony (with CarPlay/Android Auto), Pioneer, Jensen, Dual, Fahrenheit, New Soundstream)

For GM vehicles with LIN Bus, tap the GREEN (LIN Bus) wire to the GREEN/BLACK wire on the factory SWC.

For radios with wires (2 or 3 wire) connecons for SWC, use the female 3.5mm adapter.

(Boss, Power Acousk, select Sounstream)

For Kenwood and JVC radios with a BLUE/YELLOW wire connecon for SWC, tap to the BLUE/YELLOW wire

of the SWC adapter..

BLUE/YELLOW

Kenwood/JVC SWR

Kenwood/JVC

SWR

SWC CONNECTION:
