- Retains Steering Wheel Controls via built-in, pre-programmed interface.

- Retains VR Command (Voice Recognion) funcon on select OEM steering wheel controls to acvate

CarPlay and Android Auto compable devices.

- Also works on the new generaon Sony Radio with CarPlay funcon.

PRODUCT FEATURES:

SWR-A Module SWR-A Harness SWC Cable

PARTS INCLUDED:

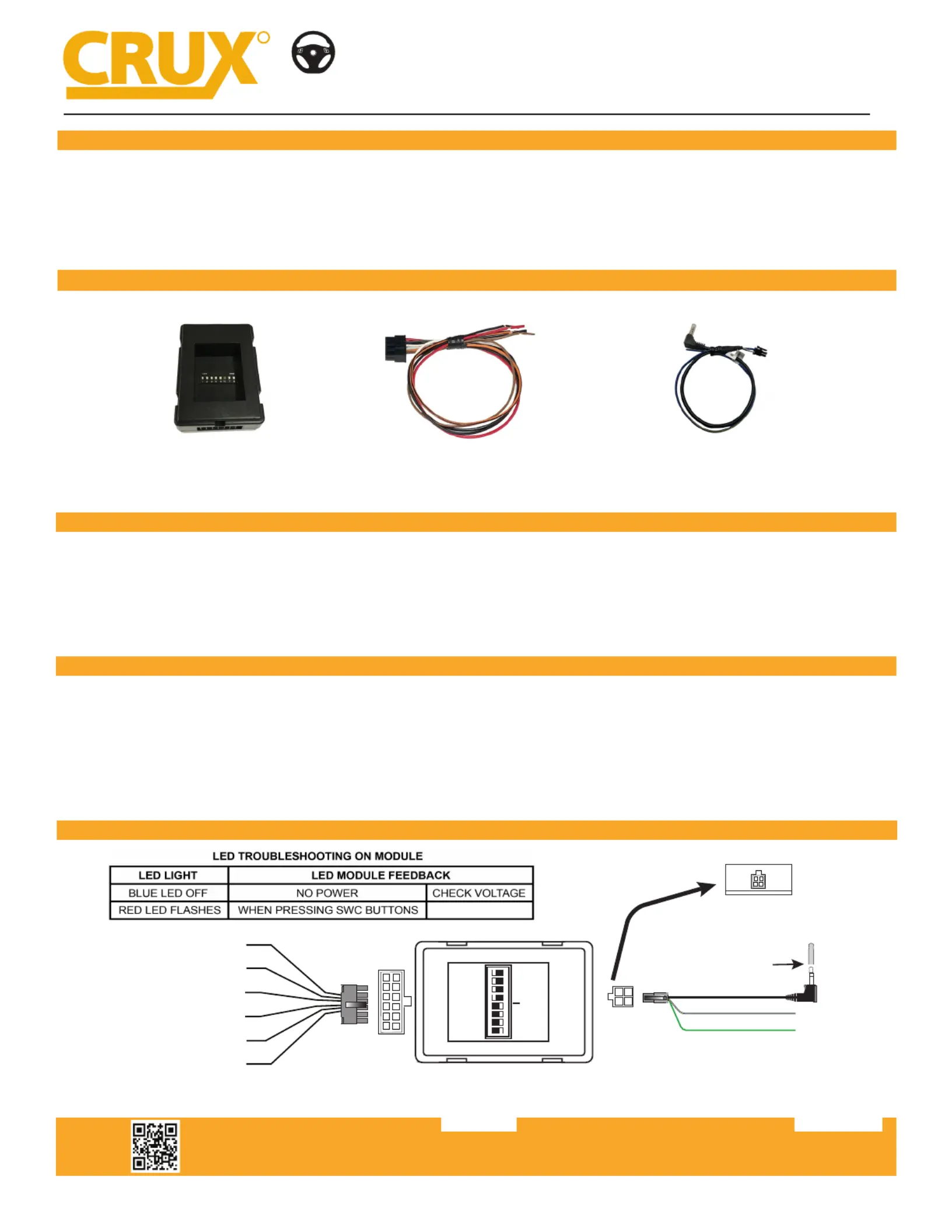

INSTALLATION DIAGRAM:

SUPPORTED RADIOS:

Alpine

Boss

Clarion

Dual

Fahrenheit

Jensen

JVC

Kenwood

Pioneer

Power Acousk

Sony

Soundstream

and Most o brand Radios

1 of 2

SWR-A

Steering Wheel Control Retention Interface

for Vehicles with Analog SWC

INTERFACING SOLUTIONS

SWC RETENTION

4-Pin

Connector

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW)

Insulate with tape

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See below for DIP switch settings.

LIN BUS (Green)

Ground

ACC

iBus

SWC 1

SWC 2

Black

Red/White

White/Red

Orange/Black

Yellow/Black

Black

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

SWC SIGNAL

RETURN

VEHICLE APPLICATIONS:

1991-2006 BMW

2003-2012 Ford

2006-2018 Hyundai

2003-2013 Honda

2006-2014 Kia

2003-2015 Mazda

2005-2012 Nissan

2007-2015 Subaru

2003-2018 Toyota

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.081022

2 of 2

SWR-A

Steering Wheel Control Retention Interface

for Vehicles with Analog SWC

INTERFACING SOLUTIONS

SWC RETENTION

AFTERMARKET RADIO DIP SWITCH SETTINGS:

Radio

Brand

DIP Switch

Alpine

New Sony

Pioneer

Old Sony

JVC

Clarion

Kenwood

Jensen

Dual

Power Acoustik

Fahrenheit

Soundstream

Boss

1 2 3 4

OFF OFF OFF OFF

OFF OFF ON

OFF OFF

OFF OFF ON

OFF ON

OFF

ONOFF ON

OFF

OFF OFF ON

OFF OFF OFF

OFF OFF ON

Most o brand radios ONOFF OFF ON

NOTE: For Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

VEHICLE WIRING CONNECTIONS AND DIP SWITCH SETTINGS:

For vehicle specic wiring diagram and connecons, please visit:

www.cruxinterfacing.com/wiring or click on the QR code.
