Side 1/3

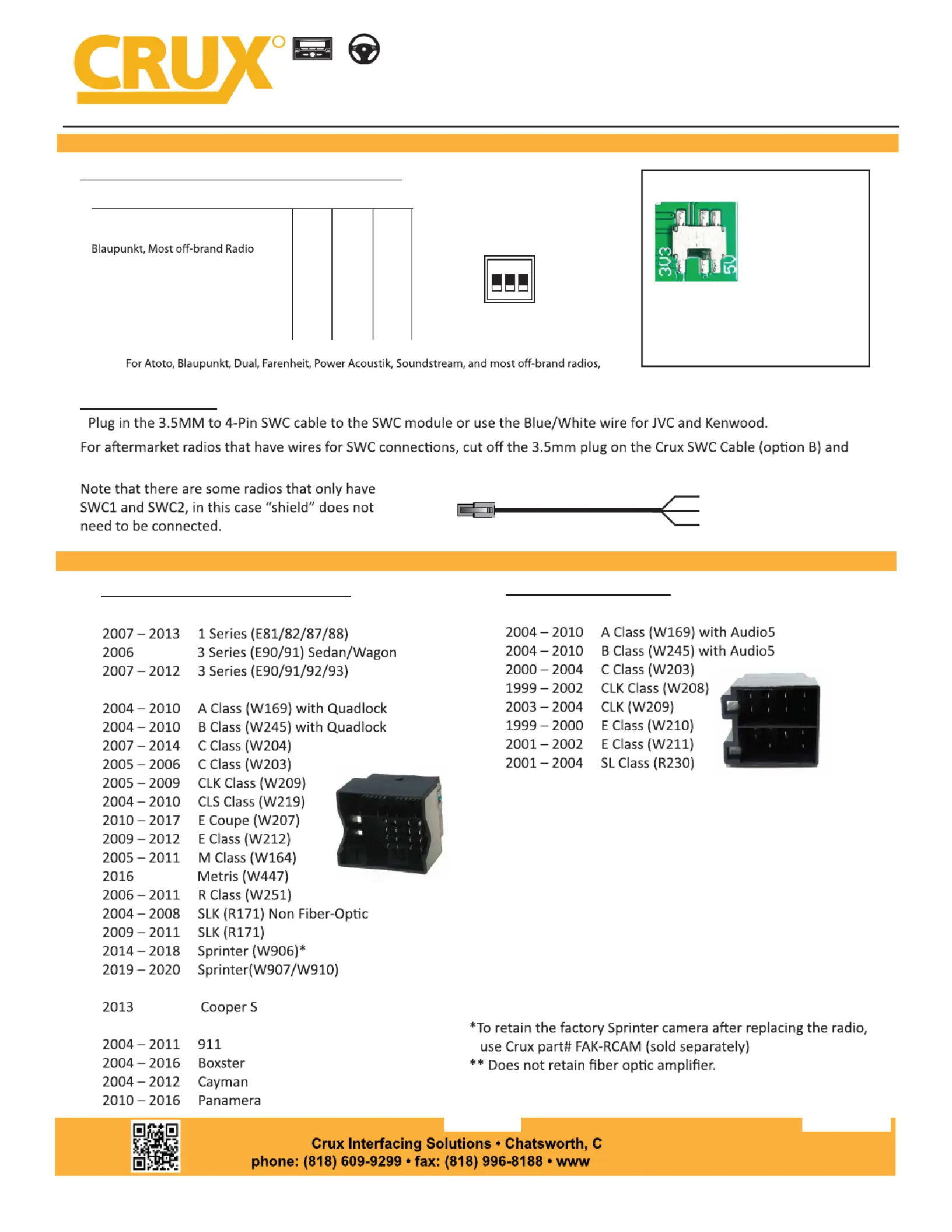

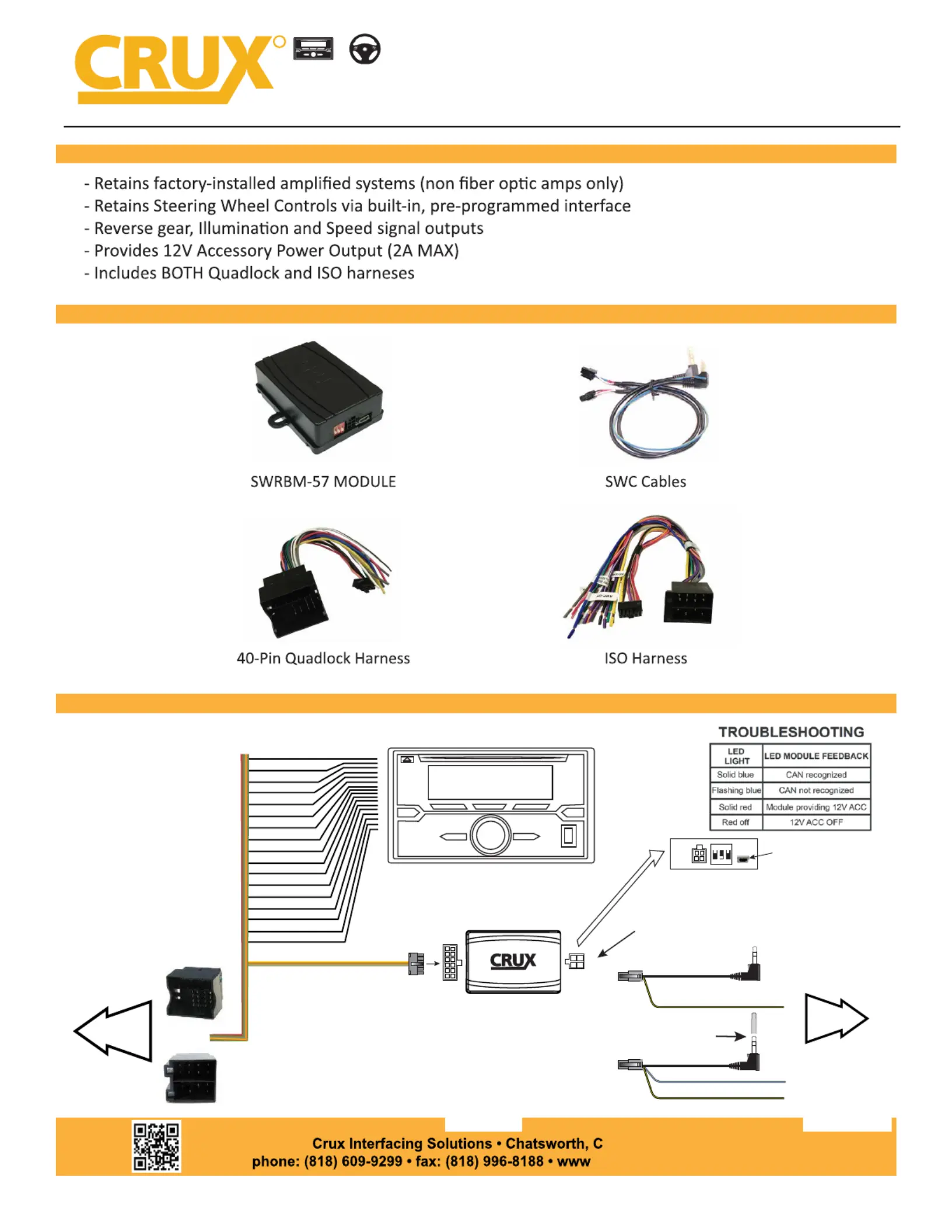

R I R A TAD O EPL CEMEN
S RE T TIONWC EN
+
R
INTERFACING SOLUTIONS
A 91311
.cruxinterfacing.com
SWRBM-57
Radio Replacement with Steering Wheel Control Retention for
1 of 3
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Illumination (+) Orange
Vehicle Speed Sense Purple/White
Reverse Red/White
Amp Turn on Blue
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
TO FACTORY
HARNESS
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
3.5MM SWC CABLES (Option A or B)
Insulate with
tape if not
being used
12-Pin
Connector
OR
Use the proper SWRBM-57 harness
that corresponds to the OEM
harness in the vehicle
40-pin Quadlock
17-pin Slide-Lock
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
1 2 3
ON
mini USB
Not Used
INTERFACING SOLUTIONS
rev. 10232024
TO
AFTERMARKET
RADIO
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
R I R A TAD O EPL CEMEN
S RE T TIONWC EN
+
R
INTERFACING SOLUTIONS
A 91311
.cruxinterfacing.com
SWRBM-57
Radio Replacement with Steering Wheel Control Retention for
Select BMW, Mercedes Benz and Porsche Vehicles
2 of 3
VEHICLE APPLICATIONS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 31 2
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr
3.5MM SWC CABLE
DIP SWITCH SETTINGS:
BMW
MERCEDES BENZ
MINI
PORSCHE**
MERCEDES BENZ
TYPE A: 40 Pin Quadlock Connector
TYPE B: ISO Connectors
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
SWC Troubleshoot option
Located internally
Need to take plastic
Casing o module
• If Steering Wheel Controls don’t
work or work properly please switch
internal dip switch from 3v3 to 5v
as shown in picture above.
rev. 10232024
