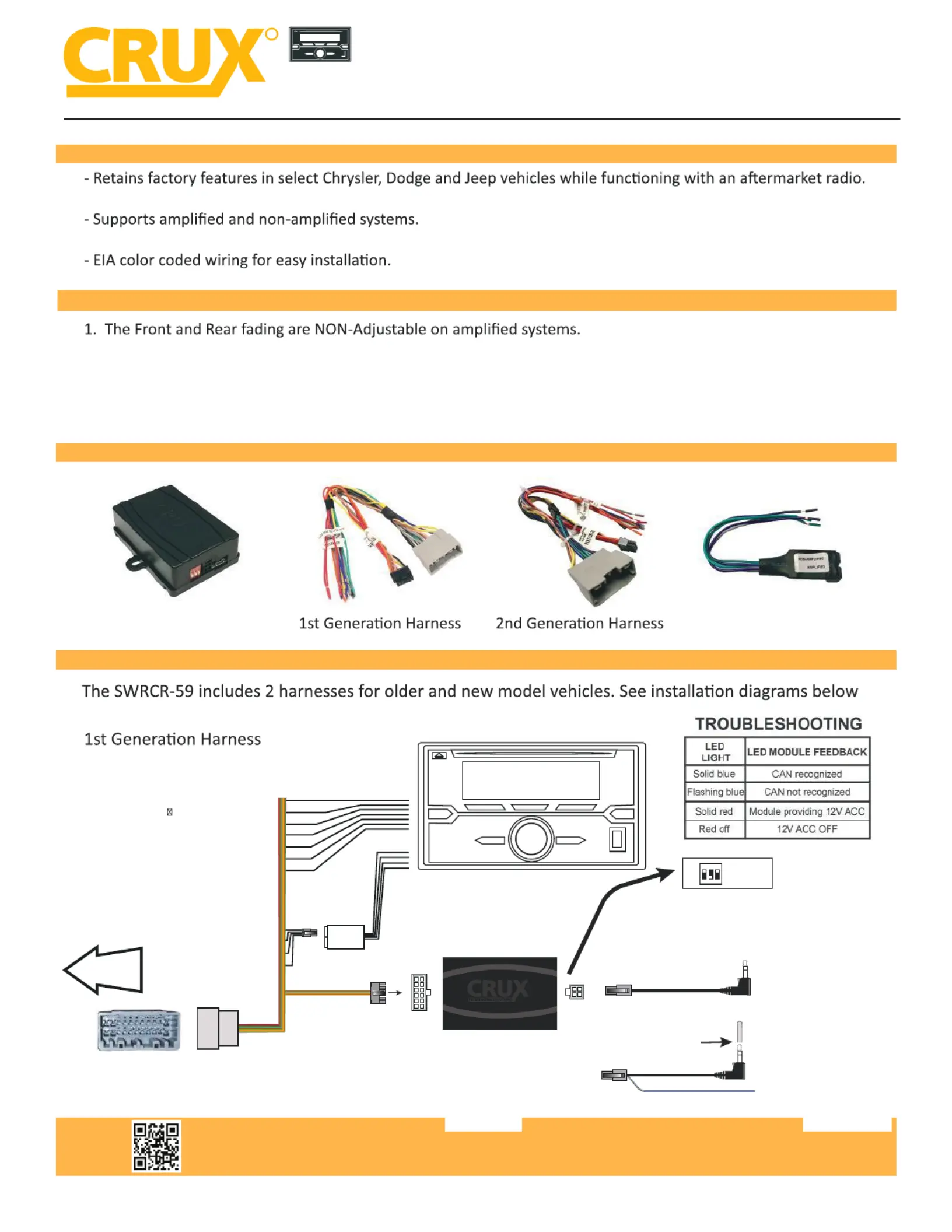

Side 1/3
RAD REPLA TIO CEMEN
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050223
SWRCR-59
Radio Replacement with SWC Retention for
CHRYSLER, DODGE and JEEP Vehicles
1 of 3
PRODUCT FEATURES:
NOTES:
PARTS INCLUDED:
- Retains Steering Wheel Controls via built-in, pre-programmed interface.
- Provides reverse trigger for rear view camera.
2. Also supports radio replacement in vehicles with 4.3” and 8.4” color screens.
3. Does not retaind Uconnect.
SWRCR-59 MODULE Audio Filter
INSTALLATION DIAGRAM:
for each harness.
12-Pin Black
Connector
First Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
1 2 3
ON
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
AFTERMARKET
RADIO
VSS (Vehicle Speed Sense) Pink
Illumina on (+) Orange
Power A enna/Amp Turn on Blue/ Whitent
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See page 2 for
speaker wire
connections
Audio
Filter
To aftermarket
radio SWC wire
or 3.5mm port
TO FACTORY
HARNESS
4. If vehicle is not equipped with Steering Wheel Controls use part# SOOCR-26
5. If you require a dash kit with SWC interface use part# DKCR-59K
RAD REPLA TIO CEMEN
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.050223
SWRCR-59
Radio Replacement with SWC Retention for
CHRYSLER, DODGE and JEEP Vehicles

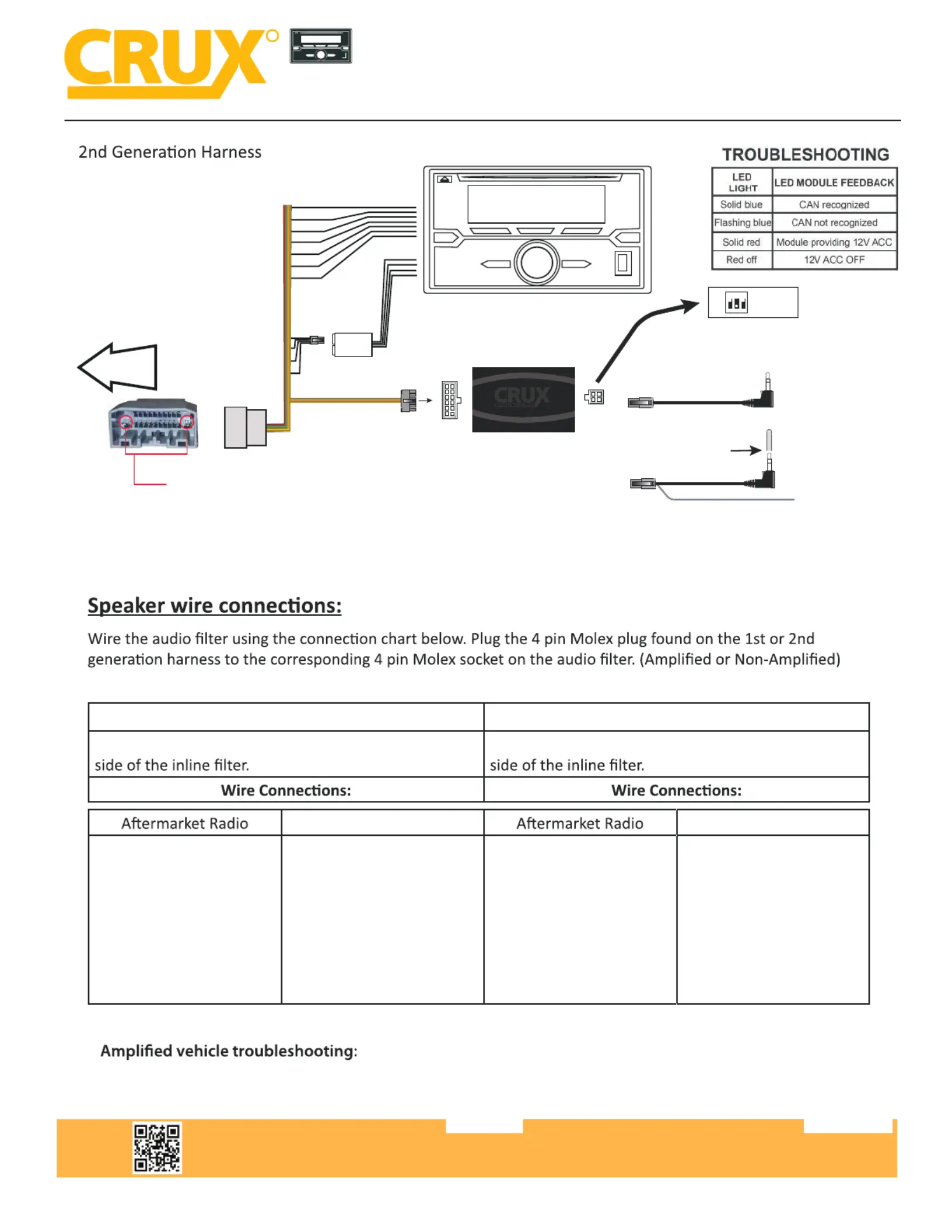

2 of 3
12-Pin Black
Connector
Second Generation Harness
*Does not supply Reverse Trigger on Manual Transmissions. Reverse trigger wire from the
aftermarket radio and/or camera power must be connected to factory reverse light wire instead.
4-Pin
Connector
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW Insulate with tape
if not being used
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
1 2 3
ON
VSS (Vehicle Speed Sense) Pink
Illumina on (+) Orangeti
Power A enna/Amp Turn on Blue/ Whitent
Reverse Trigger* Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
AMPLIFIED
NON AMPLIFIED
See below for
speaker wire
connections Audio
Filter
To aftermarket
radio SWC wire
or 3.5mm port
NON AMPLIFIED SYSTEMS AMPLIFIED SYSTEMS
Plug the 4-pin Molex connector to the NON-AMPLIFIED Plug the 4-pin Molex connector to the AMPLIFIED
SWRCR-59 Harness SWRCR-59 Harness
White
White/Black
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
White
White/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
White
kcalB/etihW
yarG
kcalB/yarG
Green
Green/Black
Purple
Purple/Black
Green
Green/Black
Purple
Purple/Black
Not Used
Not Used
Not Used
Not Used
Amplied vehicle troubleshooting: Bluetooth may be inaudible when installing select aftermarket radios.
Therefore hook the rear SWRCR-59 speakers to the aftermarket radio front speakers.
AFTERMARKET
RADIO
TO FACTORY
HARNESS
NOTE: Constant & Ground Pins are isolated.
