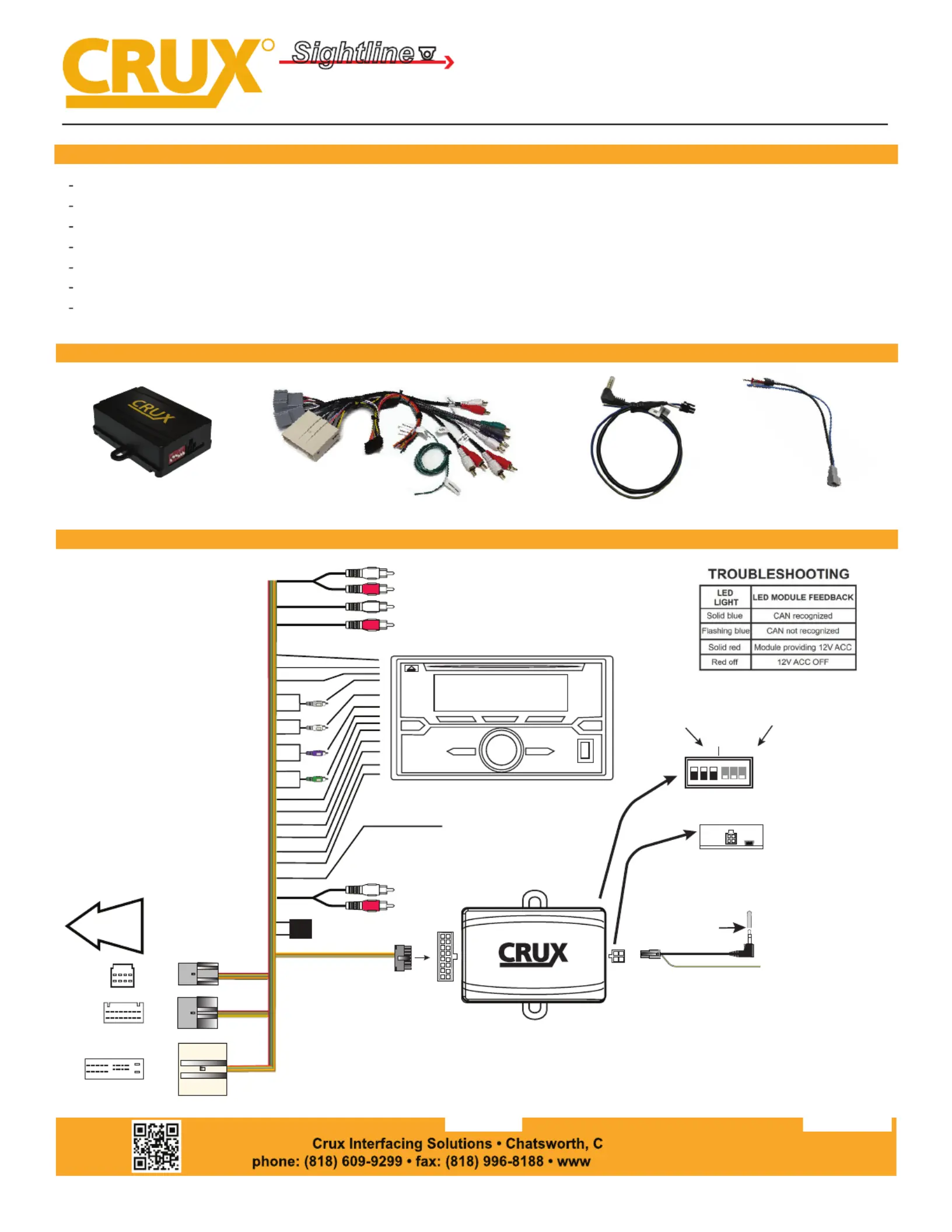

SWRFD-60
Radio Replacement Interface with Steering Wheel
Control Retention for FORD, LINCOLN & MERCURY
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322
1 of 3
- Retains factory features with an aermarket radio.
- Retains factory-installed Subwoofer.
- Retains Steering Wheel Controls via built-in, pre-programmed interface
- With navigaon outputs (Reverse gear, Illuminaon and Speed signal).
- Provides Accessory Power (2A MAX).
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CAN SWC Module Analog SWC Module SWRFD-60 Harness SWC Cables
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination Orange
Reverse Gear Red/White
Vehicle Speed Signal Red/Black
Subwoofer Amp Turn-on Blue/White
Antenna Turn-on Blue
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Subwoofer
Aux Input
24-Pin
Plug
16-Pin
Plug
8-Pin
Plug
TO FACTORY
HARNESS
12-Pin
Connector
SWC TYPE
Subwoofer
Converter
Module
ANALOG SWC
MODULE
(ARC-001)
Brown
Input A
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin
port on the CAN or ANALOG SWC module.
See “DIP SWITCH SETTINGS” section on page 2.
mini USB
Not Used
CRUX
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
Insulate with
tape if not
being used
Pink
Input B
RADIO TYPE
(See Chart)
FORD SWC
(See Radio Type)
CAN SWC
MODULE
(CR-5500)
12-Pin
Connector
4-Pin
Connector
1 2 3
ON
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
FORD TYPE
SWC SETTING
(See Radio Type)
AFTERMARKET
RADIO SELECTOR
(See Chart)
OR
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.072322

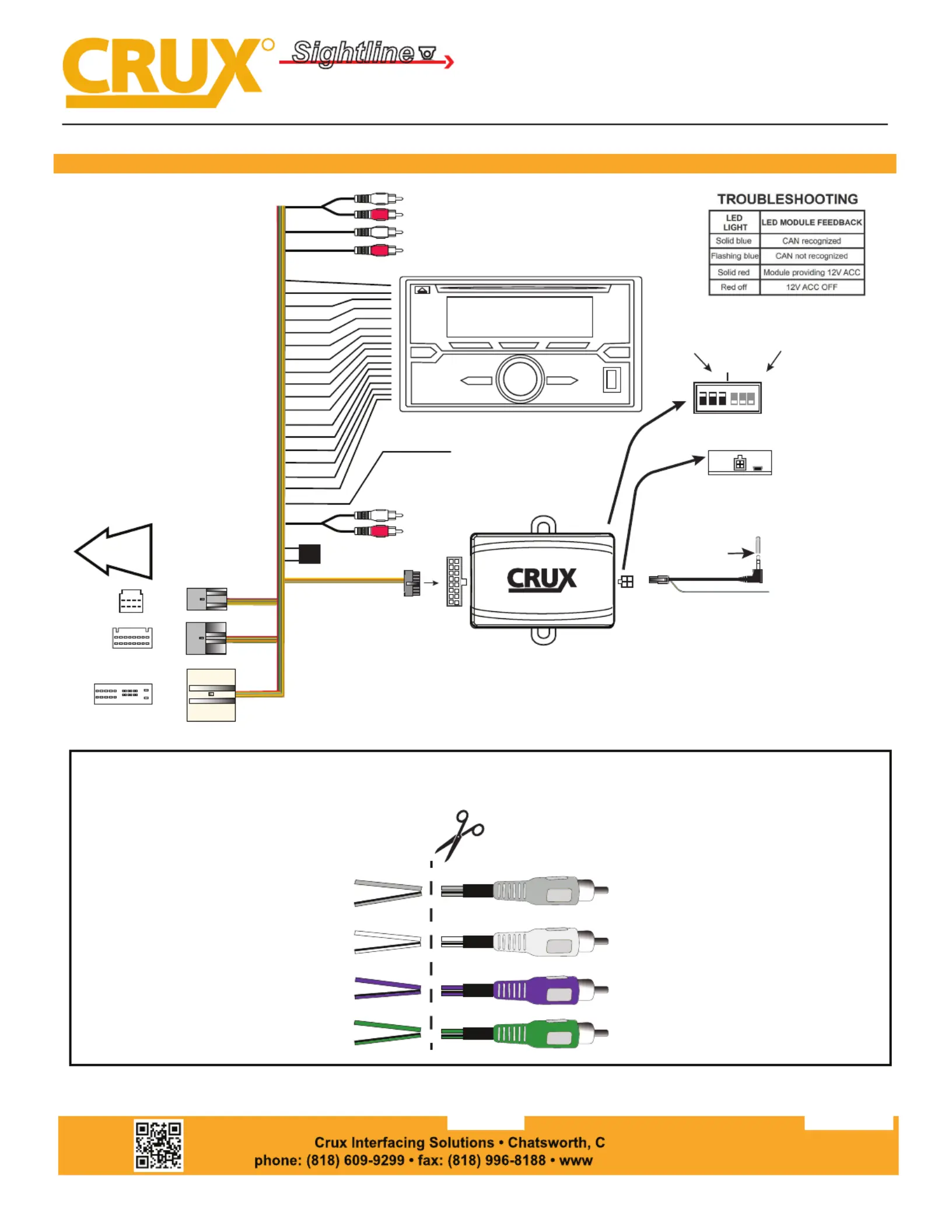

2 of 3
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
DIP SWITCH SETTINGS:
SWRFD-60
Radio Replacement Interface with Steering Wheel
Control Retention for FORD, LINCOLN & MERCURY
HOW TO DETERMINE IF THE VEHICLE HAS ANALOG SWC
Vehicles with Analog Steering Wheel Control (SWC) signal will have wires
populated on pins 18 and 19 and line up to WHITE and BROWN wires on
the 24-Pin Crux connector. Plug the Crux 24-pin connector to the factory
radio connector and trace the Brown and White wires to the factory side.
If there is only 1 wire present then it is a CAN SWC.
ANALOG CONNECTION:
WIRE VIEW
WHITE BROWN
Crux 24-Pin Connector
Once it is determined what type of SWC is on the vehicle (CAN or Analog), plug in the proper SWC cable for the
radio that is being used to the CAN or Analog SWC module. Set the DIP switches following the chart below:
RADIO BRAND: DIP: 1 2 3
Atoto, Blaupunkt, Dual, Fahrenheit
Jensen, Pioneer, Power Acoustik
Soundstream & most o-brand radios
Alpine
Clarion
Kenwood
JVC
Sony, Boss
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
1 2 3
ON
CAN SWC
AFTERMARKET
RADIO SELECTOR
1 2 3
ON
ANALOG SWC
AFTERMARKET
RADIO SELECTOR 1 2 3
ON
1 2 3
ON
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
Insulate with
tape if not
being used
1 2 3
ON
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
FORD TYPE
SWC SETTING
AFTERMARKET
RADIO SELECTOR
CAN SWC Module
Analog SWC Module
3.5MM SWC CABLE
Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using.
OPTION A is used for ALPINE, CLARION, (JVC and KENWOOD units will use the Blue/Yellow wire).
OPTION B is used for Atoto, BOSS, DUAL, FAHRENHEIT, JENSEN, POWER ACOUSTIK, PIONEER, SONY,
SOUNDSTREAM and most o-brand radios.
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acousk, Soundstream, and most o-brand radios,
check the aermarket radio’s manual to see if the SWC buons need to be programmed.
OR
