SWRFD-60B
Radio Replacement with Steering Wheel Control Retention for
Select Ford and Lincoln Vehicles
1 of 2
PRODUCT FEATURES:
PARTS INCLUDED:
- Retains factory features in select Ford and Lincoln vehicles.
- Retains steering wheel controls.
- Retains factory Aux input.
- Provides accessory power (2A max).
SWRFD-60B MODULE SWRFD-60B HARNESS SWC Cables

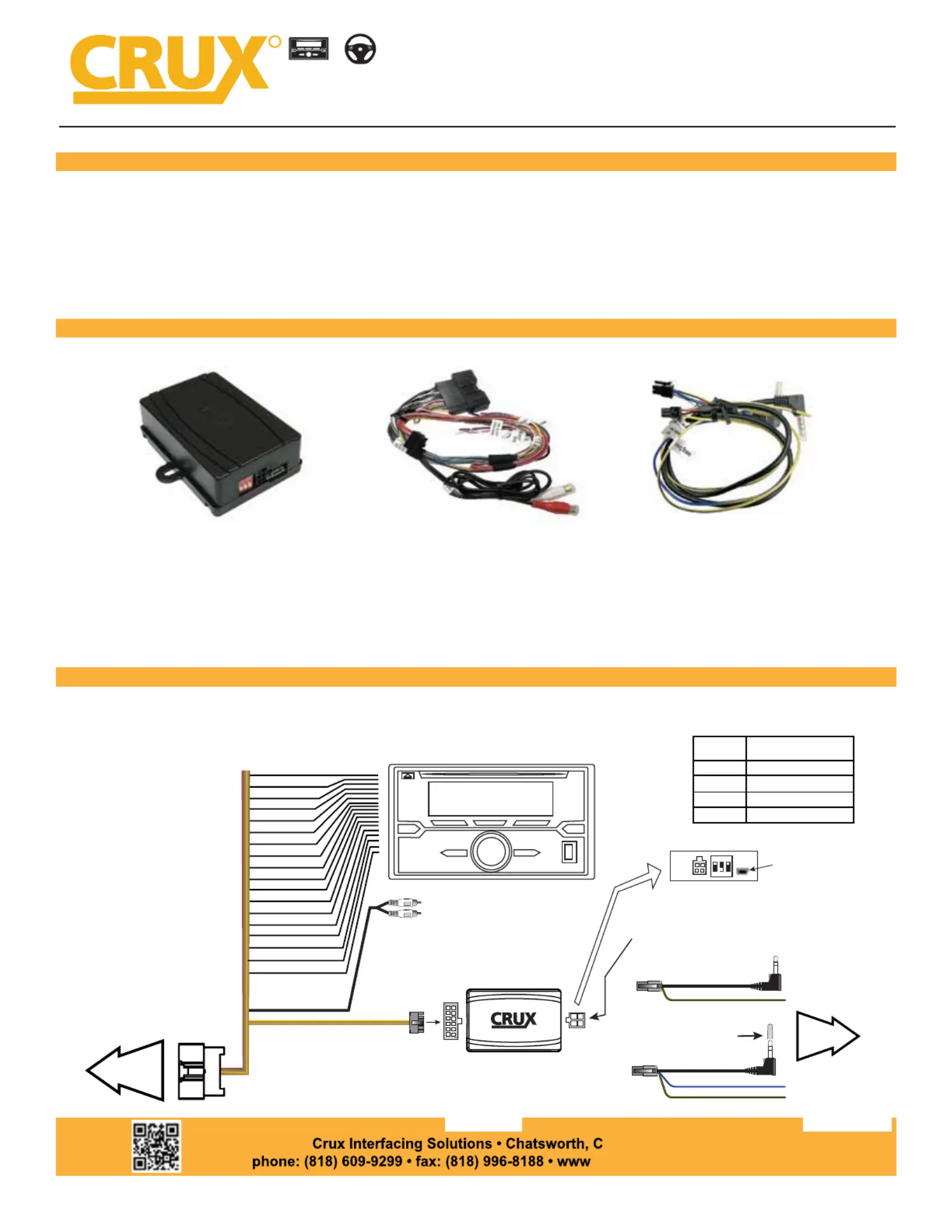

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
Illumination (+) Orange
Vehicle Speed Sense Red/Black
Power Antenna Blue/White
+12V Constant Yellow
+12V ACC Red
Ground Black
Reverse Gear Red/White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Aux Detect White/Red
(Connect to Ground)
Aux Input Retention
Red/White RCAs
TO FACTORY
HARNESS
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW FOR JVC & KENWOOD
3.5MM SWC CABLES (Option A or B)
Insulate with
tape if not
being used
12-Pin
Connector
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
1 2 3
ON mini USB
Not Used
INT ERFAC ING SOL UT IONS
To Aux Input
RAD IO R EP LAC EME NT
SWC R ETE NTI ON
+
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.
rev.
rev.
rev.rev.
040124
SWRFD-60B
Radio Replacement with Steering Wheel Control Retention for
Select Ford and Lincoln Vehicles
2 of 2
VEHICLE APPLICATIONS:

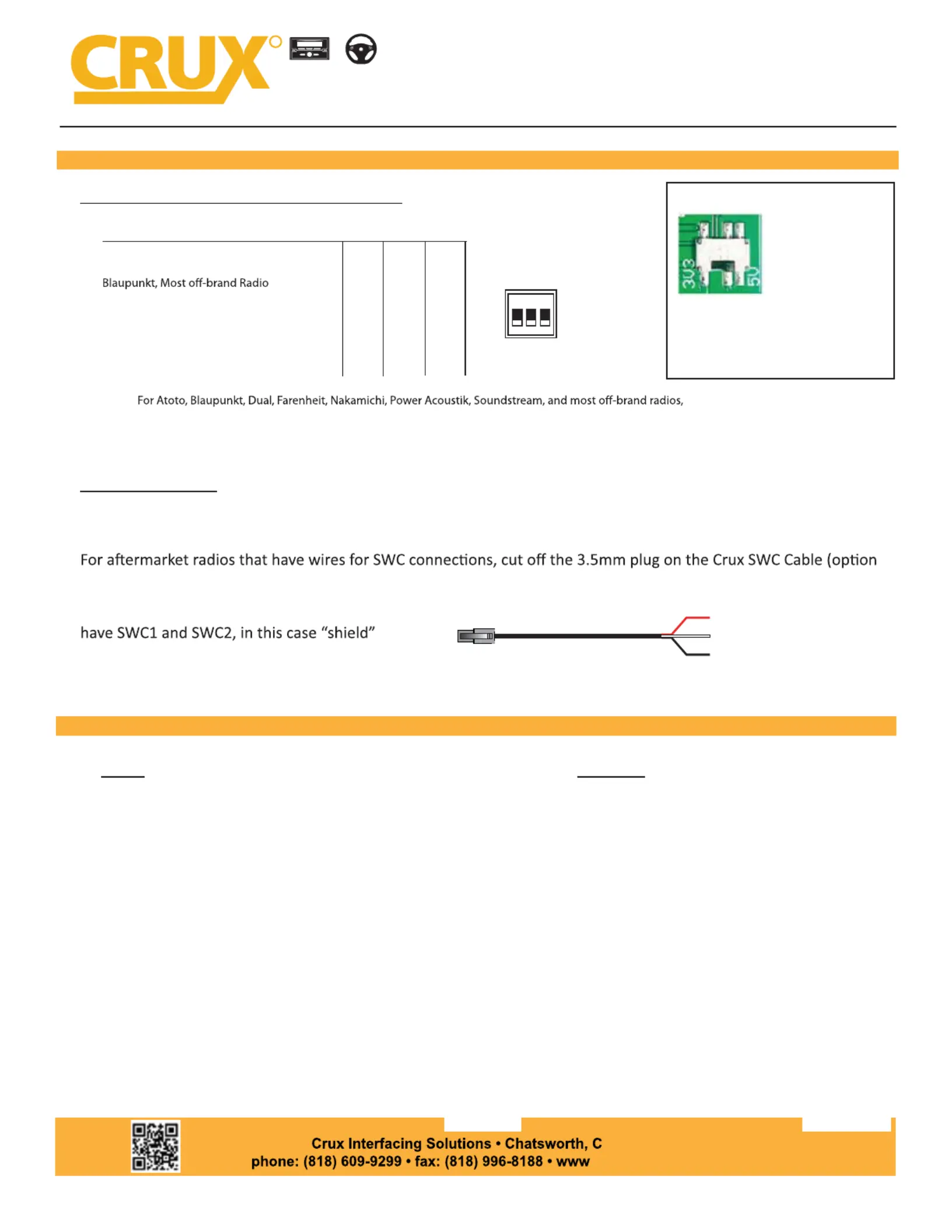

AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Blaupunkt, Most o-brand Radio
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Nakamichi, Power Acoustik, Soundstream, and most o-brand radios,
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module or use the Blue/White wire for JVC and Kenwood.
DIP SWITCH SETTINGS:
2011 – 2014 Edge
2013 – 2019 Escape
2011 – 2015 Explorer
2013 – 20 F-Series Trucks (with 4.2” screen)22
2014 – 2019 Fiesta (without MyFord Touch)
2012 – 2014 Focus (without MyFord Touch)
2013 Fusion– 2015
2013 – 2015 Taurus
201 – 201 5 8 150/250/350
2011 – 2012 MKX
NOTE:
Does not retain Sync.
FORD LINCOLN
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon
B) and connect the SWC wires as follows:
Note that there are some radios that only
have SWC1 and SWC2, in this case “shield”
does not need to be connected.
201 9– 2023 Ranger
2013 – 201 Transit Connect (with AM/FM/CD Sync radio)8
201 – 20 F-Series Trucks (with screen)7 19 out
