RAD IO R EP LAC EME NT

SWC R ETE NTI ON

INTERFACING SOLUTIONS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.072322

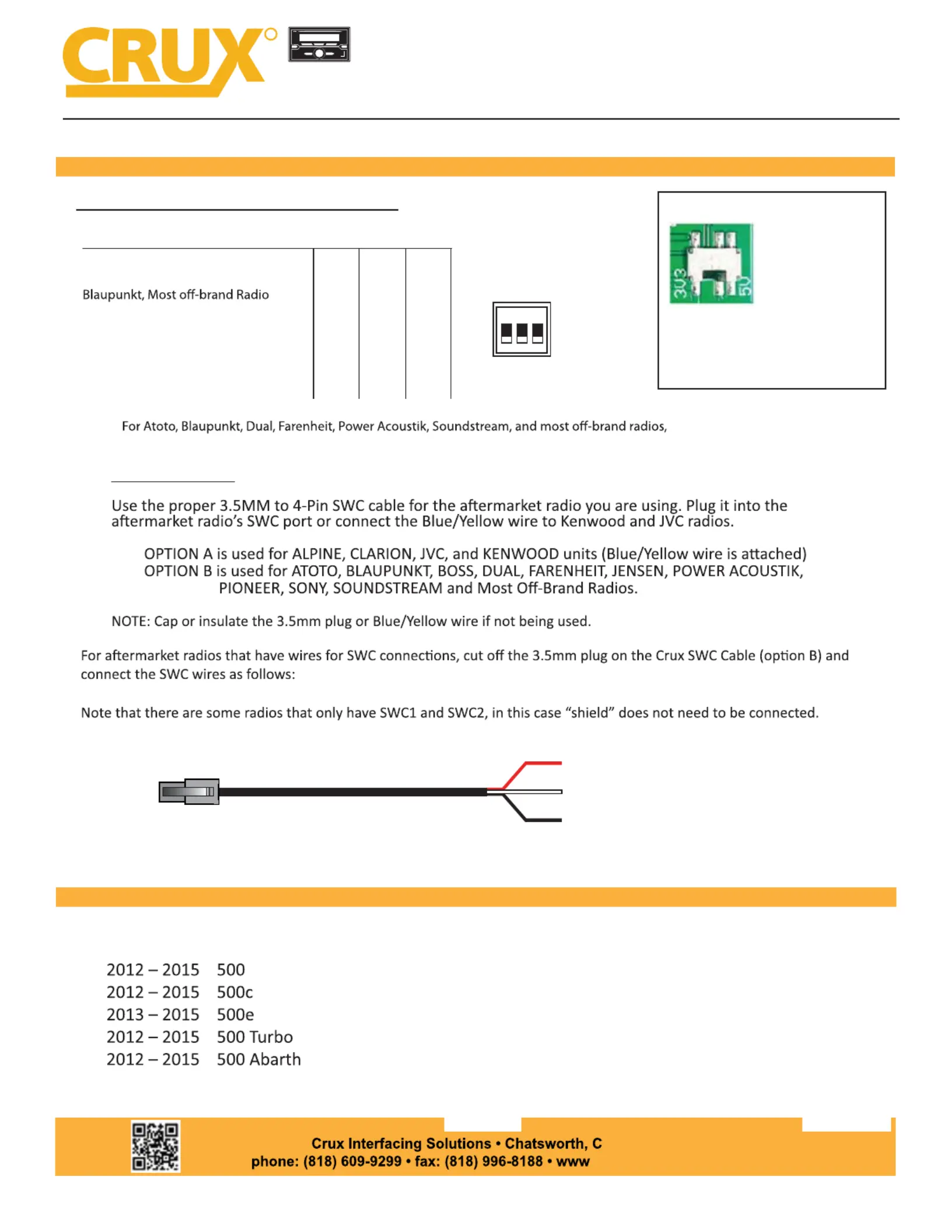

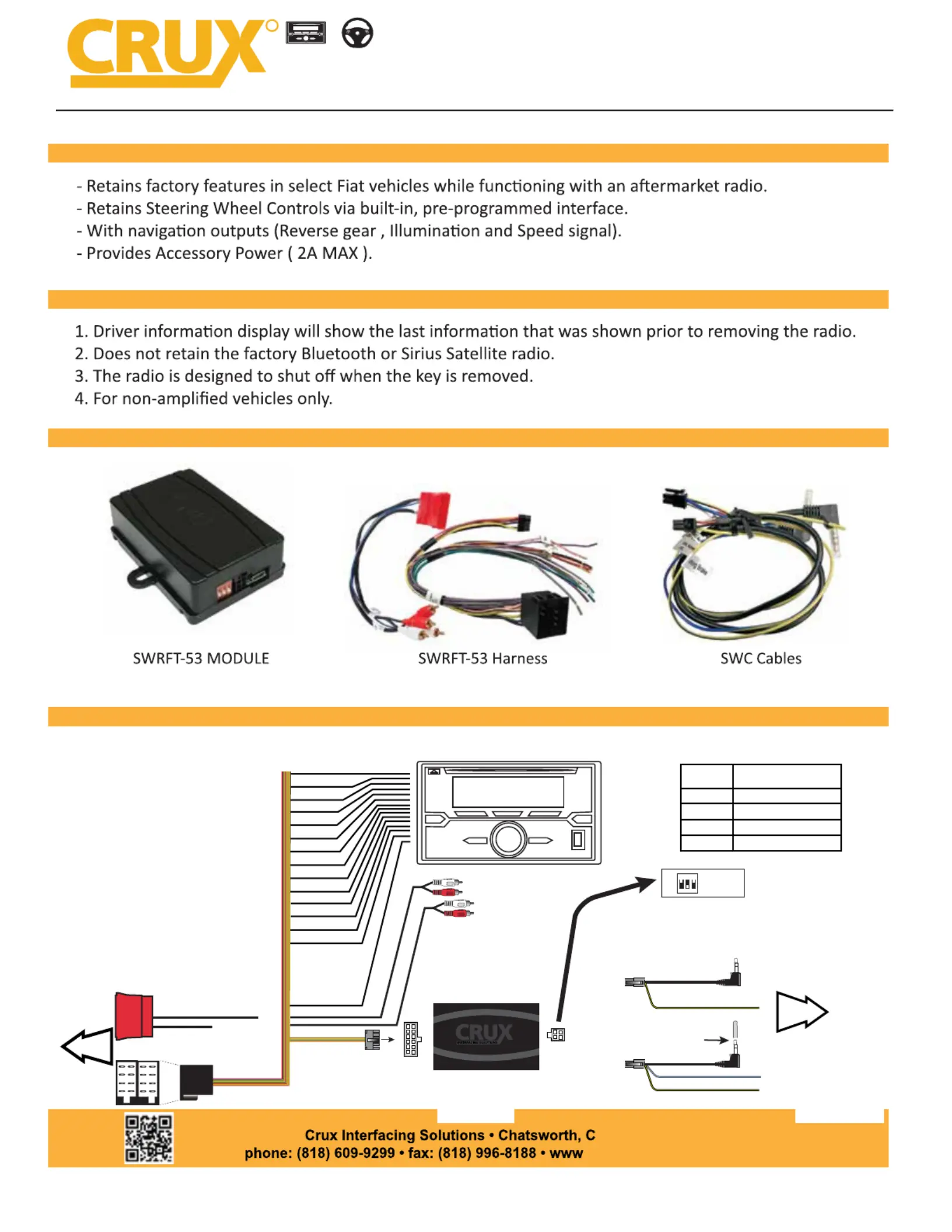

SWRFT-53

Radio Replacement with Steering Wheel Retention

for select Fiat Vehicles

1 of 2

PRODUCT FEATURES:

PARTS INCLUDED:

- Retains factory features in select Fiat vehicles while funconing with an aermarket radio.

- Retains Steering Wheel Controls via built-in, pre-programmed interface.

- With navigaon outputs (Reverse gear , Illuminaon and Speed signal).

- Provides Accessory Power ( 2A MAX ).

SWRFT-53 MODULE SWRFT-53 Harness SWC Cables

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

illumination (+) Orange

Reverse Gear Red/White

Vehicle Speed Sense Purple/White

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

TO FACTORY

HARNESS

12-Pin Black

Connector

1 2 3

4-Pin

Connector

Option A:

Option B:

Cap or insulate if

not being used

BLUE / YELLOW

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

To aftermarket

Radio SWC Port

For Kenwood & JVC

NOTES:

1. Driver informaon display will show the last informaon that was shown prior to removing the radio.

2. Does not retain the factory Bluetooth or Sirius Satellite radio.

3. The radio is designed to shut o when the key is removed.

4. For non-amplied vehicles only.

RADIO REPLACEMENT

INTERFACING SOLUTIONS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.072322

SWRFT-53

Radio Replacement with Steering Wheel Retention

for select Fiat Vehicles

2 of 2

FIAT

2012 – 2015 500

2012 – 2015 500c

2013 – 2015 500e

2012 – 2015 500 Turbo

2012 – 2015 500 Abarth

VEHICLE APPLICATIONS:

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3

Atoto, Dual, Fahrenheit, Jensen

Pioneer, Power Acoustik, Soundstream

Blaupunkt, Most o-brand Radio

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

OFF ON ON

OFF OFF OFF

ON ON OFF

ON ON ON

ON OFF ON

ON OFF OFF

OFF ON OFF

SWC MODULE

DIP SWITCH

1 2 3

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

4-PIN SWC CABLE

Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using. Plug it into the

aermarket radio’s SWC port or connect the Blue/Yellow wire to Kenwood and JVC radios.

OPTION A is used for ALPINE, CLARION, JVC, and KENWOOD units (Blue/Yellow wire is aached)

OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,

PIONEER, SONY, SOUNDSTREAM and Most O-Brand Radios.

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon B) and

connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
