Side 1/4
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0705231 of 4
R O P LA TADI RE CEM EN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:

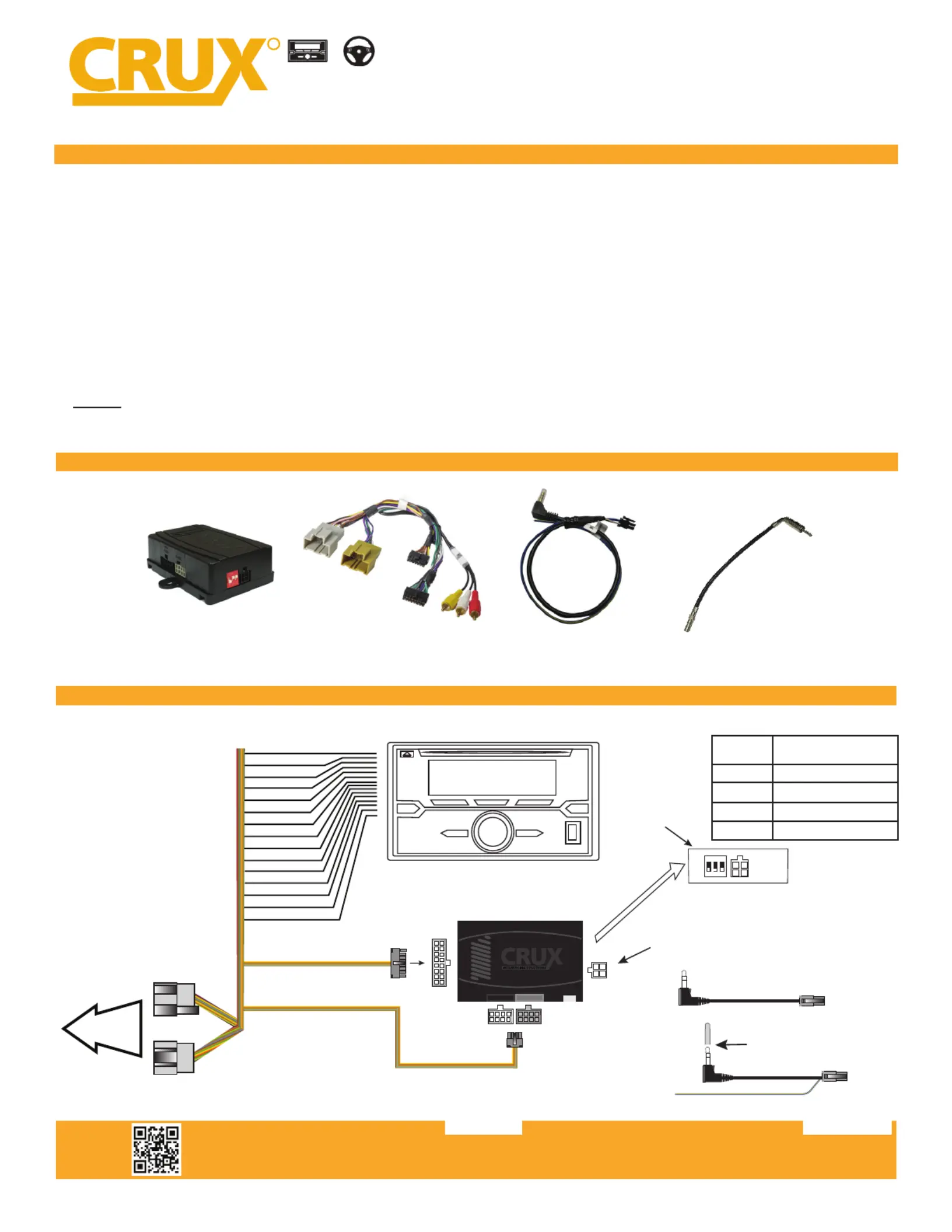

INSTALLATION DIAGRAM:
SWRGM-47 MODULE SWRGM-47 HARNESS SWC CABLES ANTENNA ADAPTER
AFTERMARKET
RADIO
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
Reverse Violet/White
Illumina on (+) Orangeti
Parking Brake Yellow/ Black
+12V Constant Yellow
+12V ACC Red
Ground Black
Right Front (+) G yra
Right Front (-) Gray/Black
Le Front (+) Whiteft
Le Front (-) White/Blackft
Right Rear (+) Violet
Right Rear (-) Violet/Black
Le Rear (+) Greenft
Le Rear (-) Green/Blackft
Option A:
Option B:
TO FACTORY
HARNESS
16-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your
radio. Plug in the selected 3.5MM SWC cable
to the 4-pin port on the module. See “DIP
SWITCH SETTINGS” section.
Insulate with tape
if not being used
Non Bose Bose
See page 2 for Audio
connection options
SWRGM-47
Radio Replacement Interface with Steering Wheel Control
Retention for Select 7” GM IOA & IOB Vehicles
NOTE:
Does not retain the factory backup camera on models that show the camera image on the rear-view mirror.
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
VSS Red/ Black
- Retains factory features in select GM IOA & IOB vehicles while functioning with an aftermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- iPhone Voice Recognition (VR) feature from SWC on select radios.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRC Track, Seek.P
- Supports Non Amplified Systems
- Retains factory OnStar
®
- Retains chime functions.
- Retains factory backup camera.*
- Retains factory backup sensors / park assist system.
- EIA color coded wiring for easy installation.
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.070523
SWRGM-47
2 of 4
R O P LA TADI RE CEM EN
SW E T IONC R ENT
+
R
INTERFACING SOLUTIONS

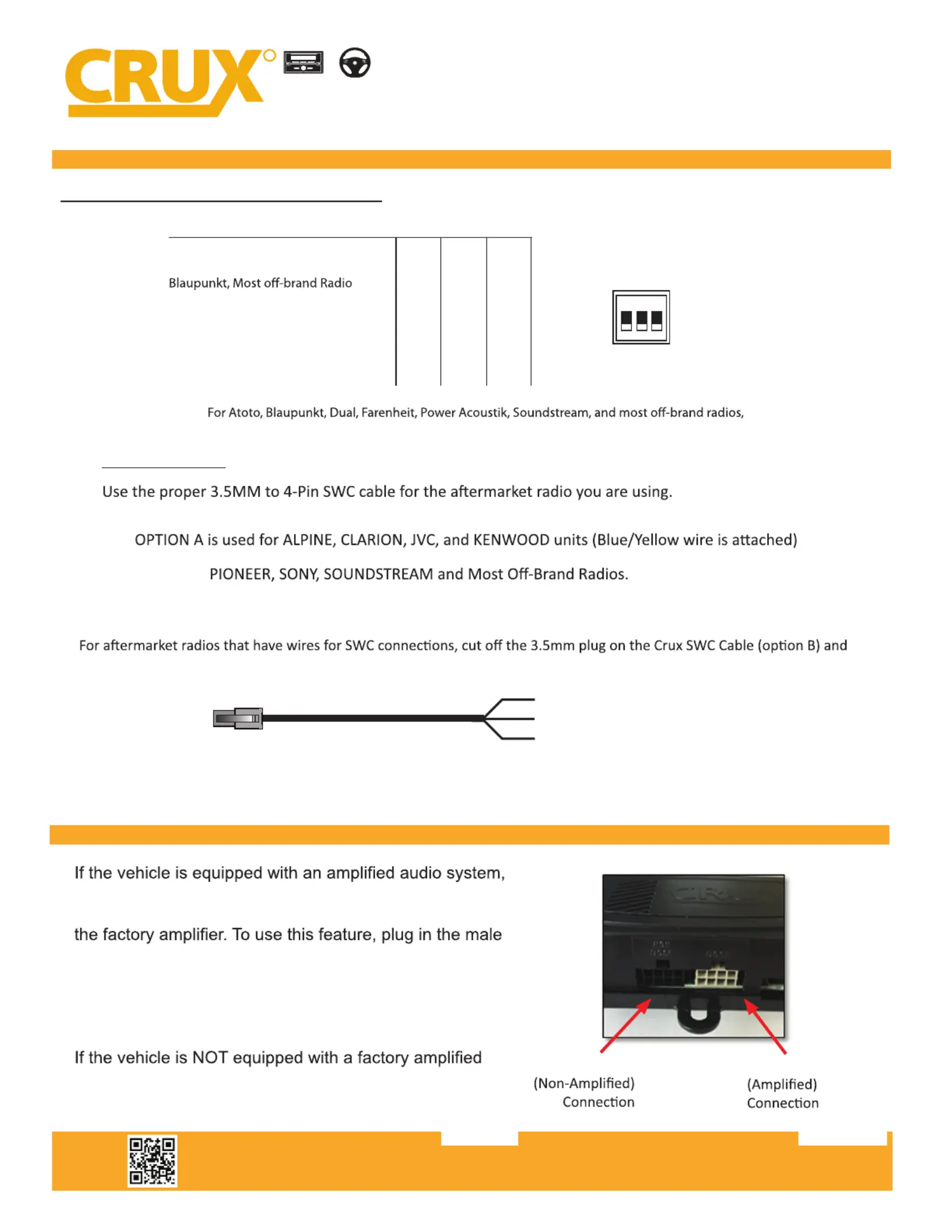

DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
SELECTING THE AUDIO SYSTEM:
the SWRGM-47 has a built-in audio level adaptor that
outputs the proper audio level from the aftermarket radio to
8-pin connector on the SWRGM-47 harness to the GRAY
female 8-pin connector on the SWRGM-47 module. The
module is also labeled “Bose” and “Non Bose” to avoid
confusion. (see picture below)
system, plug in the male 8-pin connector to the BLACK
female 8-pin on the SWRGM-47 module.
BOSE
NON BOSE
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
Radio Replacement Interface with Steering Wheel Control
Retention for Select 7” GM IOA & IOB Vehicles
