CRUX SWRGM-48 Manual

CRUX Ikke kategoriseret SWRGM-48

Læs gratis den danske manual til CRUX SWRGM-48 (6 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 17 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 9 anmeldelser. Har du et spørgsmål om CRUX SWRGM-48, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/6

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.09282021

1 of 6

RAD IO RE PLAC E ME NT

SWC RE TE NTIO N

INTERFACING SOLUTIONS

- Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Voice Recognition Command from factory SWC.

- Supports Bose, non-Bose and Y-91 audio systems.

- Retains chime functions.

- Built-in chime volume adjustment.

- EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

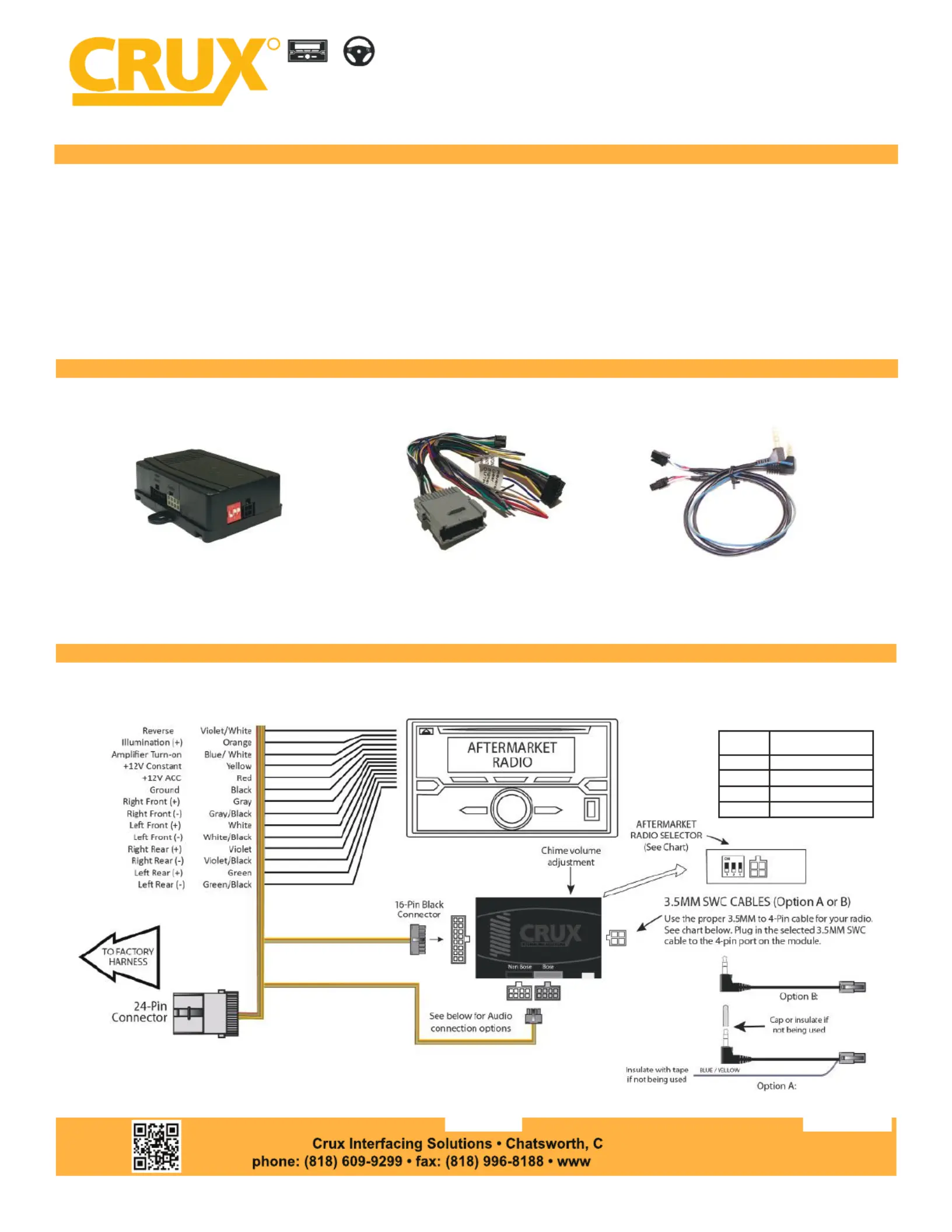

INSTALLATION DIAGRAM:

SWRGM-48 MODULE SWRGM-48 HARNESS SWC CABLE

SWRGM-48

Radio Replacement Interface with Steering Wheel Control

Retention for select GM Class II Vehicles

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

SWRGM-48

Radio Replacement Interface with Steering Wheel Control

Retention for select GM Class II Vehicles

2 of 6

RAD IO RE PLAC E ME NT

SWC RE TE NTIO N

INTERFACING SOLUTIONS

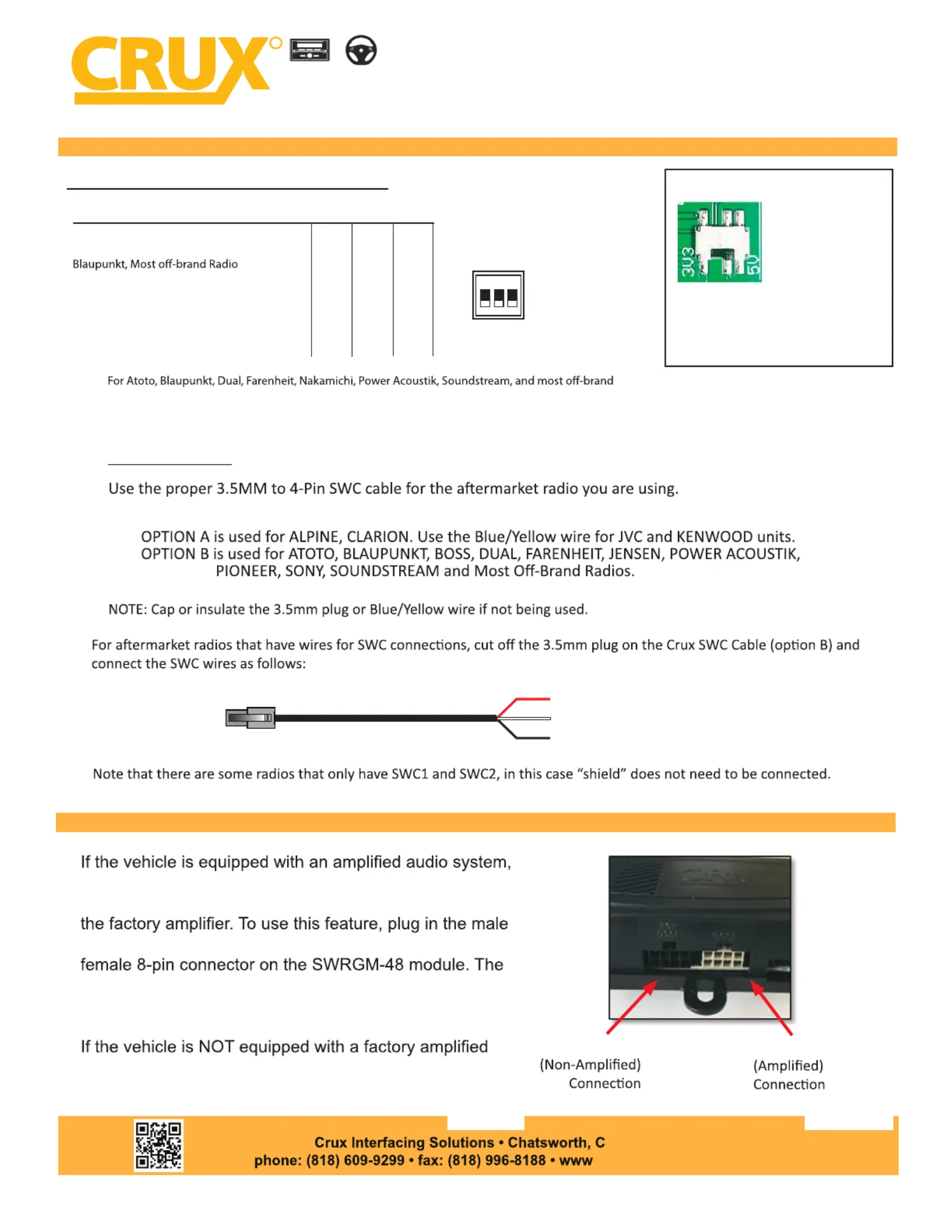

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3

Atoto, Dual, Fahrenheit, Jensen, Nakamichi,

Pioneer, Power Acoustik, Soundstream

Blaupunkt, Most o-brand Radio

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony (with CarPlay)

OFF ON ON

OFF OFF OFF

ON ON OFF

ON ON ON

ON OFF ON

ON OFF OFF

OFF ON OFF

SWC MODULE

DIP SWITCH

1 2 3

NOTE: For Atoto, Blaupunkt, Dual, Farenheit, Nakamichi, Power Acoustik, Soundstream, and most o-brand radios,

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

4-PIN SWC CABLE

Use the proper 3.5MM to 4-Pin SWC cable for the aermarket radio you are using.

OPTION A is used for ALPINE, CLARION. Use the Blue/Yellow wire for JVC and KENWOOD units.

OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,

PIONEER, SONY, SOUNDSTREAM and Most O-Brand Radios.

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

SELECTING THE AUDIO SYSTEM:

If the vehicle is equipped with an amplied audio system,

the SWRGM-48 has a built-in audio level adaptor that

outputs the proper audio level from the aftermarket radio to

the factory amplier. To use this feature, plug in the male

8-pin connector on the SWRGM-48 harness to the GRAY

female 8-pin connector on the SWRGM-48 module. The

module is also labeled “Bose” and “Non Bose” to avoid

confusion. (see picture below)

If the vehicle is NOT equipped with a factory amplied

system, plug in the male 8-pin connector to the BLACK

female 8-pin on the SWRGM-48 module.

BOSE

(Amplied)

Connecon

NON BOSE

(Non-Amplied)

Connecon

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

For aermarket radios that have wires for SWC connecons, cut o the 3.5mm plug on the Crux SWC Cable (opon B) and

connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.

rev.09282021
