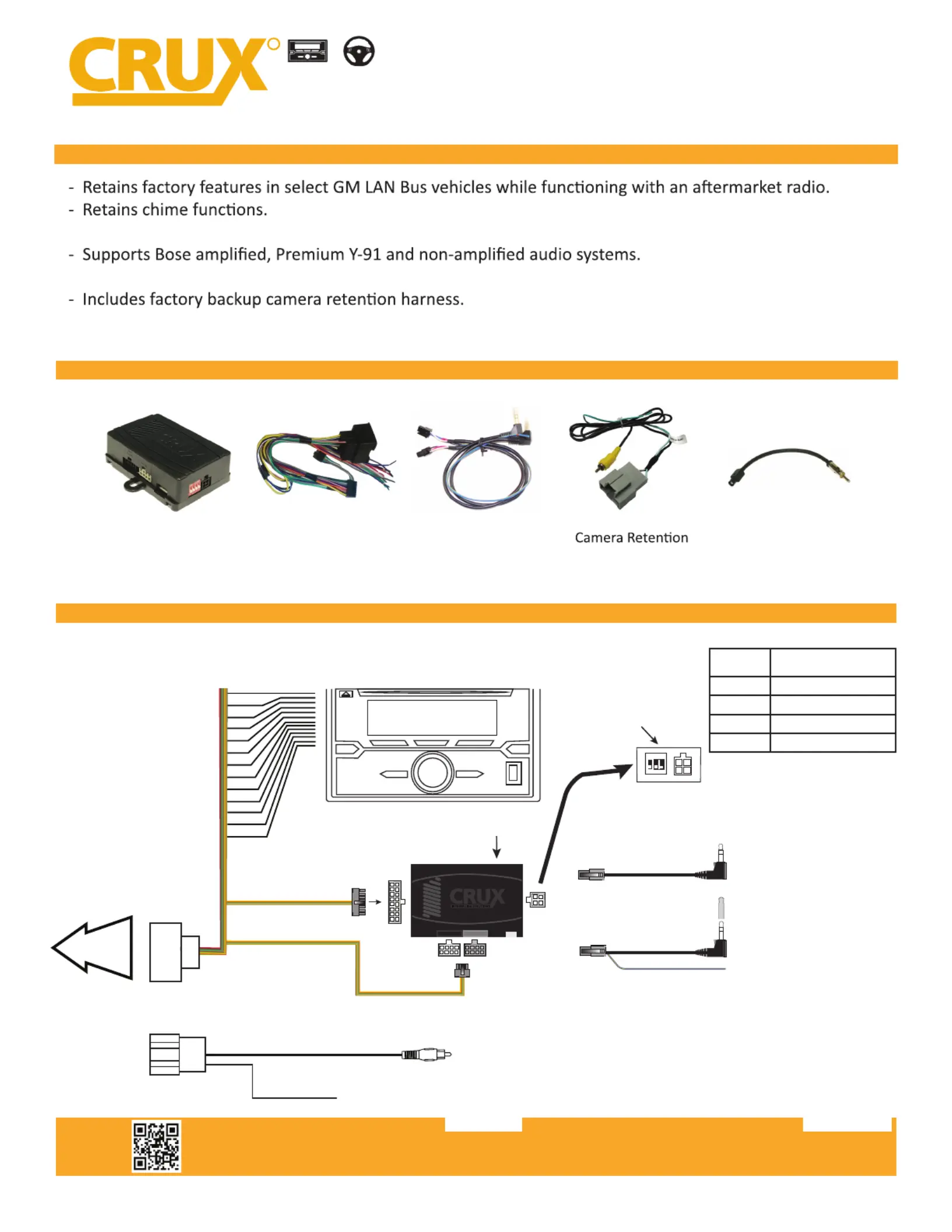

SWRGM-49N Module SWRGM-49N Harness SWC Cables

Harness

Antenna Adapter

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0720221 of 2

R O P LA TADI RE CEM EN

SW E T IONC R ENT

INTERFACING SOLUTIONS

- Retains factory Steering Wheel Controls.

- Retains RAP (Retained Accessory Power).

- Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

Reverse Gear Purple/White

Illumina on (+) Orange

+12V Constant Yellow

+12V ACC Red

Ground Black

Right Front (+) G yra

Right Front (-) Gray/Black

Le Front (+) White

Le Front (-) White/Black

Le Rear (+) Green

Le Rear (-) Green/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

TO FACTORY

HARNESS

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

1 2 3

AFTERMARKET

RADIO SELECTOR

(See Chart)

Chime volume

adjustment

44-PIN

CONNECTOR

To aftermarket

Radio SWC Input

16-Pin Black

Connector

Non Bose Bose

See page 2 for Audio

connection options

To Aftermarket

Radio Rear Camera Input

To OEM Camera

Harness

Gray 16-Pin

Connector

Vehicle Speed Sense

(Green/White)

Option A:

Option B:

BLUE / YELLOW

(for Kenwood or JVC)

Insulate with tape

if not being used

SWRGM-49N

Radio Replacement Interface with Steering Wheel Control

Retention for Select GM LAN Bus Vehicles 2010-2017

TROUBLESHOOTING

LED

LIGHT

LED MODULE FEEDBACK

Solid blue

Flashing blue

Solid red Module providing 12V ACC

CAN not recognized

CAN recognized

12V ACC OFFRed off

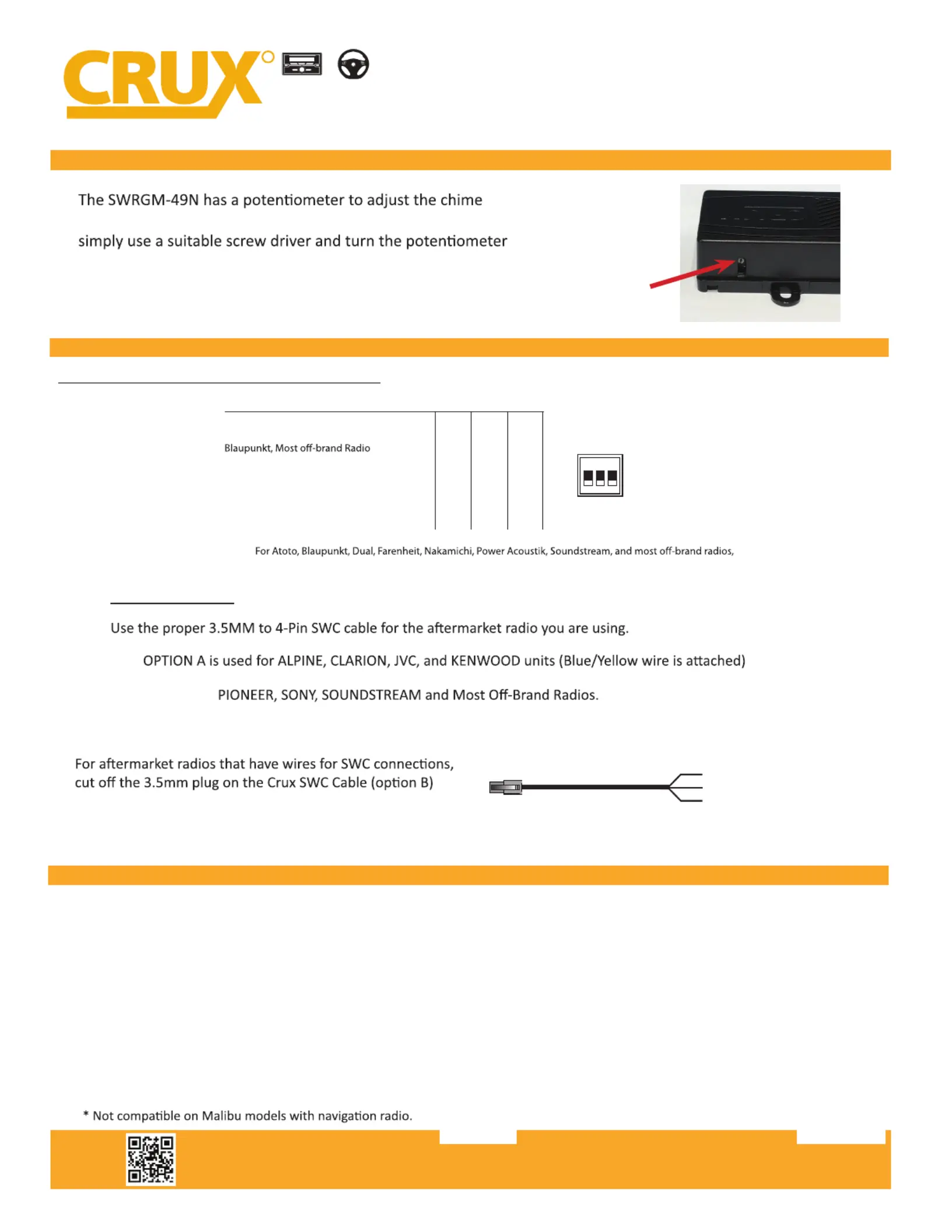

volume. It is set at half way by default. To adjust the volume,

clockwise to increase the volume and counter-clockwise to

decrease the volume.

Chime

Volume

Adjustment

CHIME VOLUME ADJUSTMENT:

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.072022

SWRGM-49N

Radio Replacement Interface with Steering Wheel Control

Retention for Select GM LAN Bus Vehicles 2010-2017

2 of 2

R O P LA TADI RE CEM EN

SW E T IONC R ENT

INTERFACING SOLUTIONS

VEHICLE APPLICATIONS:

DIP SWITCH SETTINGS:

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3

Atoto, Dual, Fahrenheit, Jensen, Nakamichi,

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony (with CarPlay)

OFF ON ON

OFF OFF OFF

ON ON OFF

ON ON ON

ON OFF ON

ON OFF OFF

OFF ON OFF

SWC MODULE

DIP SWITCH

1 2 3

NOTE:

check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr

NOTES:

- Does not retain OnStar. Use Crux part# SOOGM-19N in ead.st

BUICK

2017 Cascada

2015-2016 Encore

CHEVROLET

2011-2015 Cruze

2016 Cruze Classic

2010-2016 Equinox

2013-2015 Malibu*

2016 Malibu Classic*

2012-2015 Sonic

2012-2015 Spark

2016 Spark Classic

2015-2016 Trax

2015 Volt

GMC

2010-2017 Terrain

4-PIN SWC CABLE

OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, NAKAMICHI, POWER ACOUSTIK,

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

and connect the SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
