Crux Interfacing Solutions Chatsworth, CA 91311
phone: (818) 609-9299 fax: (818) 996-8188 www.cruxinterfacing.com
rev.072022
1 of 3
- Retains chime functions.
- Pre-programmed to retain factory Steering Wheel Controls
- RAP (Retained Accessory Power).
- Provides illumination, parking brake, reverse, and speed sense outputs.
- Retains factory back-up camera. (Excluding Camaro (IOR) 2019-Up)
PARTS INCLUDED:

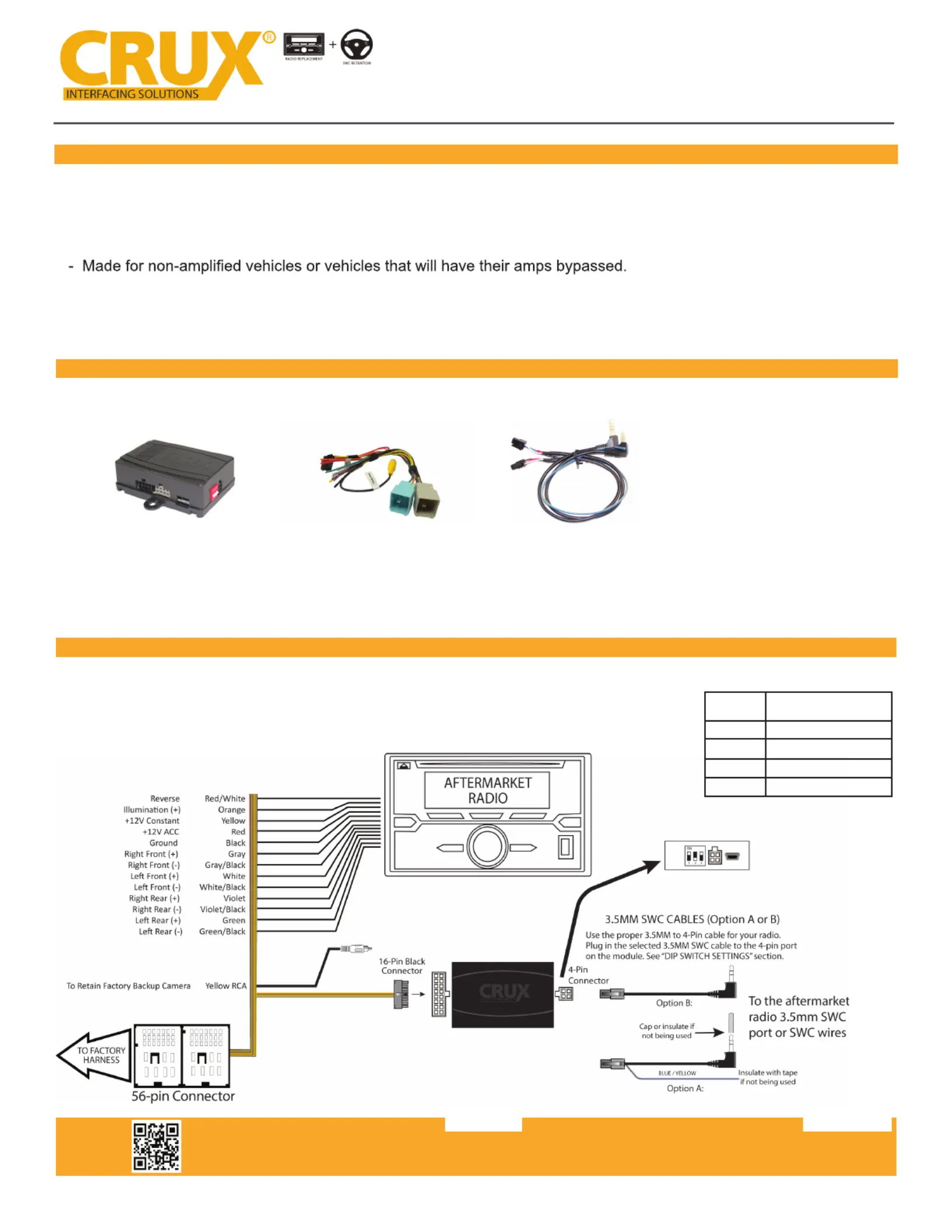

INSTALLATION DIAGRAM:
SWRGM-49R MODULE SWRGM-49R HARNESS SWC CABLE
SWRGM-49R
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
Crux Interfacing Solutions Chatsworth, CA 91311
phone: (818) 609-9299 fax: (818) 996-8188 www.cruxinterfacing.com
SWRGM-49R
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
2 of 3

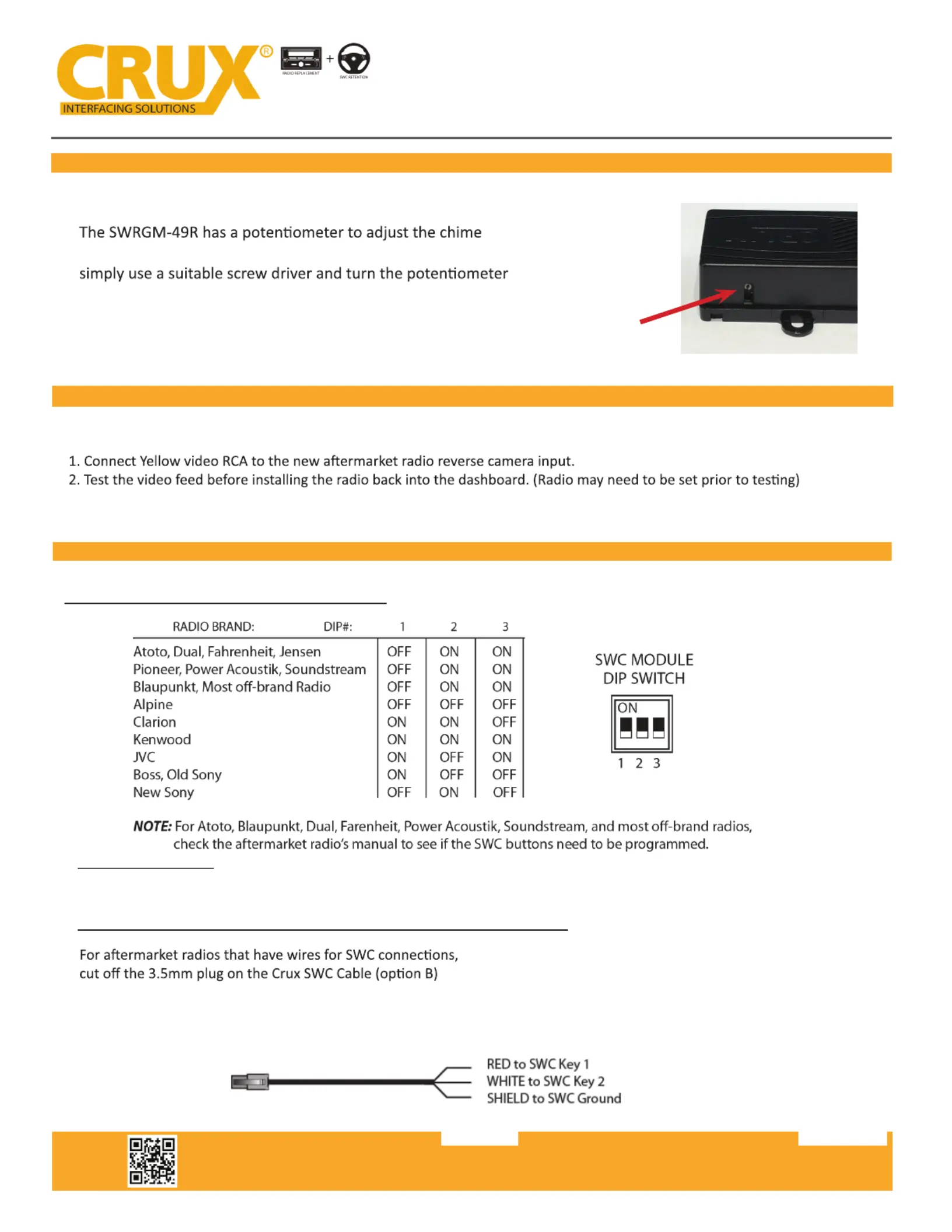

OEM CAMERA RETENTION:
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
NOTE: Cap or Insulate the 3.5mm plug and Blue/Yellow wire if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
and connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
rev.072022
The SWRGM-49R is prewired with an RCA connector to retain the OEM camera on vehicles with a IOR system.
