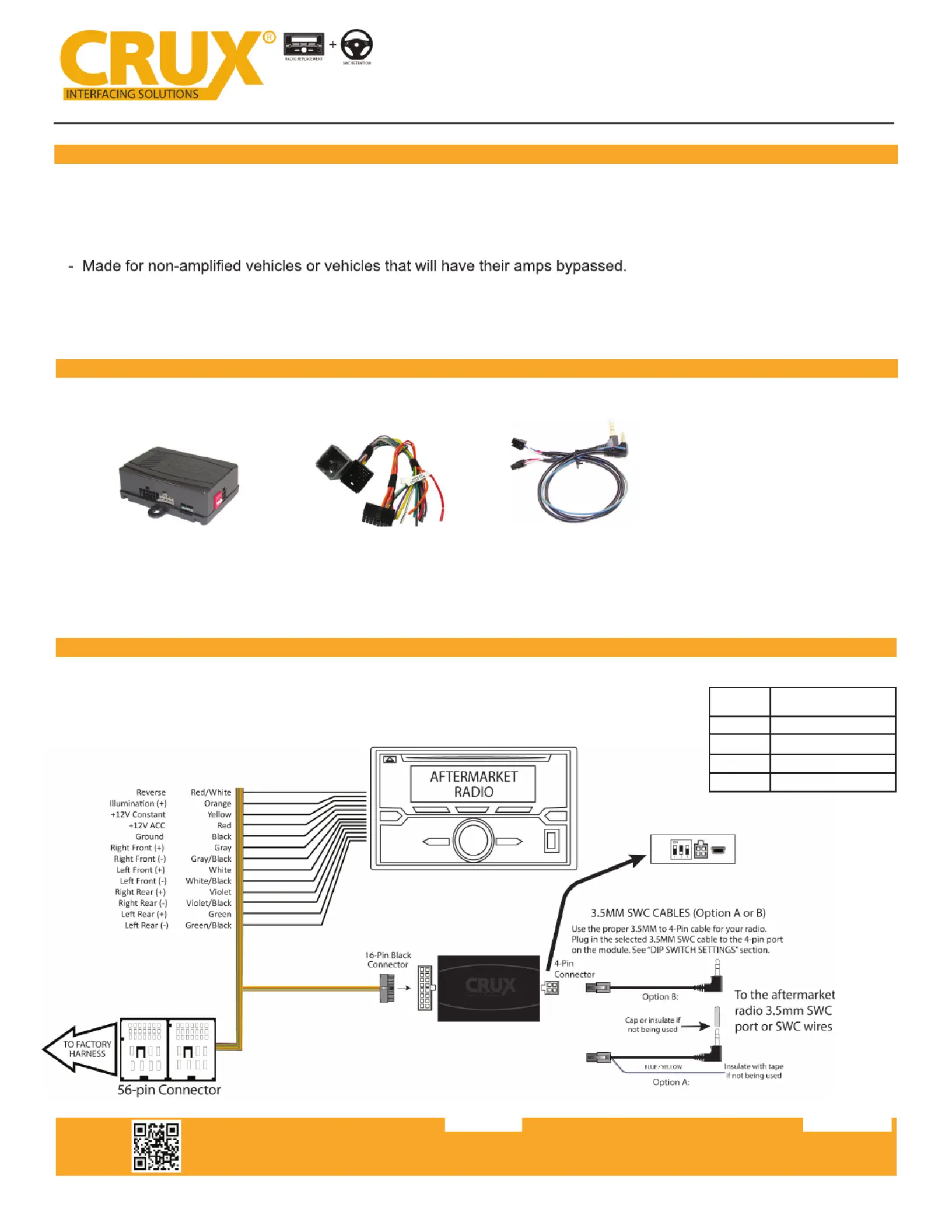

Side 1/3
Crux Interfacing Solutions Chatsworth, CA 91311
phone: (818) 609-9299 fax: (818) 996-8188 www.cruxinterfacing.com
rev.072022
1 of 3
- Retains chime functions.
- Pre-programmed to retain factory Steering Wheel Controls
- RAP (Retained Accessory Power).
- Provides illumination, parking brake, reverse, and speed sense outputs.
PRODUCT FEATURES:
INSTALLATION DIAGRAM:
SWRGM-49S MODULE SWRGM-49S HARNESS SWC CABLE
SWRGM-49S
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red Module providing 12V ACC
CAN not recognized
CAN recognized
12V ACC OFFRed off
Crux Interfacing Solutions Chatsworth, CA 91311
phone: (818) 609-9299 fax: (818) 996-8188 www.cruxinterfacing.com
SWRGM-49S
Radio Replacement Interface with Steering Wheel Control
Retention for GM Vehicles 2019 - Up
2 of 3
volume. It is set at half way by default. To adjust the volume,
clockwise to increase the volume and counter-clockwise to
decrease the volume.
Chime
Volume
Adjustment
CHIME VOLUME ADJUSTMENT:
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
NOTE: Cap or Insulate the 3.5mm plug and Blue/Yellow wire if not being used.
3.5MM SWC CABLE
Plug in the 3.5MM to 4-Pin SWC cable to the SWC module.
and connect the SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
rev.072022
