SWRMB-57M

Radio Replacement with Steering Wheel Control Retention for

Select Mercedes Benz Vehicles

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

RAD IO EPL A NT R CEM E

SW RETENT IONC

INTERFACING SOLUTIONS

PRODUCT FEATURES:

1. This interface does not retain the factory Bluetooth or Sirius Satellite Radio.

PARTS INCLUDED:

SWRMB-57M Module SWRMB-57M Harness SWC Cables

rev.072925

1 of 3

NOTES:

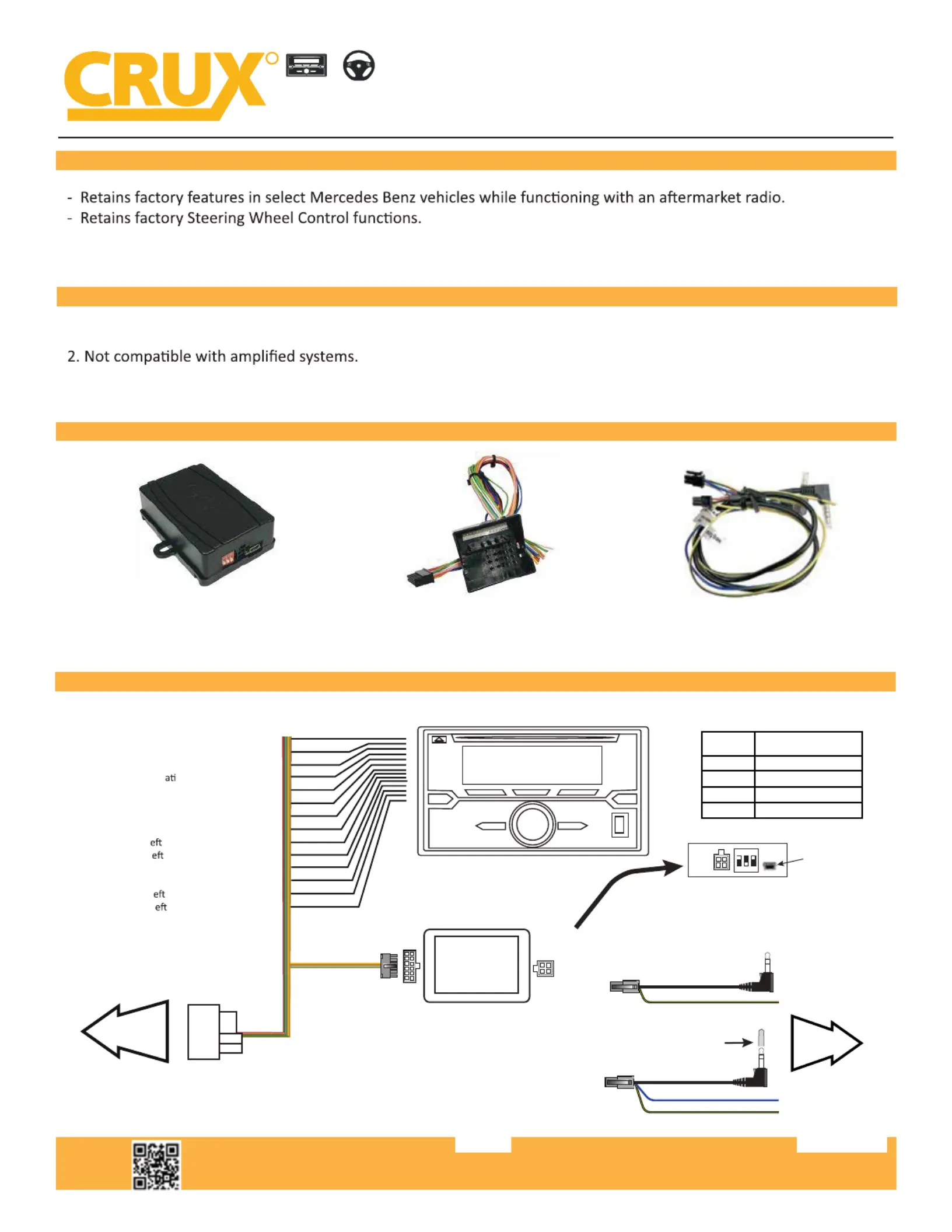

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

Illumin

on (+) Orange

Vehicle Speed Sense Pink

Reverse Gear Signal

Red/White or Purple/White

Right Front (+) Gray

Right Front (-) Gray/Black

Front (+) White

Front (-) White/Black

Right Rear (+) Purple

Right Rear (-) Purple/Black

Rear (+) Green

Rear (-) Green/Black

TO FACTORY

HARNESS

12-Pin

Connector

1 2 3

4-Pin

Connector

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin

port on the module. See “DIP SWITCH SETTINGS” section.

mini USB

Not Used

CRUX

BLACK / YELLOW FOR PARKING BRAKE OUTPUT

Cap or insulate if

not being used

AFTERMARKET

RADIO

Option A:

BLUE / YELLOW

Option B:

To aftermarket

radio SWC wire

or 3.5mm port

Insulate with tape

if not being used

TROUBLESHOOTING

LED

LIGHT

LED MODULE FEEDBACK

Solid blue

Flashing blue

Solid red

Red off

CAN recognized

CAN not recognized

Module providing 12V ACC

12V ACC OFF

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

RAD IO EPL A NT R CEM E

SW RETENT IONC

INTERFACING SOLUTIONS

rev.072925

SWRMB-57M

Radio Replacement with Steering Wheel Control Retention for

Select Mercedes Benz Vehicles

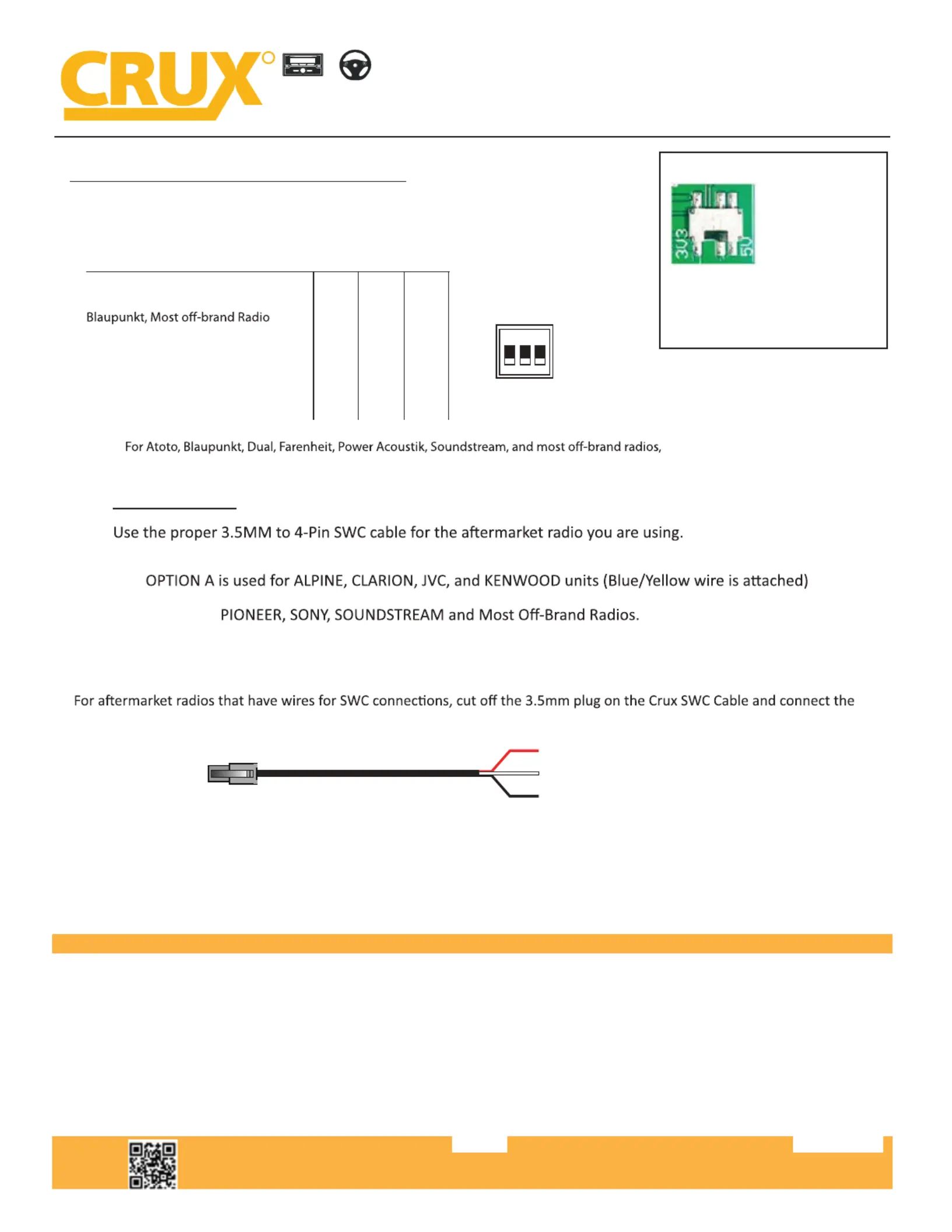

SETTING THE AFTERMARKET RADIO BRAND

2 of 3

MERCEDES BENZ

2004 – 2008 E-class (W211)

2005 – 2006 CLS-class (W219)

2005 – 2008 SLK Class (R171)

VEHICLE APPLICATIONS:

RADIO BRAND: DIP#: 1 2 3

Atoto, Dual, Fahrenheit, Jensen

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion

Kenwood

JVC

Boss, Old Sony

New Sony

OFF ON ON

OFF OFF OFF

ON ON OFF

ON ON ON

ON OFF ON

ON OFF OFF

OFF ON OFF

SWC MODULE

DIP SWITCH

1 2 3

NOTE:

check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.

4-PIN SWC CABLE

OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,

NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

SWC wires as follows:

Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.

This step is done on the SWRMB-57M Module. With the key in the oﬀ posion,

set the DIP switches to the corresponding radio listed below.

SWC Troubleshoot option

Located internally

Need to take plastic

Casing o module

• If Steering Wheel Controls don’t

work or work properly please switch

internal dip switch from 3v3 to 5v

as shown in picture above.
