Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.230122
SWRN S-63F
Radio Replacement with Steering Wheel Control Retention
1 of 2
RAD IO EPL A NT R CE ME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.
- Includes antenna adapter.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRNS-63F Harness Antenna
AdapterSWRNS-63F MODULE SWC Cables USB Retention Cable
- Retains Bose Amplier.
- Retains factory USB & Auxiliary input .
- Retains factory camera (not 360 panoramic camera)
- Provides outputs for parking brake and reverse gear.
for Select NISSAN SENTRA Vehicles 2019 and Up with out CarPlay

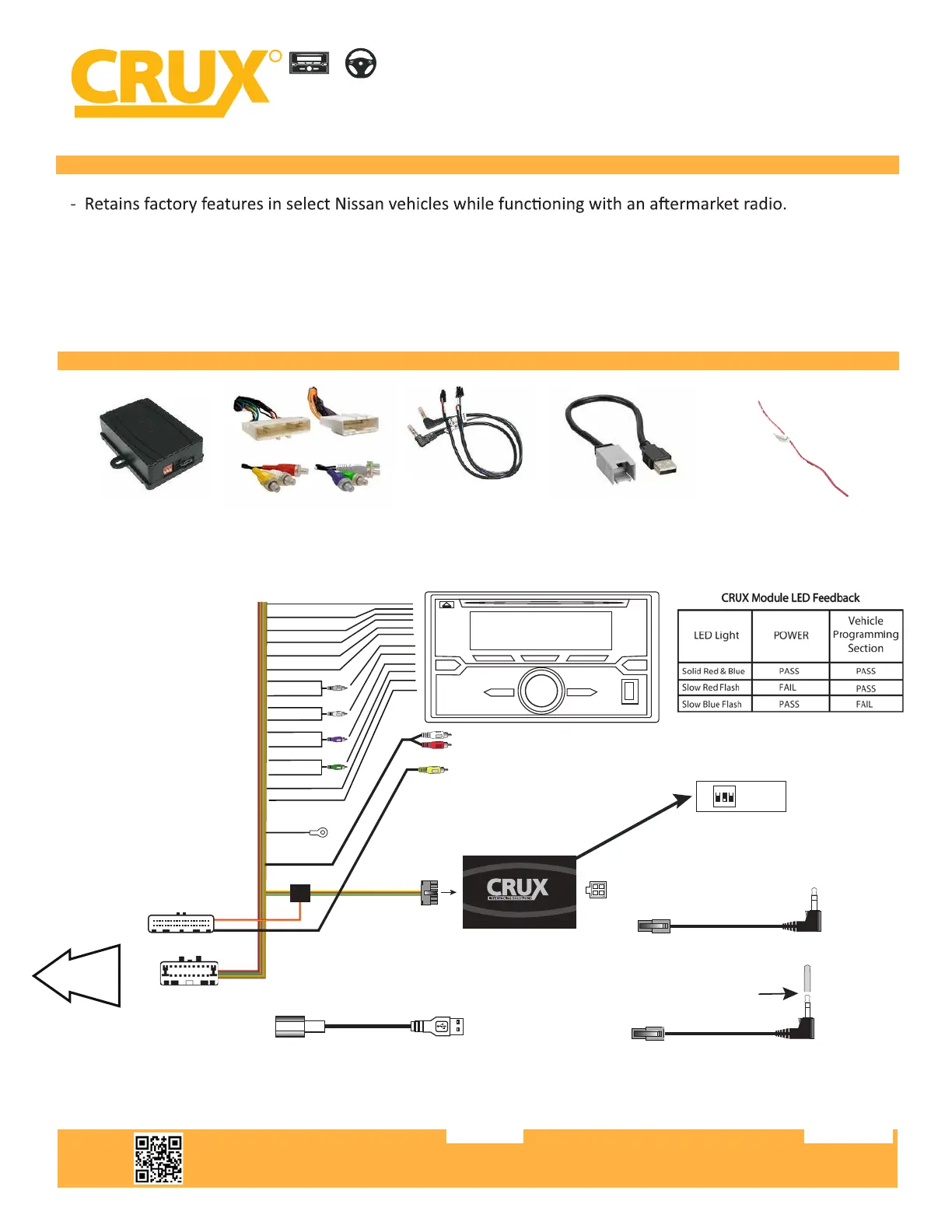

INSTALLATION DIAGRAM FOR NON-AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/White
Amp Turn On Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Chassis Ground Black
Reverse Gear Output Violet/White
**Ignition power Output Red/Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
BLUE/ Power Antenna
4-Pin
Connector
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
USB-Min2
USB Retention Adaptor (included in kit)
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
*
*
*
*
*
*
*
*
** ACC Power Output Note: For vehicles equipped with intellegent key systems (Push Start Button)
+12 V accessory red wire may not activate radio, must use ignition power output (Red/Black wire) instead.
40 PIN
20 PIN
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.2301222 of 2
DIP SWITCH SETTINGS:
VEHICLE APPLICATIONS:
NISSAN
2019 and Up Sentra with out CarPlay, Bose & Nav
Note: With CarPlay/Android Auto, factory radio, use CRUX Part #SWRNS-63FC
AFTERMARKET RADIO DIP SWI TCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen, Nakamichi,
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion, Stinger
Kenwood
JVC
Boss, Old Sony
New Sony (with CarPlay)
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
OPTION B is used for ATOTO, BLAUPUNKT, BOSS, DUAL, FARENHEIT, JENSEN, POWER ACOUSTIK,
NOTE: Cap or insulate the 3.5mm plug or Blue/Yellow wire if not being used.
NOTE: Some SWC functions might not be retained for the following radio series:
Planet Audio P9900CPA, Jensen CAR 710, Atoto F7, and similar radios of these brands.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
connect the SWC wires as follows:
Note that there are some radios that only have
SWC1 and SWC2, in this case “shield” does not
need to be connected.
SWRN S-63F
Radio Replacement with Steering Wheel Control Retention
RAD IO EPL A NT R CE ME
SW RET TIO NC EN
+
R
INTERFACING SOLUTIONS
for Select NISSAN SENTRA Vehicles 2019 and Up with out CarPlay
Radio Buttons will be on the left. Please look out for this home screen layout for this part.
