Side 1/5
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091824
SWRNS-63FC
Radio Replacement with Steering Wheel Control Retention
1 of 5
RAD IO EPL A NT R CEM E
SW RET TIO NC EN
+
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Medium Speed CAN-Data Bus Steering Wheel Controls.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRNS-63FC MODULE
SWC Cables
- Retains Bose Amplier.
- Retains factory USB & Auxiliary input .
- Retains factory camera (not 360 panoramic camera)
- Provides outputs for parking brake and reverse gear.
for Select NISSAN SENTRA Vehicles 2019 and Up with CarPlay

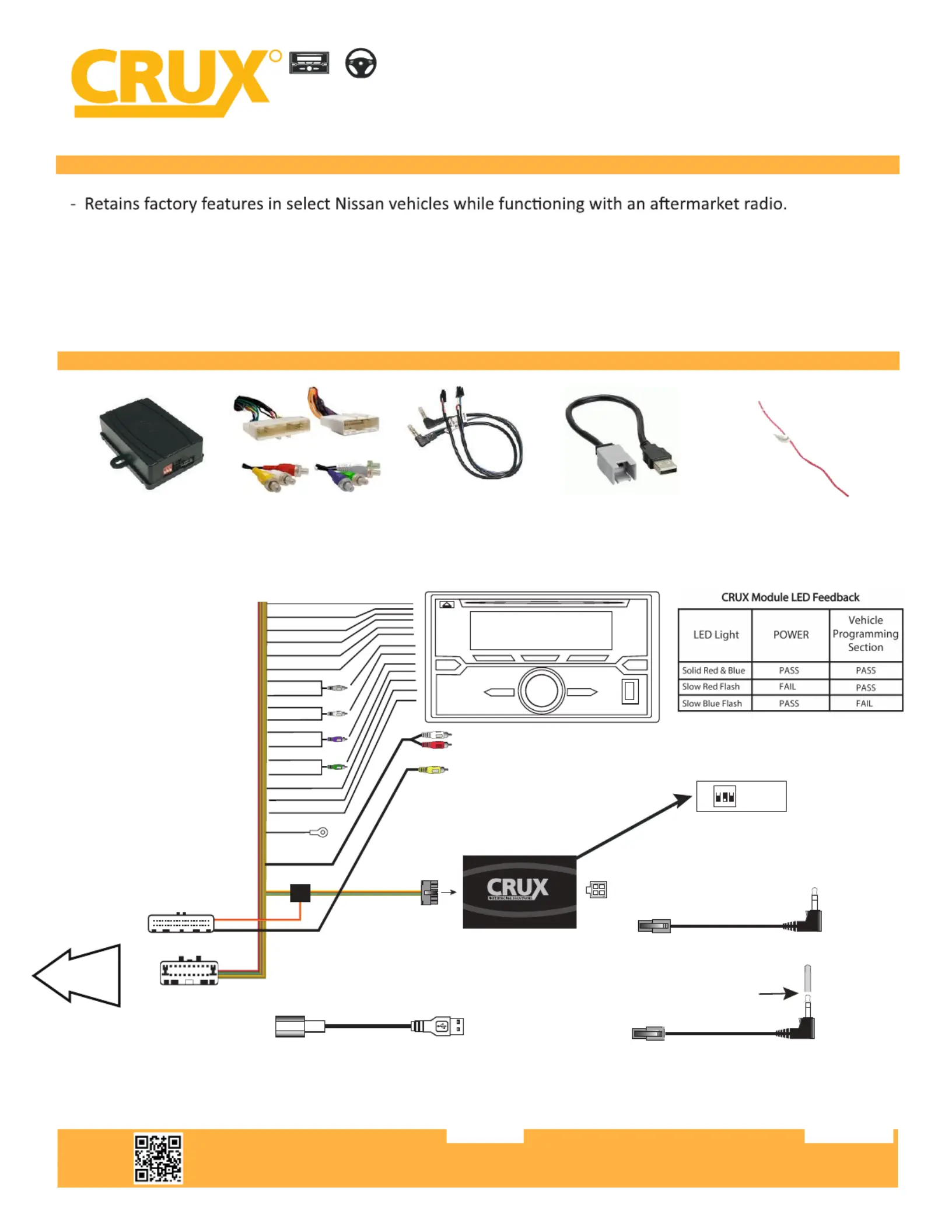

INSTALLATION DIAGRAM FOR AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/ White
Amp Turn On
Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal)
Brown/White
Chassis Ground Black
Reverse Gear Output
Violet/White
Ignition power Output
Red/Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
4-Pin
Connector
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
• For Amplied Systems Please Do Not Cut RCA to get better audio quality
**
Please see page 2 for note
USB-Min2
USB Retention Adaptor
(included in kit)
**
40 PIN
20 PIN
SWRNS-63FC Harness
USB Retention Cable
Optional Acc wire
Radio Replacement with Steering Wheel Control Retention
RAD IO EPL A NT R CEM E
SW RET TIO NC EN
+
INTERFACING SOLUTIONS
for Select NISSAN SENTRA Vehicles 2019 and Up with CarPlay
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0918242 of 5

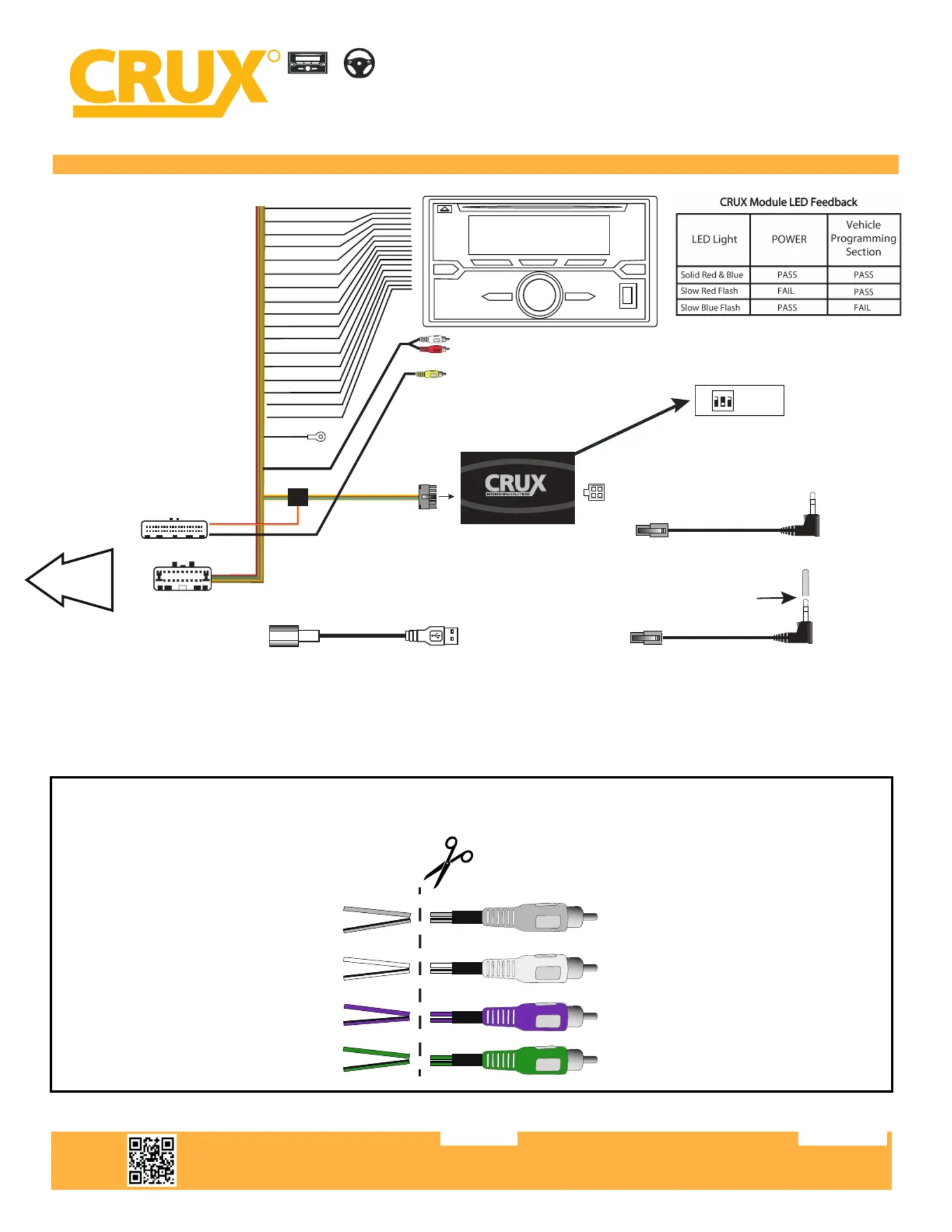

INSTALLATION DIAGRAM FOR NON-AMPLIFIED VEHICLES:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination (+) Orange
Illumination (-) Orange/White
Amp Turn On
Blue/ White
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
VSS (Vehicle Speed Signal) Brown/White
Chassis Ground Black
Reverse Gear Output
Violet/White
**Ignition power Output
Red/Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
4-Pin
Connector
Yellow RCA
(Retain OE Camera)
Rear View Camera Signal
Option A:
Option B:
Cap or insulate if
not being used
BLUE / YELLOW
Insulate with tape
if not being used
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
To aftermarket
radio SWC wire
or 3.5mm port
1 2 3
ON
USB-Min2
USB Retention Adaptor
(included in kit)
12v to 6v
Converter
Audio Input Red/White RCA
(Retains Factory AUX Input)
*
*
*
*
*
*
*
*
Green RCA (Left Rear)
Gray RCA (Right front)
White RCA (Left front)
Violet RCA (Right Rear)
Right Front (+)
Right Front (-)
Left Front (+)
Left Front (-)
Right Rear (+)
Right Rear (-)
Left Rear (+)
Left Rear (-)
GRAY
GRAY/BLACK
WHITE
WHITE/BLACK
VIOLET
VIOLET/BLACK
GREEN
GREEN/BLACK
*
For Non-Amplied systems please cut RCA , and mate colored wires
to the appropriate aftermarket radio speaker wires
** ACC Power Output Note: For vehicles equipped with intelligent key systems (Push Start Button)
+12 V accessory red wire may not activate radio, must use ignition power output (Red/Black wire) instead.
40 PIN
20 PIN
SWRNS-63FC
