Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.083122

SWRNS-63S

Radio Replacement with Steering Wheel Control Retention

for Select NISSAN Vehicles

1 of 2

R O P LA TAD I RE CE MEN

SW E T IONC R ENT

INTERFACING SOLUTIONS

- Pre-programmed to retain factory Steering Wheel Controls.

- Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

SWRNS-63S Harness Antenna Adapter

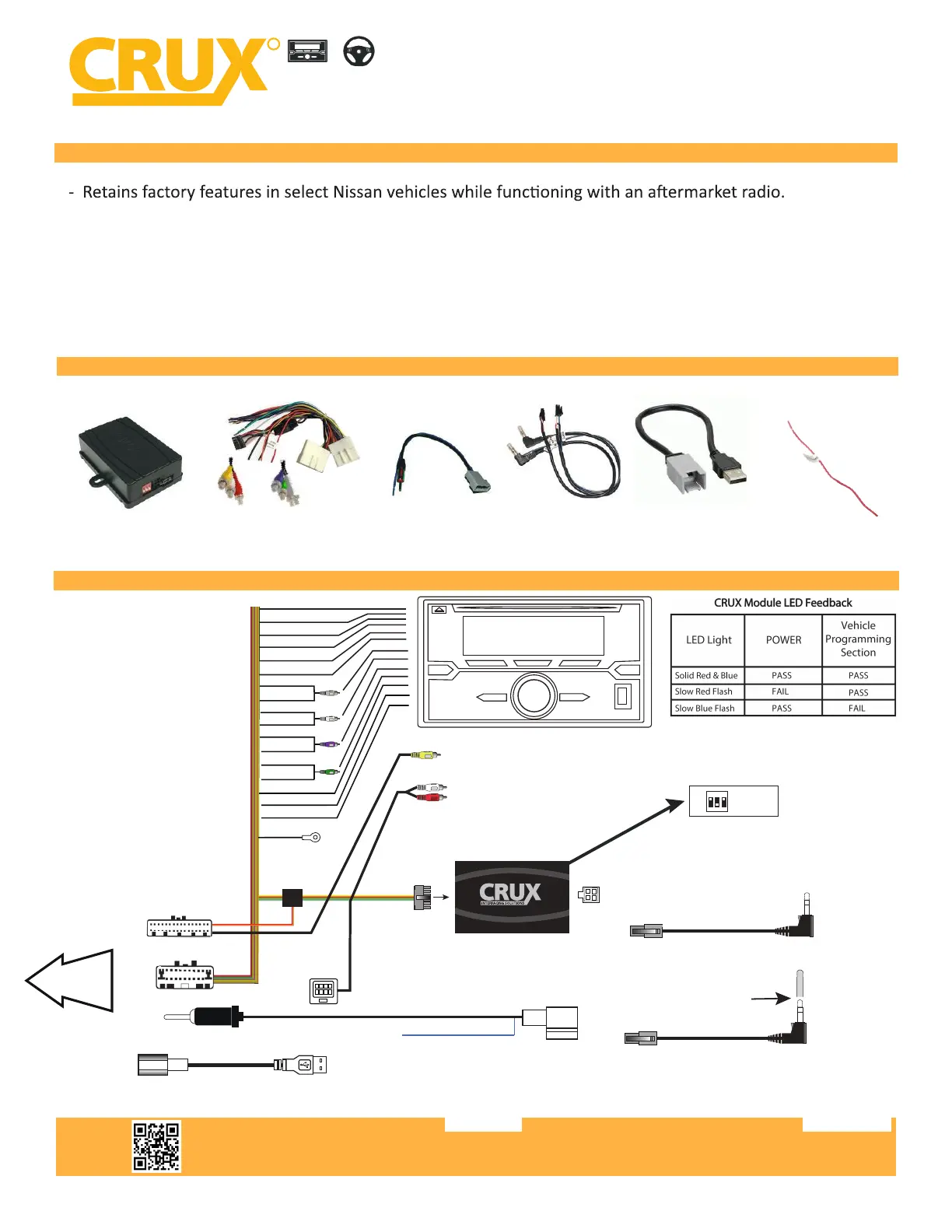

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

Illumination Orange

Not Used Orange/White

Amp Turn On Blue/ White

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

VSS (Vehicle Speed Signal) Brown

Chassis Ground Black

Reverse Output Red/White or Violet/White

(with Ring Terminal)

TO FACTORY

HARNESS

12-Pin Black

Connector

BLUE/ Power Antenna

4-Pin

Connector

32 PIN

20 PIN

Yellow RCA

(Retain OE Camera)

Rear View Camera Signal

SWRNS-63S MODULE

Option A:

Option B:

Cap or insulate if

not being used

BLUE / YELLOW

Insulate with tape

if not being used

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

To aftermarket

radio SWC wire

or 3.5mm port

1 2 3

SWC Cables

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.083122

SWRNS-63S

Radio Replacement with Steering Wheel Control Retention

for Select NISSAN Vehicles

2 of 2

R O P LA TAD I RE CE MEN

SW E T IONC R ENT

INTERFACING SOLUTIONS

DIP SWITCH SETTINGS:

VEHICLE APPLICATIONS:

NISSAN

2017 - UP Sentra

Compable Nissan Vehicles

AFTERMARKET RADIO DIP SWITCH SETTINGS:

RADIO BRAND: DIP#: 1 2 3

Atoto, Dual, Fahrenheit, Jensen, Nakamichi,

Pioneer, Power Acoustik, Soundstream

Alpine

Clarion, Stinger

Kenwood

JVC

Boss, Old Sony

New Sony (with CarPlay)

OFF ON ON

OFF OFF OFF

ON ON OFF

ON ON ON

ON OFF ON

ON OFF OFF

OFF ON OFF

SWC MODULE

DIP SWITCH

1 2 3

NOTE:

check the aftermarket radio’s manual to see if the SWC buttons need to be pro ammed.gr

4-PIN SWC CABLE

OP for ATOTO A TTION B is used , BL UPUNK , BOSS, D LUA , FARENHEIT, JENSEN, P TIK, OWER ACOUS

NOTE: Cap or insulat Yellow wire the 3.5mm plug or Blue/ e if not being used.

NOTE: Some SWC functions might not be retained for the following radio series:

Planet Audio P9900CPA, Jensen CAR 710, Atoto F7, and similar radios of these brands.

RED to SWC Key 1

WHITE to SWC Key 2

SHIELD to SWC Ground

connect the SWC wires as follows:

Note that there are some radios that only have

SWC1 and SWC2, in this case “shield” does not

need t connected.o be
