Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev. 081022
SWRNS-63T
Radio Replacement with Steering Wheel Control Retention
for Select NISSAN Vehicles 2005-2011
1 of 2
RADIO REPLACEMENT
SWC RETENTION
+
R
INTERFACING SOLUTIONS
- Retains factory features in select Nissan vehicles while funconing with an aermarket radio.
- Pre-programmed to retain steering wheel controls.
- Supports Bose amplied and non-amplied systems.
- EIA color coded wiring for easy installaon.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRNS-63T Module SWRNS-63T Harness SWC Cable

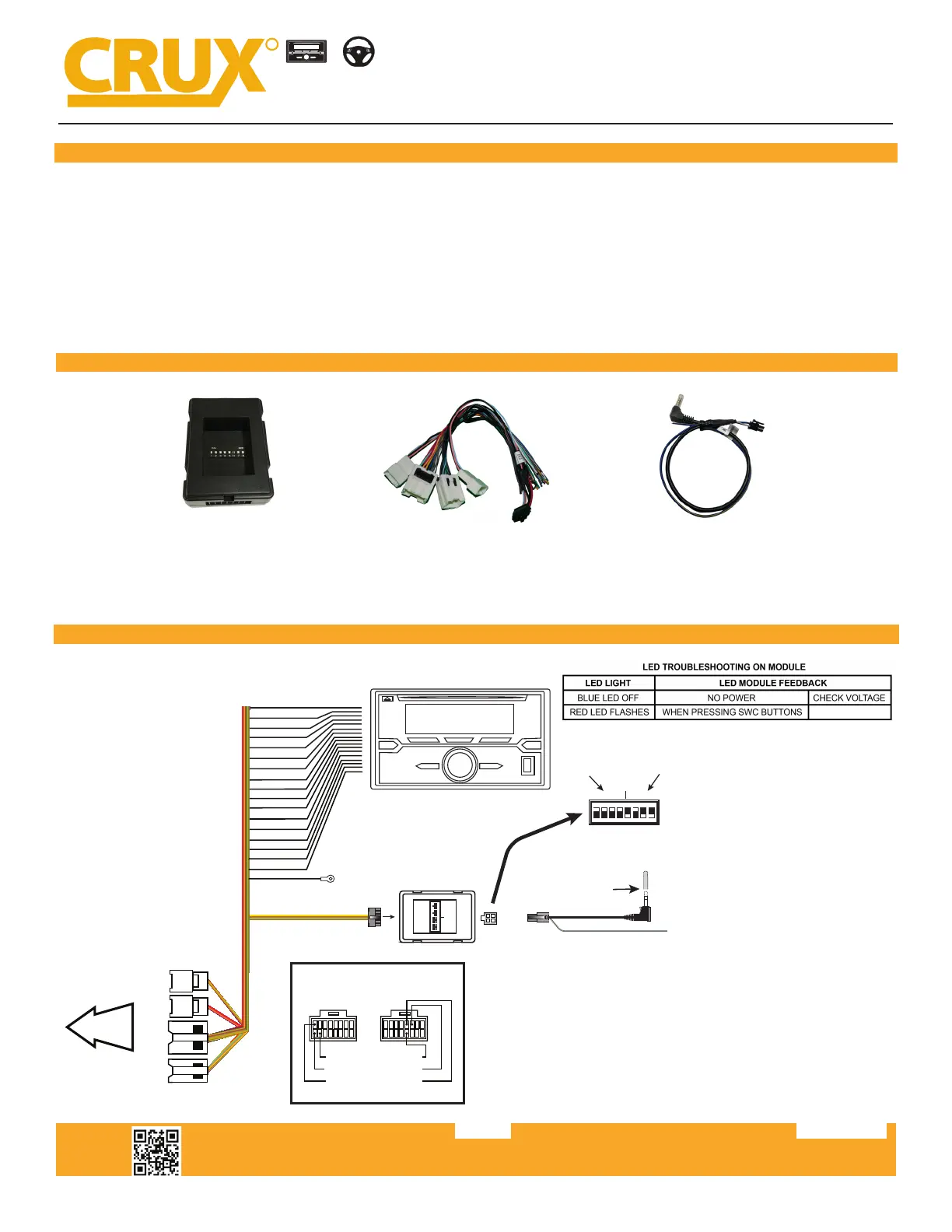

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
+12V Constant Yellow
+12V ACC Red
Ground Black
Additional Ground Black
Illumination Orange
Not Used Orange/White
Amp Turn On Blue/ White
Power Antenna Blue
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
Not Used Light Green
Chassis Ground Black
(with Ring Terminal)
TO FACTORY
HARNESS
12-Pin Black
Connector
16 PIN
10 PIN
6 PIN
16 PIN
“A”
“B”
16-Pin
Connector
“A”
16-Pin
Connector
“B”
Pink
Black
Light Blue
Pink
Black
Light Blue
WIRE VIEW
Refer to VEHICLE APPLICATIONS
on page 2 for “A” and “B” Connection
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
AFTERMARKET
RADIO SELECTOR
(See Chart)
NISSAN
SWC SETTING
(OFF ON OFF OFF)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
To aftermarket
radio SWC port
