SWRSB-58
Radio Replacement with Steering Wheel Retention
1 of 3
PRODUCT FEATURES:
PARTS INCLUDED:

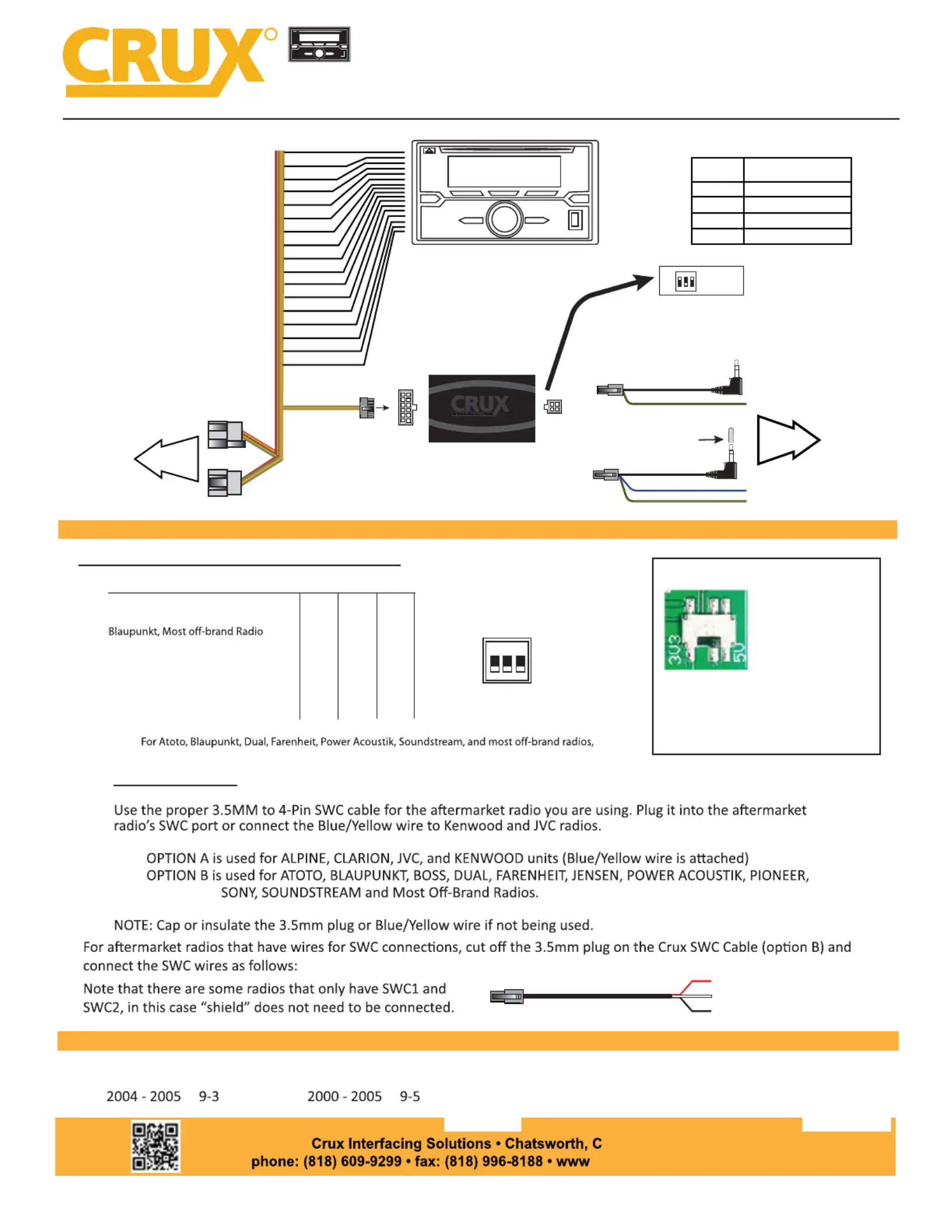

INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
illumination (+) Orange
Reverse Gear Red/White
Vehicle Speed Sense Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
Amp Turn on Blue
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
TO FACTORY
HARNESS
12-Pin Black
Connector
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
NOTE:
rev.072925
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red
Red off
CAN recognized
CAN not recognized
Module providing 12V ACC
12V ACC OFF
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
Cap or insulate if
not being used
TO
AFTERMARKET
RADIO
Option A:
BLUE / YELLOW
Option B:
To aftermarket
radio SWC wire
or 3.5mm port
Insulate with tape
if not being used
RADI R A TO EPL CEMEN
R
INTERFACING SOLUTIONS
A 91311
.cruxinterfacing.com
SWRSB-58
Radio Replacement with Steering Wheel Retention
for select Saab Vehicles
2 of 3
SAAB
VEHICLE APPLICATIONS:
TO FACTORY
HARNESS
AFTERMARKET
RADIO
illumination (+) Orange
Reverse Gear Red/White
Vehicle Speed Sense Purple/White
+12V Constant Yellow
+12V ACC Red
Ground Black
Amp Turn on Blue/White
Dimmer Orange/White
Power Antenna Blue
Right Front (+) Gray
Right Front (-) Gray/Black
Left Front (+) White
Left Front (-) White/Black
Right Rear (+) Violet
Right Rear (-) Violet/Black
Left Rear (+) Green
Left Rear (-) Green/Black
12-Pin Black
Connector
1 2 3
ON
4-Pin
Connector
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
DIP SWITCH SETTINGS:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP#: 1 2 3
Atoto, Dual, Fahrenheit, Jensen
Pioneer, Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF ON ON
OFF ON ON
OFF ON ON
OFF OFF OFF
ON ON OFF
ON ON ON
ON OFF ON
ON OFF OFF
OFF ON OFF
SWC MODULE
DIP SWITCH
1 2 3
ON
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
4-PIN SWC CABLE
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
rev.072925
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
BLACK / YELLOW FOR PARKING BRAKE OUTPUT
Cap or insulate if
not being used
TO
AFTERMARKET
RADIO
Option A:
BLUE / YELLOW
Option B:
To aftermarket
radio SWC wire
or 3.5mm port
Insulate with tape
if not being used
TROUBLESHOOTING
LED
LIGHT
LED MODULE FEEDBACK
Solid blue
Flashing blue
Solid red
Red off
CAN recognized
CAN not recognized
Module providing 12V ACC
12V ACC OFF
SWC Troubleshoot option
Located internally
Need to take plastic
Casing o module
• If Steering Wheel Controls don’t
work or work properly please switch
internal dip switch from 3v3 to 5v
as shown in picture above.
