Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.052020

SWRTY-61C

Radio Replacement with Steering Wheel Control Retention for

Select Toyota Vehicles 2018-Up

1 of 3

RAD IO RE PLAC E ME NT

SWC RE TE NTIO N

INTERFACING SOLUTIONS

- Retains factory features in select Toyota vehicles while funconing with an aermarket radio.

- Pre-programmed to retain factory Steering Wheel Controls.

- Retains the factory amplier (non JBL). For vehicles with factory JBL amplier use part# SWRTY-61P.

- Retains factory back-up camera.

- Retains factory Auxiliary Audio Input.

- Includes factory USB retenon adapter cable.

- Includes antenna adapter.

PRODUCT FEATURES:

PARTS INCLUDED:

SWRTY-61C Module TY-61C Harness Speaker Harness SWC Cable USB Adapter

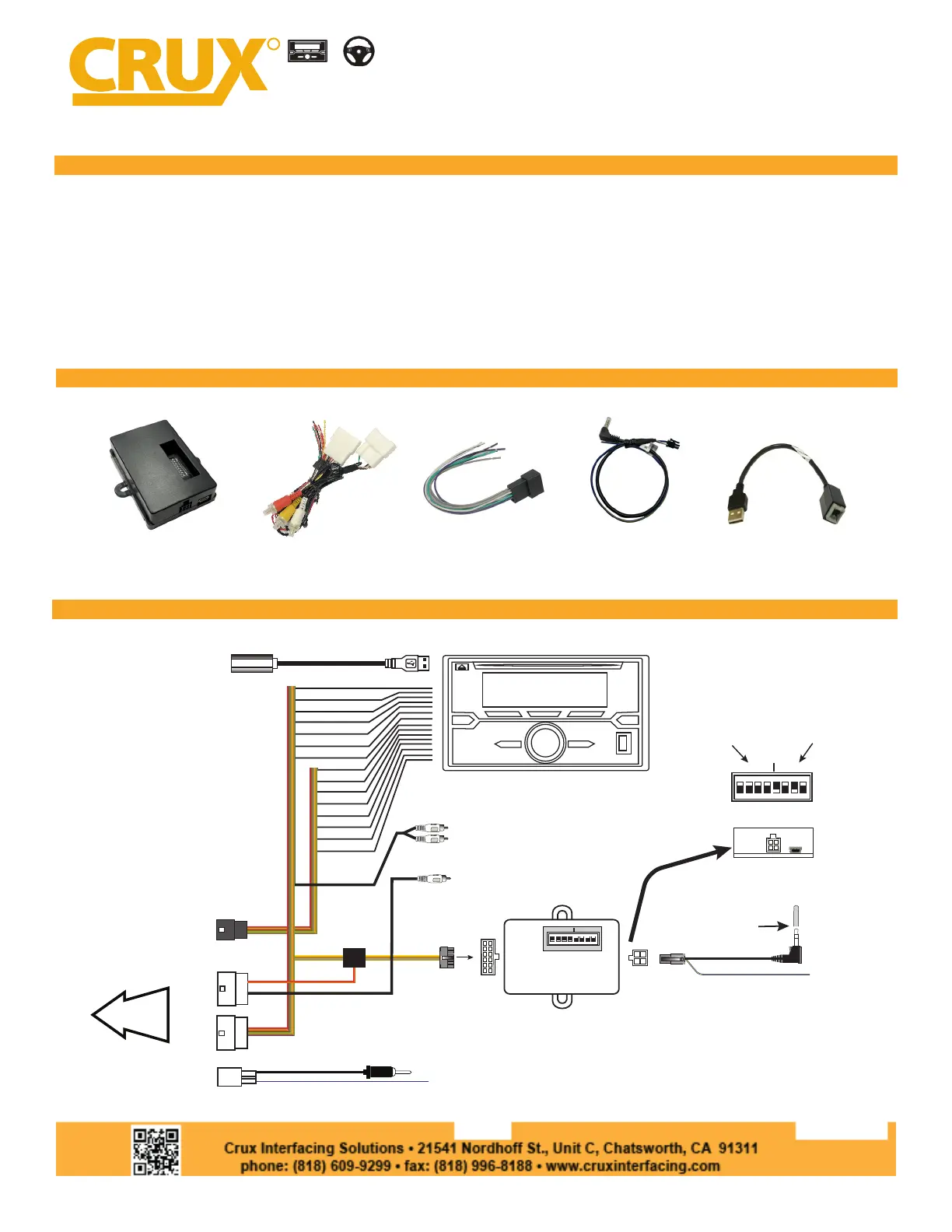

INSTALLATION DIAGRAM:

AFTERMARKET

RADIO

+12V Constant Yellow

+12V ACC Red

Ground Black

Reverse Gear Output Red/White

Vehicle Speed Sense Pink

Parking Brake Output Light Green

Amp Turn On Blue/White

Right Front (+) Gray

Right Front (-) Gray/Black

Left Front (+) White

Left Front (-) White/Black

Right Rear (+) Violet

Right Rear (-) Violet/Black

Left Rear (+) Green

Left Rear (-) Green/Black

Audio Input Red/White RCA

(Retains Factory AUX Input)

TO FACTORY

HARNESS

12-Pin Black

Connector

30 PIN

USB Retention Adaptor

(included in kit)

ANTENNA ADAPTOR

(Included in Kit)

Blue / Antenna Turn On

28 PIN

Yellow RCA

(Retains OE Camera)

Rear View Camera Signal Output

AFTERMARKET

RADIO SELECTOR

(See Chart)

TOYOTA

SWC SETTING

(OFF ON OFF ON)

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

ON RADIO VEHICLE

1 2 3 4 5 6 7 8

4-Pin

Connector

Cap or insulate if

not being used

Kenwood/JVC (BLUE / YELLOW )

Insulate with tape

if not being used

3.5MM SWC CABLE

Plug in the 3.5MM SWC cable to the 4-pin port

on the module. See below for DIP switch settings.

To aftermarket

radio SWC wire

or 3.5mm port

To aftermarket radio

Remote Turn On wire

(Blue or Blue/White wire)

To aftermarket radio Aux Input

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.052020

2 of 3

RAD IO RE PLAC E ME NT

SWC RE TE NTIO N

INTERFACING SOLUTIONS

SWRTY-61C

Radio Replacement with Steering Wheel Control Retention for

Select Toyota Vehicles 2018-Up

INSTALLATION INSTRUCTIONS:

1. Connect the SWRTY-61C

T-harness to the aermarket radio

harness. Refer to the diagram on

page 1 for wire color codes.

2. Remove the padded trim above the glove compartment.

3. Carefully pull out the trim under the

radio.

4. Remove the small trim next to the

shier.

5. Remove the AC control panel below

the radio.

6. Unplug the connector behind the AC

control panel.

7. Pull out the radio and unplug the

connectors.

8. Mate the factory radio connectors

to the SWRTY-61C T-harness. Test

for funconality then install the

aermarket radio.
