Side 1/5
SWRTY-61J
Radio Replacement with Steering Wheel Control Retention for
LEXUS & TOYOTA Vehicles with JBL Systems
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RAD IO RE PL ACE MENT
SWC R ETENTIO N
+
R
INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select Lexus and Toyota vehicles with JBL Harman-Becker Digital-Synthesis Amplier,
including JBL (Pioneer-made) ampliers while funconing with an aermarket radio.
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory backup camera (if present).
- Retains OEM 3.5mm Auxiliary Audio Input.
- iPhone Voice Recognion (VR) feature from SWC on select Kenwood, Pioneer, Alpine and JVC radios.
- Variable audio gain adjustment to level match the aermarket radio and factory amplier.
- Supports BT-HF/A2DP/AVRCP prole on select aermarket radio models.
- Supports Pick Up/End Call, Pick up and Toggle between 1st and 2nd incoming call, AVRCP Track, Seek.
- EIA color coded wiring for easy installaon.
1. Le-Right Balance Audio Control is supported. Front-Rear Audio Fading is not supported.
2. Please make sure to set the factory radio volume to 70% and balance and fade opons are centered before
removing the radio.
PARTS INCLUDED:
SWRTY-61J Module TY-A Harness
(For Newer Models)
TY-B Harness
(For Older Models)
3.5MM to 4-pin SWC Cables OEM Camera Retenon Harness 16 to 24 Pin Camera Adapter
1. In some Lexus/Toyota vehicles 2006 and older, the mute circuit is located in the same pin locaon as the amplier
turn-on on the OEM harness. If no audio is heard aer the installaon is complete, disconnect the BLUE/WHITE wire
on the TY-61J T-Harness from the aermarket radio AMP Turn-on wire. Insulate with tape to avoid short circuits.
2. Before connecng the 3.5mm SWC Cable, thoroughly wipe it clean with the alcohol cleansing pad provided. This will
ensure a solid contact with the aermarket radio SWC circuit.
3. To retain the factory AUXILIARY INPUT opon in the vehicle, the aermarket radio must have an “Auxiliary Audio
Input” feature. Please check your aermarket radio manual for details.
IMPORTANT INSTALLATION NOTES:
rev.081222
1 of 5
NOTES:
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
RAD IO RE PL ACE MENT
SWC R ETENTIO N
+
R
INTERFACING SOLUTIONS
rev.081222

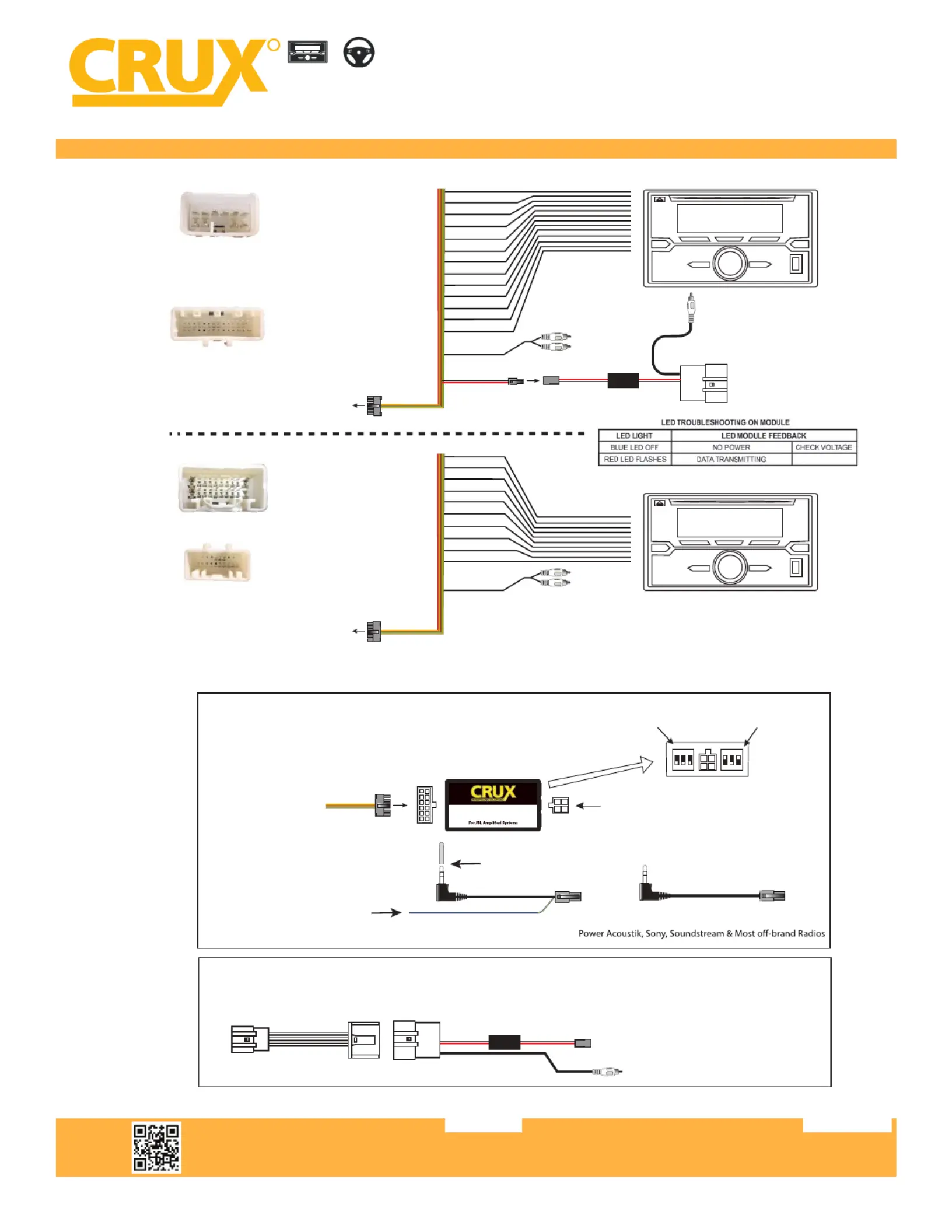

INSTALLATION DIAGRAM:
SWRTY-61J
Radio Replacement with Steering Wheel Control Retention for
LEXUS & TOYOTA Vehicles with JBL Systems
2 of 5
AFTERMARKET
RADIO
SWRTY-61J MODULE 1 2 3
ON
1 2 3
ON
AFTERMARKET
RADIO SELECTOR
(See Chart)
GAIN
ADJUSTMENT
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination Output Orange
Amp Turn-On Blue/ White
Antenna Turn On Blue
Vehicle Speed Sense Output Red/Black or Pink
Parking Brake Output Brown
Reverse Gear Output Red
Right Front + Gray
Right Front - Gray/Black
Left Front + White
Left Front - White/Black
Audio Input Red/White RCA
(Retains Factory AUX Input)
12-Pin Black
Connector
Cap or insulate if
not being used
BLUE / YELLOW KENWOOD / JVC SWC WIRED
3.5MM SWC CABLES (Option A or B)
Use the proper 3.5MM to 4-Pin cable for your radio.
Plug in the selected 3.5MM SWC cable to the 4-pin port
on the SWRTY-61J module.
Insulate with tape
if not being used
From SWRTY-61J Harness
To SWRTY-61J Module
SWRTY-61J Module
To Aftermarket Radio Camera Input
To 2 Pin Camera Power Connector
on SWRTY-61J Harness
SWRTY-61J OEM Camera Retention Harness
+12V Constant Yellow
+12V ACC Red
Ground Black
Illumination Output Orange
Amp Turn-On Blue/ White
Antenna Turn On Blue
Right Front + Gray
Right Front - Gray/Black
Left Front + White
Left Front - White/Black
Audio Input Red/White RCA
(Retains Factory AUX Input)
To SWRTY-61J Module
RADIO REPLACEMENT MODULE
TOYOTA
For JBL Amplied Systems
www.cruxint
erfacing.com
SWCGAIN
AFTERMARKET
RADIO
TY-B
Harness
TY-A
Harness
SWRTY-61J OEM Camera
Retention Harness
(See Below)
Yellow RCA
(To Aftermarket Radio Camera Input)
To 24-Pin OEM
Camera Harness
16 to 24 Pin Camera Adapter
The SWRTY-61J includes a camera harness with a 12V to 6V voltage converter to retain the OEM camera (if equipped).
Some older models use a16-Pin OEM camera connector. In this case, use the supplied 16 to 24-Pin Camera Adapter.
24-Pin
Option A:
Alpine, Clarion, JVC and Kenwood units
Option B:
Blaupunkt, Boss, Dual, Farenheit, Jensen, Pioneer,
Power Acoustik, Sony, Soundstream & Most o-brand Radios
NOTE: Aftermarket radio rear speaker output leads are not used on both harnesses. Insulate with tape.
