Side 1/4

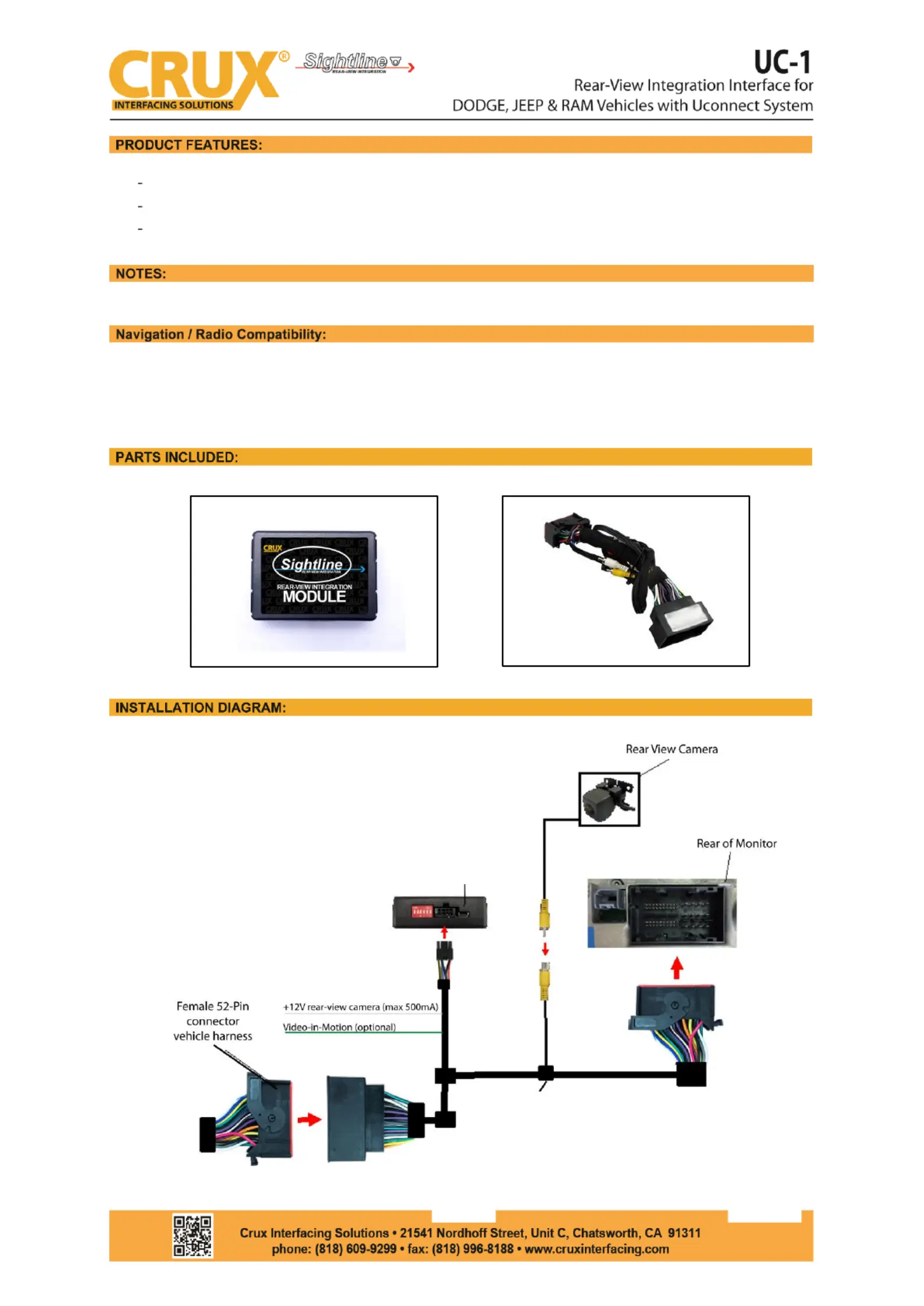

Adds reverse camera input in Uconnect systems.

Works on diesel powered trucks.

Plug and Play.

- Not compatible with vehicles with heated seats or steering wheel.

Uconnect 8.4” Screen with 52-Pin connector

Screen 6-button/2-knob with 52-Pin connector Uconnect 5”

-button/2-knob with 52-Pin connector Uconnect 4.3” Screen 6

UC-1

Harness

UC-1 Interface Module

rev.031220

1/4

UC-1 Interface Module

UC-1 Harness

Vehicle/ navigation

DIP 1

DIP 2

DIP 3

DIP 4

DIP 5

DIP 6

Video-in-motion permanent

ON

ON

OFF

OFF

OFF

OFF

Video-in-motion selective*

OFF

ON

OFF

OFF

OFF

OFF

*With DIP set to OFF, the green wire is used to activate selective video- -motion function. # 1 in

DIP switch functions of the -1 UC

DIP Activate Video in Motion 1 –

DIP Activate Rear-view camera 2 –

DIP no function 3 –

DIP no function 4 –

DIP CAN-bus termination resistor on the vehicle side 5 –

DIP CAN-bus termination resistor on the head-unit side 6 –

NOTE: If after installing the UC-1 on an 8.4” screen and the factory Bluetooth microphone audio is

low, set the DIP switches to: 1-ON, 2-ON, 3-OFF, 4-OFF, 5-ON, 6- .ON

Pin-assignment (8pin Molex)

Cable colour

Pin-No.

Assignment

● Yellow

Pin 4

CAN-HIGH connection to the head-unit–

● Blue

Pin 3

CAN-LOW connection to the head-unit –

●● Yellow/Black

Pin 8

CAN-HIGH connection to the vehicle –

●● Blue/Black

Pin 7

CAN-LOW connection to the vehicle –

● Red

Pin 1

+12V Constant

● Black

Pin 5

Ground

● Green

Pin 6

Activation of the video- -motion function in

(+12V =Video in Motion, only if DIP1=OFF)

● White

Pin 2

Reverse Trigger output (+12V DC 500mA)

(only if DIP2=ON and reverse gear engaged)

rev.031220

2/4
