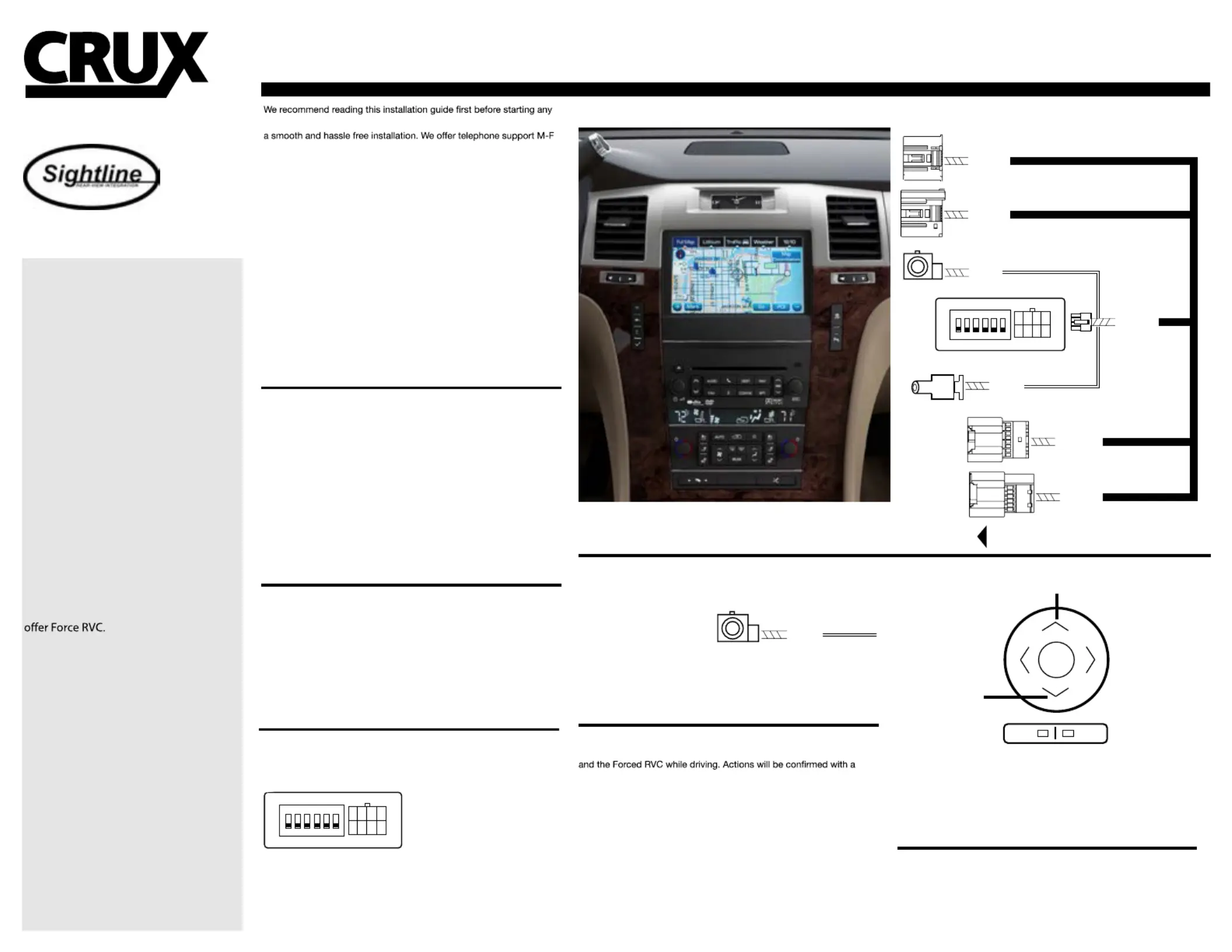

Side 1/1

TO FACTORY

HARNESS

8-PIN

(male plug)

16-PIN

(male plug)

14-PIN

(male plug)

16-PIN

(male plug)

14-PIN

(male plug)

4 5 6

1 2 3

GPS

(antenna)

GPS

(antenna)

BROWN

BLACK

SAFETY WARNING:

THIS INTERFACE IS DESIGNED TO ACTIVATE

VIDEO IN-MOTION TO ALLOW THE PASSENGER

ACCESS TO THE ADDRESS INPUT WHILE THE

VEHICLE IS IN-MOTION. THIS INTERFACE MAY

CAUSE AN ERROR WHEN SERVICED AT THE OEM

DEALER. BE AWARE THAT MOST DEALERS

WILL ATTEMPT TO VOID THE MANUFACTURERS

WARRANTY WHEN INSTALLING ANY AFTERMAR -

KET EQUIPMENT. IMPROPER USE OF THIS INTER -

FACE BY THE DRIVER MAY RESULT IN CITATION.

DRIVER MUST KEEP FULL ATTENTION ON THE

ROAD AND TAKE RESPONSIBILITY ON THE SAFETY

OF THEIR PASSENGERS.

INTERFA NG SOLUTIONSCI

VIDEO IN-MOTION ACTIVATION FOR SELECT GENERAL MOTORS LAN 29-BIT VEHICLES

BUICK:

2008 - 2015 Enclave

2008 - 2011 Lucerne

CADILLAC:

2007 - 2014 Escalade

CHEVROLET:

2007 - 2011 Avalanche

2011 - 2011 Express

2011 - 2011 Impala

2007 - 2011 Silverado

2007 - 2011 Suburban

2007 - 2011 Tahoe

2009 - 2015 Traverse

GMC:

2007 - 2015 Acadia

2009 - 2011 Savana

2007 - 2011 Sierra

2007 - 2011 Yukon

HUMMER:

2008 - 2009 H2

SATURN:

2009 - 2010 Outlook

VIMGM-94

work. Following these instructions from “Start” to” Finish” will ensure

9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.

PARTS INCLUDED:

(1) GM-94 Interface

(1) GM-94 Harness

(1) Instruction

PRECAUTIONS:

- Remove the negative side of the battery to avoid any short circuits

during the installation.

- Do not install the interface near any major components or near the

HVAC system. This may cause damage or overheating to the vehicle.

- Do not disconnect the airbag connection behind the radio panel.

PRELIMINARY:

Please read the entire manual before installing this interface.

Vehicle must be equipped with factory DVD changer.

This interface does not activate DVD reader.

INSTALLATION OVERVIEW

TROUBLE SHOOTING

1. No video display while driving.

- Make sure the dip switches are in the proper location.

ACTIVATE AND DEACTIVATE OPERATION

Using the side mirror control you can activate and deactivate the VIM

“HIGH” or “LOW” tone sound.

High Tone = Activated

Low Tone = Deactivate

For Video In-Motion:

Press the UP arrow to enable the VIM.

Press the DOWN arrow to disable the VIM.

rev. 121620

INSTALLING THE INTERFACE:

1. Remove the factory radio to gain access to the factory connectors.

2. Remove the 14 and 16-Pin connectors from behind the radio.

2. Make the T-Harness connections behind the factory radio.

(if the connectors do not match please contact tech support)

4. Set the dip switches to permanently activate the VIM feature.

5. Test the Navigation address input while the car is in-motion to verify

the VIM is active.

Dip 1: This dip switch is the permanent solution for keeping the VIM

unlocked.

ALL OTHER DIP SWITCHES

MUST BE SET TO OFF!

SETING DIP SEITCH TO “ON” WILL DISABLE THE SIDE

MIRROR CONTROLS.

TO KEEP THE CONTROLS ACTIVE LEAVE THE DIP SWITCH OFF.

SETTING THE DIP SWITCHES

ENABLE

(Video In-Motion)

DISABLE

(Video In-Motion)

LEFT RIGHT

CENTER

Side mirror control must be set in the center in order

to use the functions. Indicator lights must be OFF.

4 5 6

1 2 3

WHEN TO USE THE GPS ANTENNA OPTION

The attached GPS antenna is to be used if the interface is having

problems with the Video In-Motion feature while the vehicle is moving.

Not every vehicle will need to

have this GPS harness

connected.

We recommend leaving the cable disconnected during the install.

Test the VIM while driving and if no issues with the VIM staying active,

leave the GPS antenna alone. Only when the VIM deactivates while the

vehicle is in motion, then you connect the GPS antenna.

GPS

(antenna)

NOTE:

This Interface DOES NOT
