Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.021919

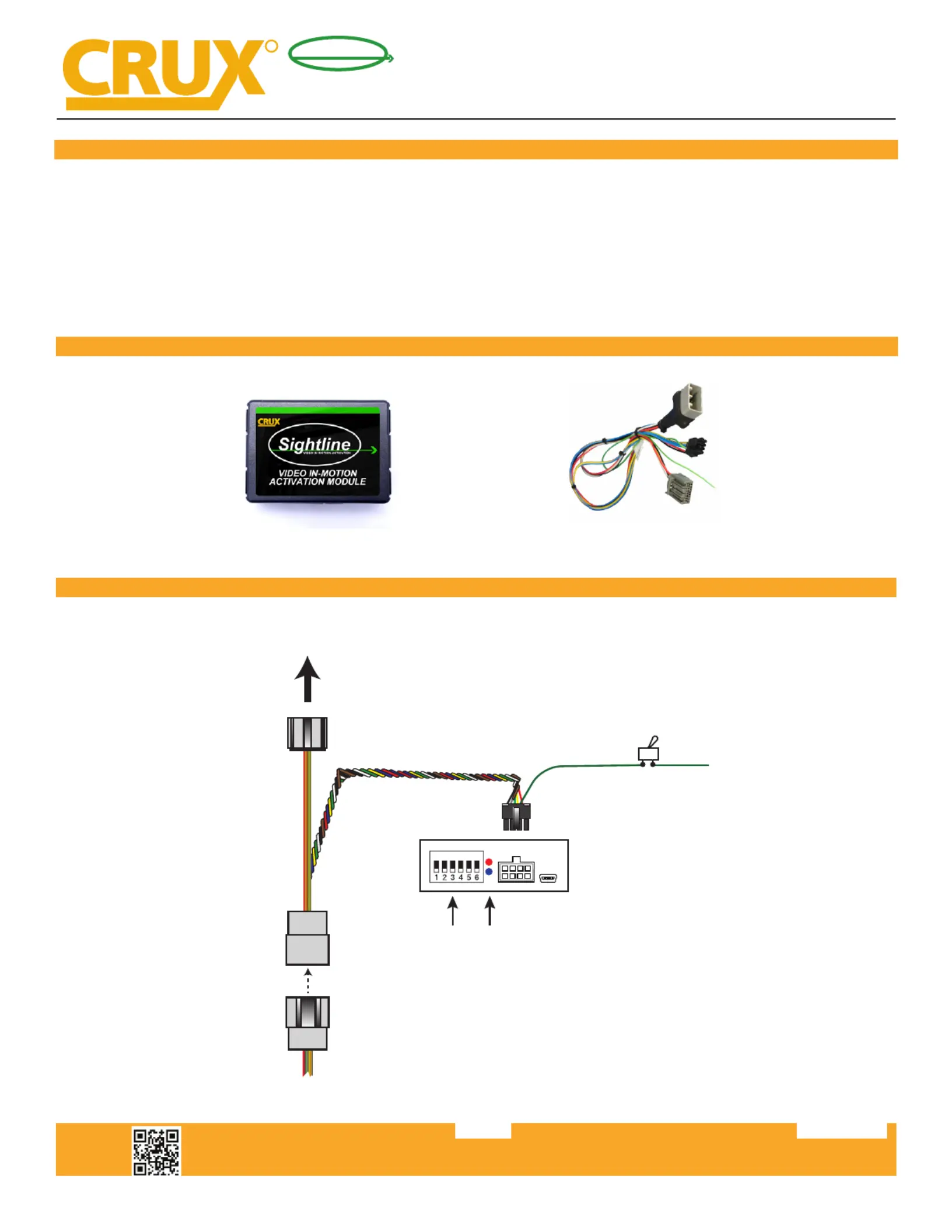

VIMVL-98A
VIM Activation for Select
VOLVO Vehicles with RTI 2011 Navigation System
1 of 2
- Retains funconality of Factory-installed Navigaon System for passenger access at anyme
- Allows onscreen access to Factory Bluetooth Keypad*
- Designed for OEM equipment only
*Subject to capability of Factory-installed Navigaon System.
PRODUCT FEATURES:
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
PARTS INCLUDED:
VIMVL-98A MODULE VIMVL-98A HARNESS
INSTALLATION DIAGRAM:
Installaon of the VIMVL-98A is done at the factory navigaon screen 16 pin connector.
TO FACTORY
SCREEN
FROM FACTORY
RADIO HARNESS
DP
ON
DIP
SWITCH
LED*
*LED RED = Power ON Status
LED BLUE = Data Bus ON Status
8-Pin Molex
GREEN WIRE
NON PERMANENT
ACTIVATION OF VIDEO BYPASS
(See VIM Activation on page 2)
+12V ACC
(Toggle switch NOT included)
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.021919
2 of 2
VEHICLE APPLICATIONS:
R
INTERFACING SOLUTIONS
Sightline
VIDEO IN-MOTION ACTIVATION
DIP SWITCH SETTINGS:
VIMVL-98A
VIM Activation for Select
VOLVO Vehicles with RTI 2011 Navigation System
DIP# DIP#1 DIP#2 DIP#3 DIP#4 DIP#5 DIP#6
Vehicles extra equipment WITHOUT
(lane pilot, distance assistant, city safety
system), V40 (model year 2013)
ON ON ONOFF OFF OFF
Vehicles extra equipment (lane pilot, WITH
distance assistant, city safety system)
OFF
OFF OFF OFF
ON ON
VIM ACTIVATION:
Vehicles Without Extra Factory Equipment and V40 (model year 2013)
On vehicles without extra factory equipment and V40 (model year 2013) set DIP#1 to . The video-in-moon ON
funcon is acvated permanently without disturbing the navigaon performance.
The loose GREEN wire is not used and must be insulated.
Vehicles With Extra Factory Equipment
On vehicles with extra factory equipment set DIP#1 to . Use the GREEN wire on the VIMVL-98A harness to OFF
acvate the video-in-moon funcon.
Connect a toggle switch between the GREEN wire and +12V ACC power:
● +12V = VIM is acvated
● 0V = VIM is not deacvated
NOTE: As long as the video-in-moon funcon is acvated, the navigaon will NOT work!
Lane pilot, distance assistant and city safety system will not work while VIM funcon is acvated!
VOLVO
2011-2013 S Series
2011-2013 V Series
2011-2013 XC60
2011-2013 XC70
Compable with RTI 2011 Navigaon System
