VRFAD-81C
Front and Rear View Integration Interface
for AUDI Vehicles with MMI/MIB/MIB2 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0224201 of 11
- Adds front and back up camera inputs plus an extra video input
1
.
- Uses the steering wheel control buons or radio buons to toggle between the inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacve parking guide lines with calibraon funcon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
PRODUCT FEATURES:
PARTS INCLUDED:

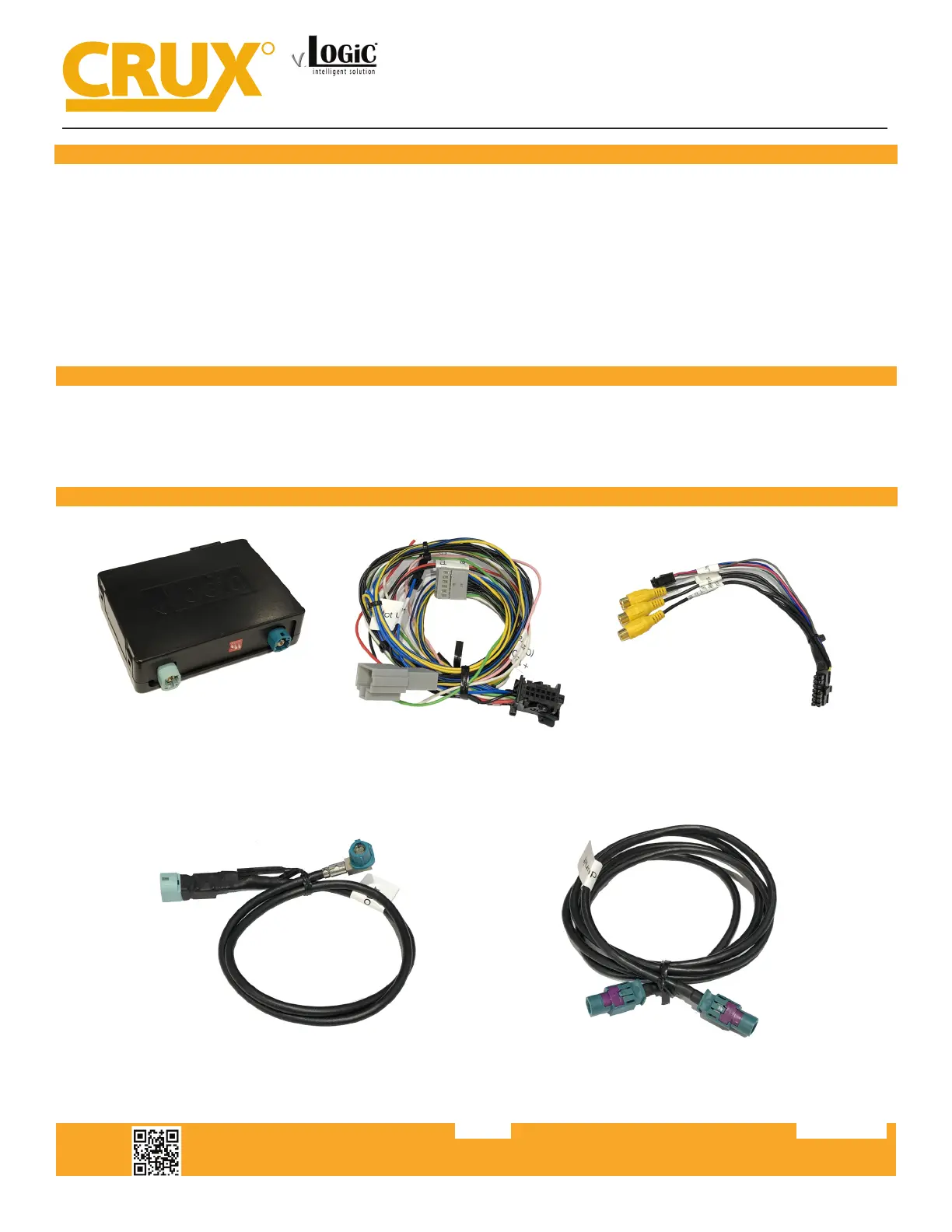

VRFAD-81C Module VRFAD-81C Harness Video Harness
LVDS1 Cable (to vehicle) LVDS 2 Cable (to radio)
1. Factory Audio Aux Input is required if video input will be used for AV sources.
2. The VRFAD-81C connects at the mulmedia player located in the glove box.
NOTES:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022420
2 of 11

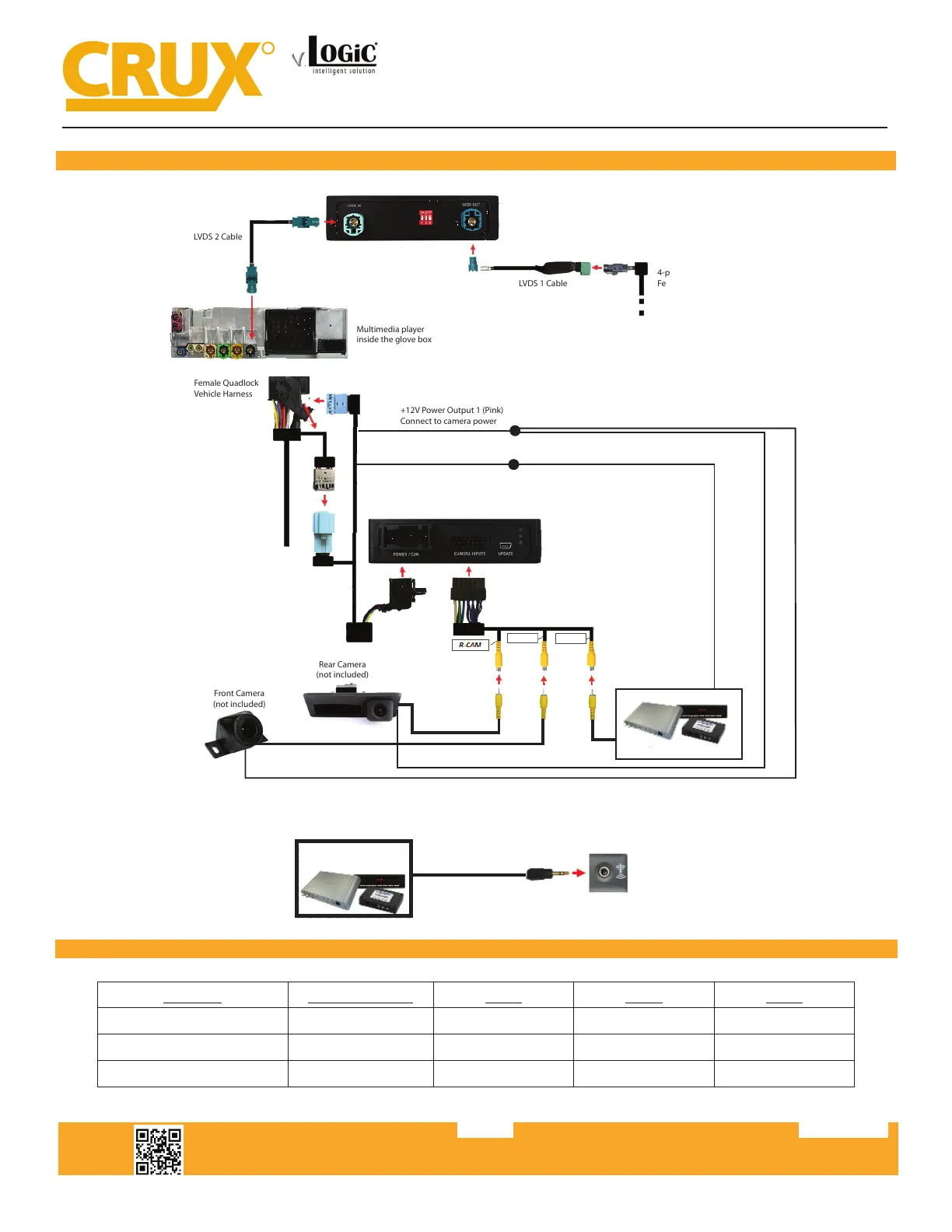

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
Audi A3 (8V)
7” ON OFF OFF
Audi A4 (8W)
8.3” ON ON ON
Audi Q7 (4M)
8.3” ON OFF ON
VRFAD-81C
Front and Rear View Integration Interface
for AUDI Vehicles with MMI/MIB/MIB2 Systems
Rear Camera
(not included)
Front Camera
(not included)
LVDS 1 Cable
LVDS 2 Cable
4-pin HSD
Female LVDS Vehicle Harness
+12V Power Output 1 (Pink)
Connect to camera power
Female Quadlock
Vehicle Harness
Multimedia player
inside the glove box
AV Sources*
Front Cam Video In
+12V Power Output 2 (Green)
Connect to AV Source Power
AV Sources
Vehicle AUX Input
*NOTE: Vehicle must have Auxiliary Audio Input for the AV source.
