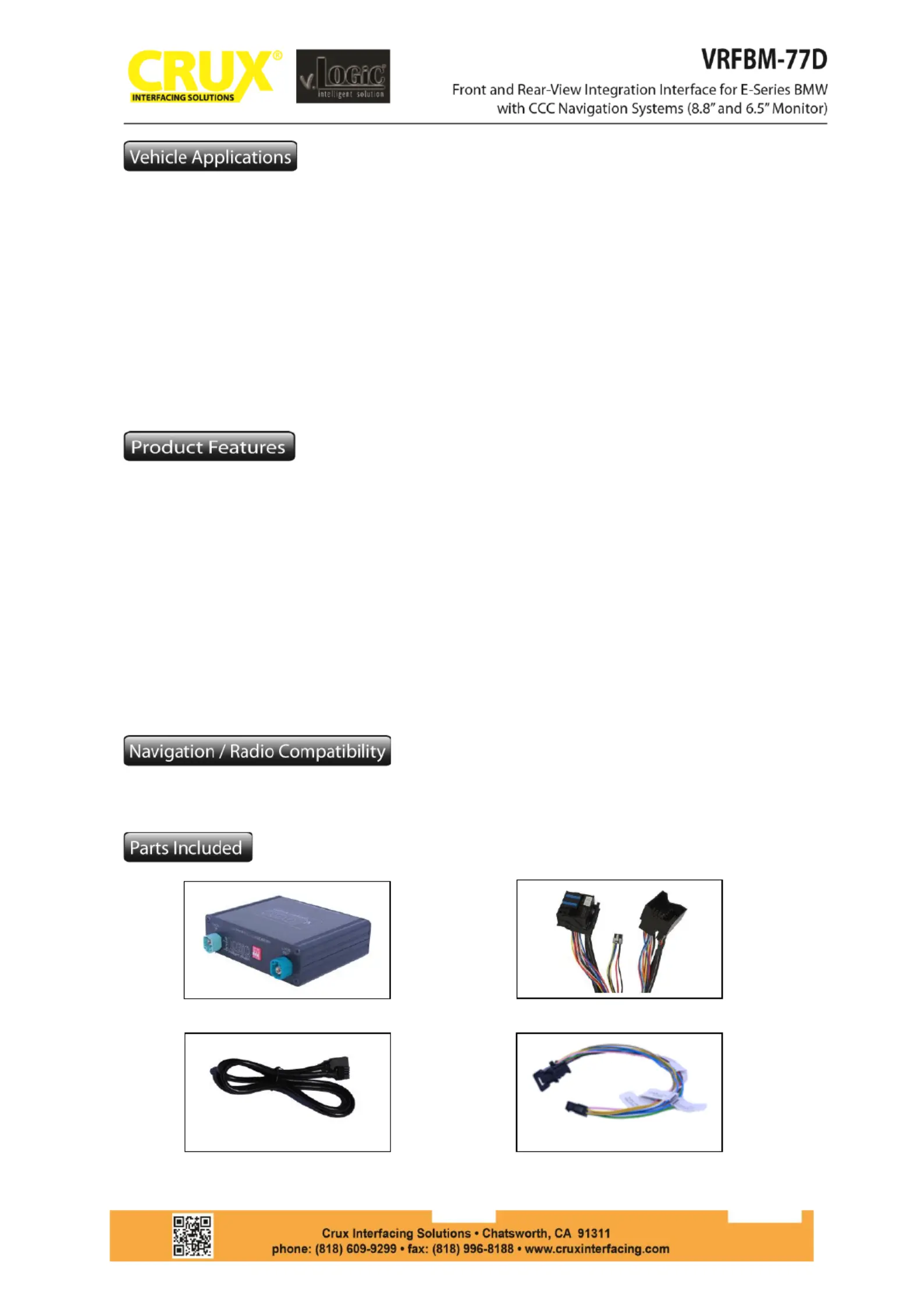

Side 1/10

BMW

1 SERIES

2007 2011 - 1 Series 3-door hatchback

2007 2013 - 1 Series 2-door coupe (1M)

2004 2012 - 1 Series (5-door)

2008 - 1 Series Convertible Up

3 SERIES

2005 - 2011 3 Series Sedan

2005 - 2011 3 Series Wagon

2006 - 2013 3 Series Coupe

2007 - UP 3 Series Convertible

5 SERIES

2004 - 2010 5 Series Sedan

2004 2007 5 Series Wagon –

6 SERIES

2004 - 2010 6 Series Coupe

2004 - 2010 6 Series Convertible

X SERIES

2007 - 2013 X5 Sports Activity Vehicle

2008 2011- Sports Activity Coupe X6

• Plug and Play Installation

• Media Controller with controls by factory infotainment (iDrive)

• Rear-view camera input

• Front camera input

• Front camera input can also be used as an Auxiliary Video Input

• Manual switching to rear-view camera (only for vehicles with PDC button)

• Manual return from rear-view and front camera (cancellation of automatic switching)

• 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera,

reverse gear)

• Picture- -picture mode combining aftermarket rear-view and front camera picture(s) with factory in

parking sensor graphics

• Compatible with all factory video accessories (e.g. rear-view camera, Top-View Camera System)

• E-series with Navigation System or radio with 6.5 8.8 and 10-PIN LVDS Connector“ or “ monitor

• NOT compatible with Alpine made factory screen.

1 / 10

Rev.42121

Interface Box

BM-77D Harness

Power/CAN Harness

LVDS Cable 10

See Warning Below

Setting the DIP Switches of the VRFBM- 77D

DIPs and 2 on the back of the interface box are used to set the monitor type The default setting is: 1 .

Vehicle / Navigation

Dip 1

Dip 2

Dip 3

M- Version 1 ASK

OFF

M-ASK Version 2

OFF

CCC Version 1

OFF

CCC Version 2

OFF

After each change of the DIP Switch settings you have to execute a power reset of the interface!

WARNING:

1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has

been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have

been made according to the wiring diagram above or the factory display will be damaged;

2. DO NOT connect the 10 Pin LVDS Cable when the Radio is Powering ON or the factory display will be damaged;

3. When the Radio CD Headunit is active (power ON ), DO NOT disconnect any of the 10 pin LVDS Connections ed

or the factory display will be damaged.

2 / 10

Rev.42121
