CDR-31C Cargo Camera
for RAM Trucks
CDR-02 Tailgate Handle Camera CUB-15 Adjustable Angle Camera
VRFCH-75L
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022120
1 of 4
- Adds a front, backup and cargo camera input.
- Adds an audio/video input.
- Uses a factory steering wheel control buon to force view the video sources. (except OEM backup camera. See page 3)
- Retains factory backup camera if present.
- Plug and play installaon.
PRODUCT FEATURES:
PARTS INCLUDED:

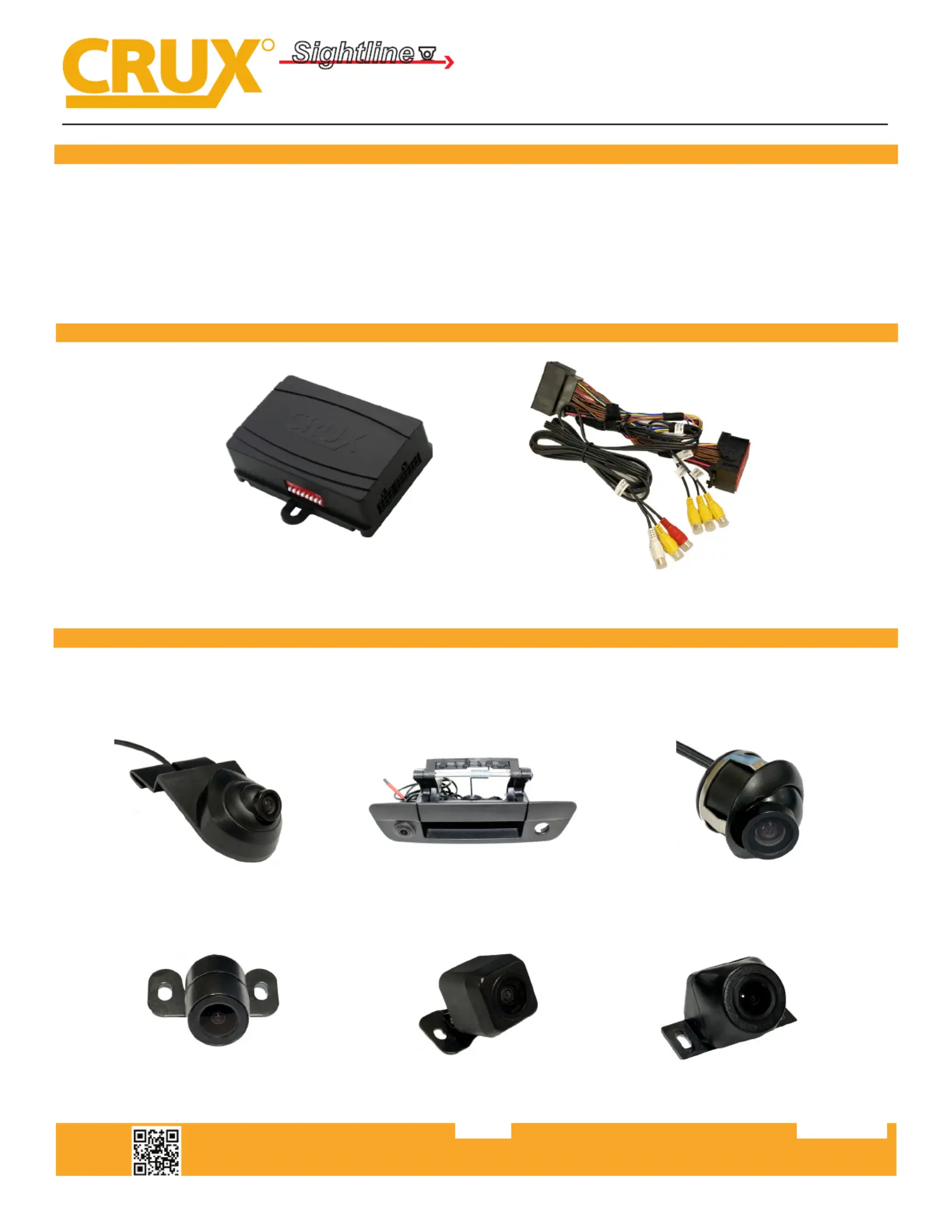

VRFCH-75L Module VRFCH-75L Harness
OPTIONAL ADD-ON CAMERAS:
Oponal add on cameras are available to complete the mul-view capability of the VRFCH-75L. Cameras available
and include:sold separately
CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.022120
2 of 4

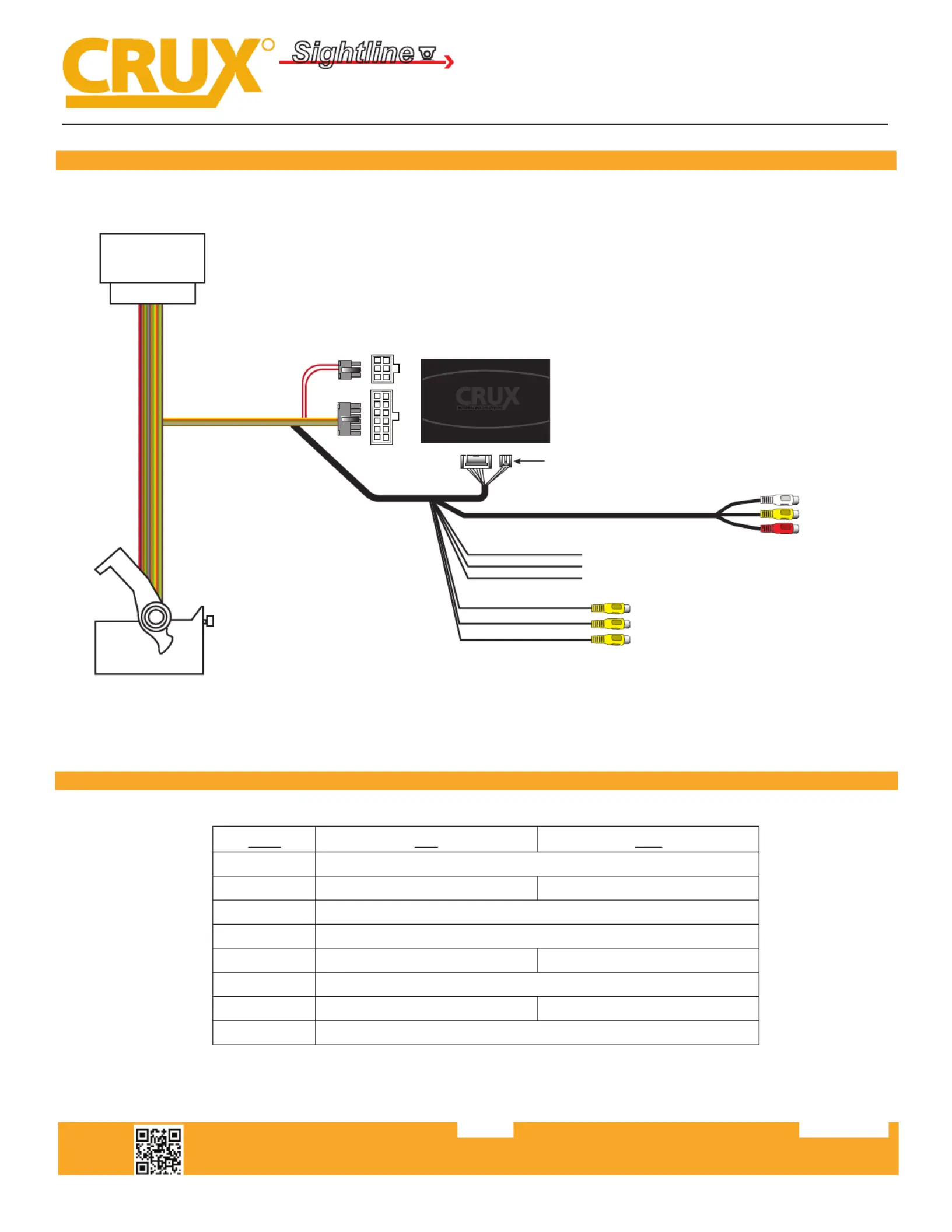

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
Sightline
Multi View Integration
Front Camera Input
Aftermarket Backup Camera Input
Cargo Camera Input
Audio/Video
Input
Front and Rear Camera Power Output 12V (purple/white)
Cargo Output 12V (orange/white)
Video AUX Power Output 12V (red/white)
To Vehicle Harness
To Radio
Connect this 6-pin plug if OEM
backup camera is being used
DIP SWITCH SETTINGS:
DIP# ON OFF
1No Funcon – Leave OFF
2 Front Camera ON Front Camera OFF
3No Funcon – Leave OFF
4No Funcon – Leave OFF
5 Cargo Camera ON Cargo Camera OFF
6No Funcon – Leave OFF
7 AUX A/V ON AUX A/V OFF
8 Set to OFF
VRFCH-75L
Front & Rear + 1 Video Camera Integration Interface with A/V Input for
DODGE, JEEP & RAM Vehicles with Uconnect 8.4” Systems
