Side 1/3

VRFCH-75U

Front View Integration Interface + 2 AV Inputs

for Select Jeep Compass and Renegade with Uconnect

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.012819

1 of 3

• Front View Camera + 2 AV nputs

• Automacally switches screen to Rear-view when Reverse gear is engaged and to Front camera view when gear is

engaged to drive

• Manual acvaon of the front camera using the steering wheel control buon

• Plug & Play Installaon

• Video in Moon funcon

PRODUCT FEATURES:

PARTS INCLUDED:

VRFCH-75U Module VRFCH-75U Harness Video Harness Audio Harness

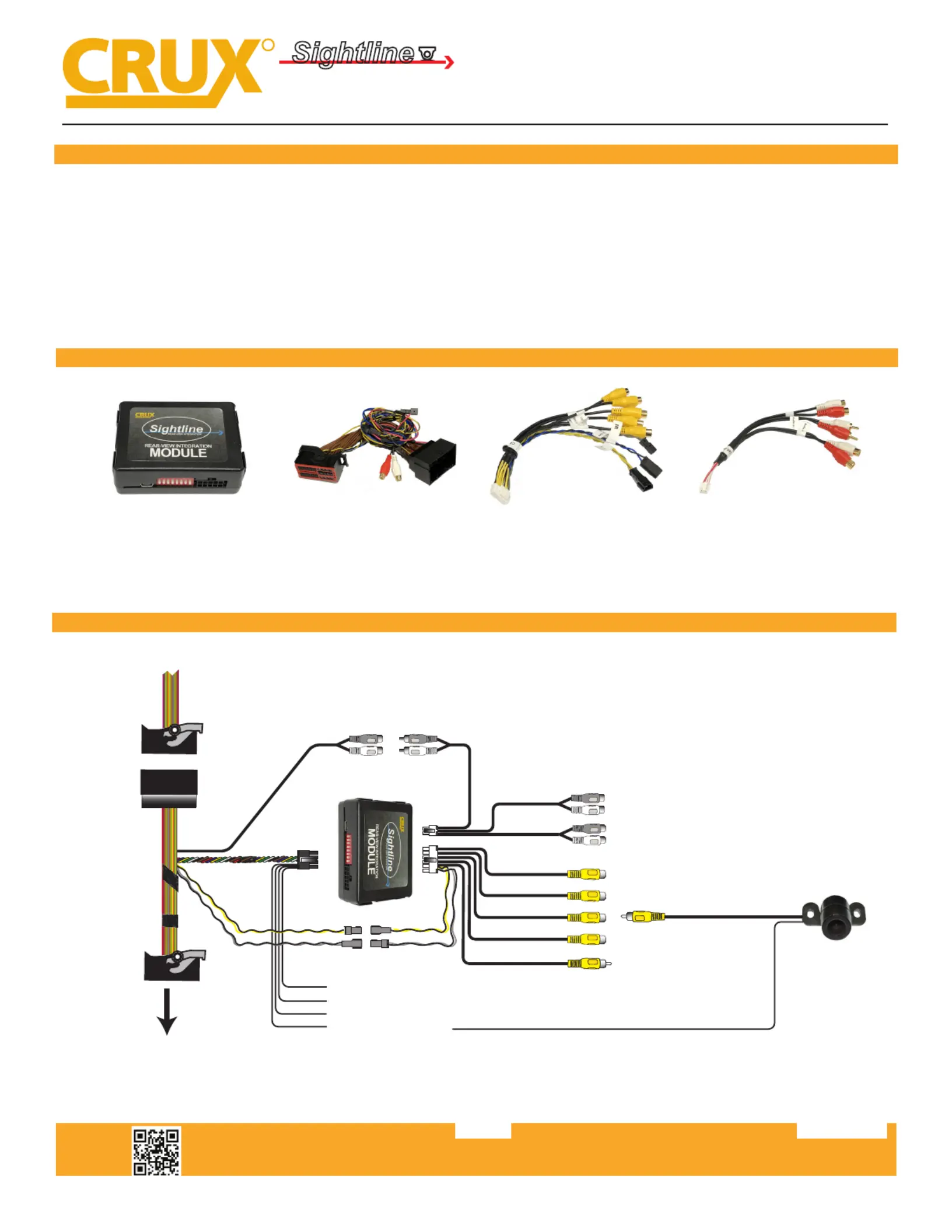

INSTALLATION DIAGRAM:

To Radio

OEM Radio

Harness

8-Pin Molex

ACC (Red)

12V Constant (Yellow)

Ground (Black)

12V Camera Power (Blue)

Audio In 1

Audio In 2

Video 1

Video 2

Front Camera

Video 4

Video Out

Not Used

Front Camera

(not included)

Audio IN to Radio Audio OUT from Interface

DIF. Video IN

DIF. Video OUT

For vehicles with factory installed backup camera ONLY.

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.012819

2 of 3

INTERFACING SOLUTIONS

Sightline

Multi View Integration

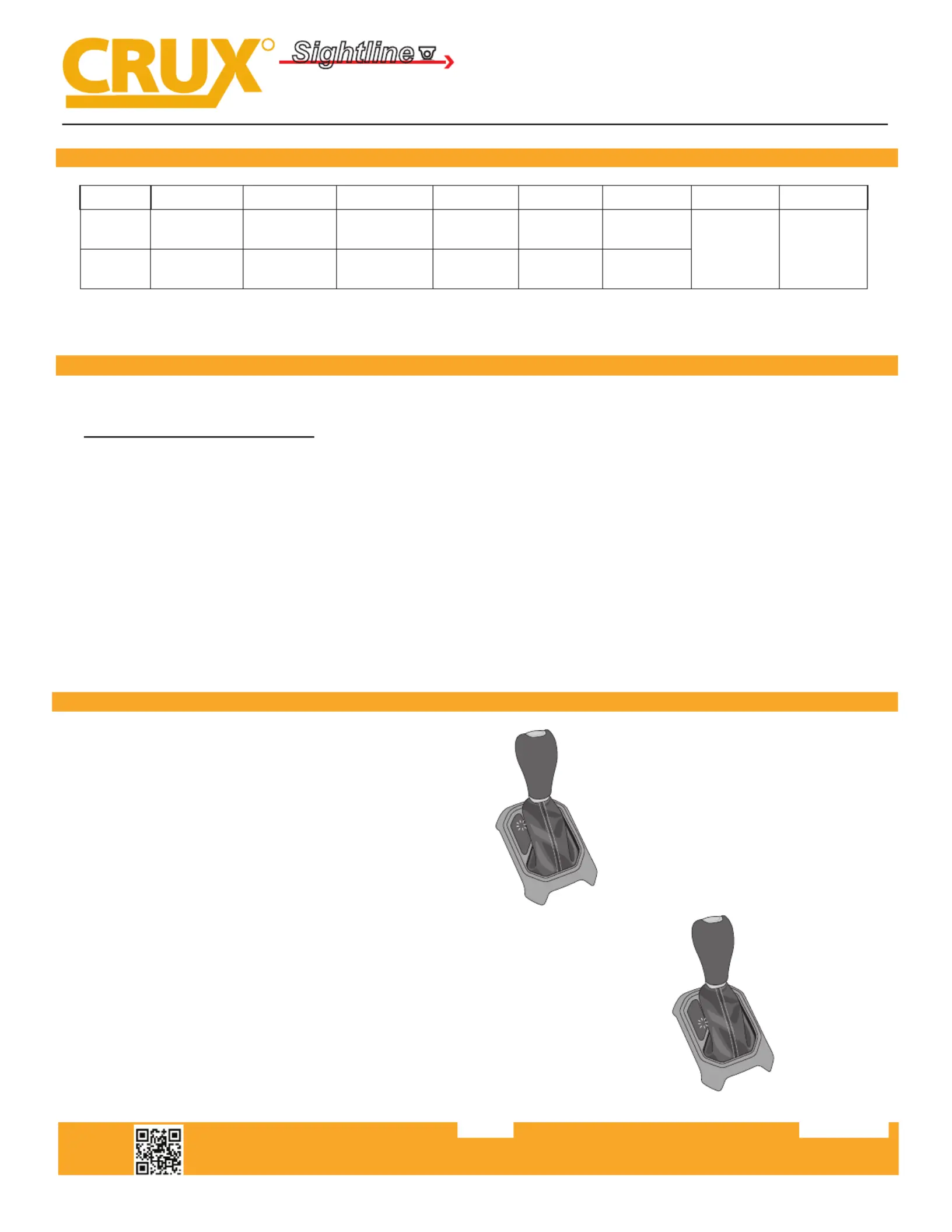

DIP SWITCH SETTINGS:

INSTALLATION INSTRUCTIONS:

INSTALLING THE INTEFACE MODULE

1. Carefully remove the radio to gain access to the radio harness.

2. Unplug the radio connector and plug it into the female connector of the VRFCH-75U T-harness.

3. Plug in the T-harness (10-pin Molex connector), Video and Audio harnesses to the VRFCH-75U module.

4. Install the front camera (not included) following the manufacturer’s instrucons.

5. Aer installaon of the front camera, plug in the camera’s video RCA to the female RCA (Front Camera) and connect the

camera power to the BLUE wire (Front Camera Power 12V) of the VRFCH-75U harness.

6. Plug in any other Audio/Video devices to be installed to the AV inputs of the VRFCH-75U.

7. Connect the AUDIO IN and AUDIO OUT on the VRFCH-75U harness. See diagram on page 1.

8. Connect the DIF. Video IN and DIF. Video OUT connectors. See diagram on page 1.

9. Set the DIP switches on the VRFCH-75U module following the chart above.

10. Connect the ACC, 12V Constant and Ground wires of the VRFCH-75U to the vehicle power. See diagram on page 1.

SETTING DIP 1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8

AV 1 Enabled AV 2 Enabled

Front Camera

Enabled

Set to OFF Set to OFF

Manual

Transmission

Brightness

Set to ON*

Set to ON

OFF

AV 1 Disabled AV 2 Disabled

Front Camera

Disabled

Set to OFF Set to OFF

Automac

Transmission

The interface module is installed behind the headunit.

VRFCH-75U

Front View Integration Interface + 2 AV Inputs

for Select Jeep Compass and Renegade with Uconnect

*We recommend seng DIP #7 to ON, however, if the video does not display correctly, set DIP #7 to OFF instead.

OPERATION:

1. Pung the gear in REVERSE automacally shows the rear

camera onto the display.

2. If a front camera is installed, the VRFCH-75U automacally shows the front camera for

10 seconds or unl the vehicle reaches a speed of 10 MPH aer a reverse process.
