CDR-31C Cargo Camera

for RAM Trucks

CDR-02 Tailgate Handle

Camera for RAM Trucks

Jeep Wrangle Spare Tire

Mount Camera

CUB-15 Adjustable

Angle Camera

VRFCH-75Y

Front & Rear + 1 Video Camera Integration Interface with A/V Input for

CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

1 of 5

- Adds front and backup camera input.

- Adds an extra video input for another camera.

- Adds an audio/video input and output.

- Uses the steering wheel control buons to toggle between the sources.

- Retains factory backup camera if present.

PRODUCT FEATURES:

PARTS INCLUDED:

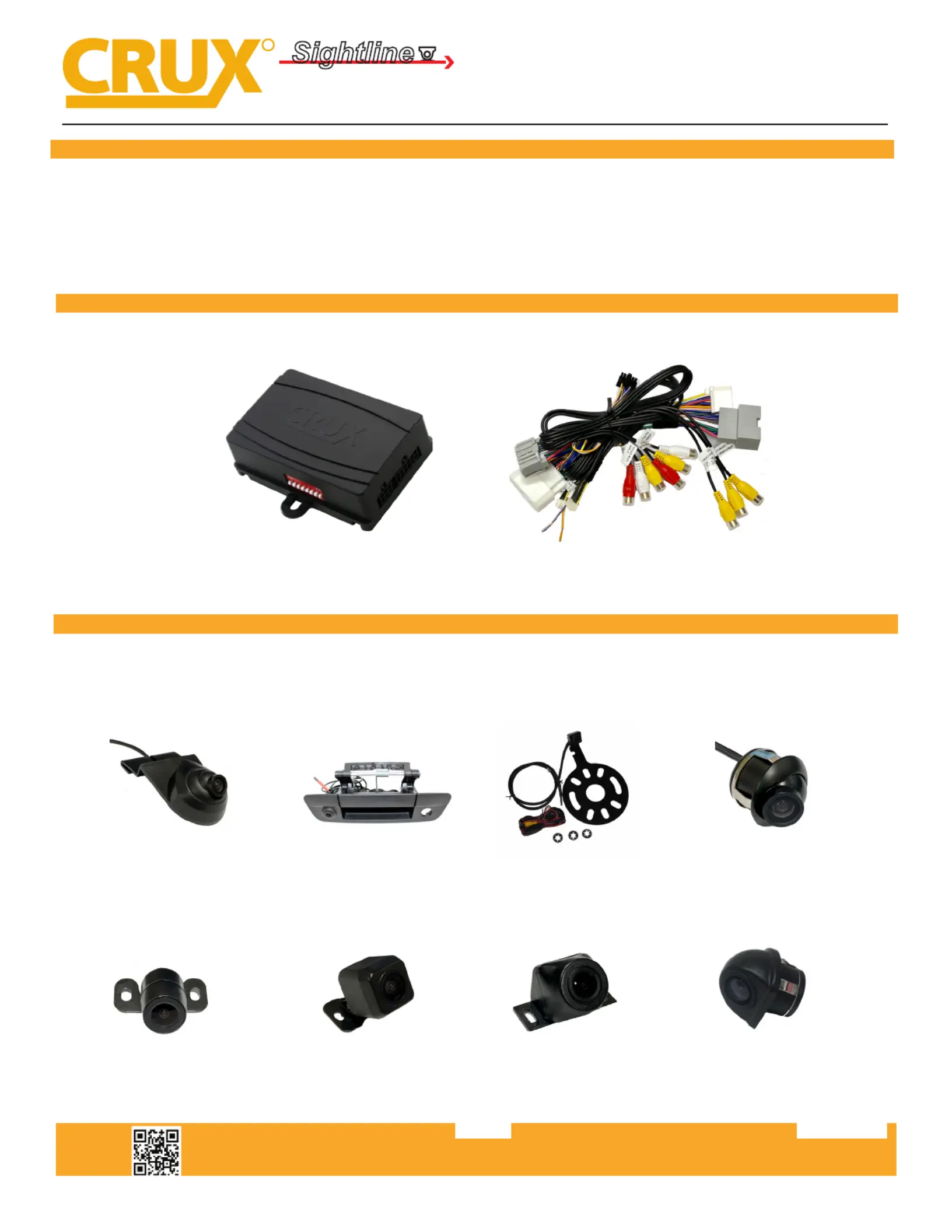

VRFCH-75Y Module VRFCH-75Y Harness

OPTIONAL ADD-ON CAMERAS:

Oponal aermarket add on cameras are available for the VRFCH-75Y. Cameras available and sold separately

include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front

Camera

CFF-02 Square Body Front

Camera

CFF-03 Grille Mount Front

Camera

CUL-16 Universal Lip Mount

Camera

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

2 of 5

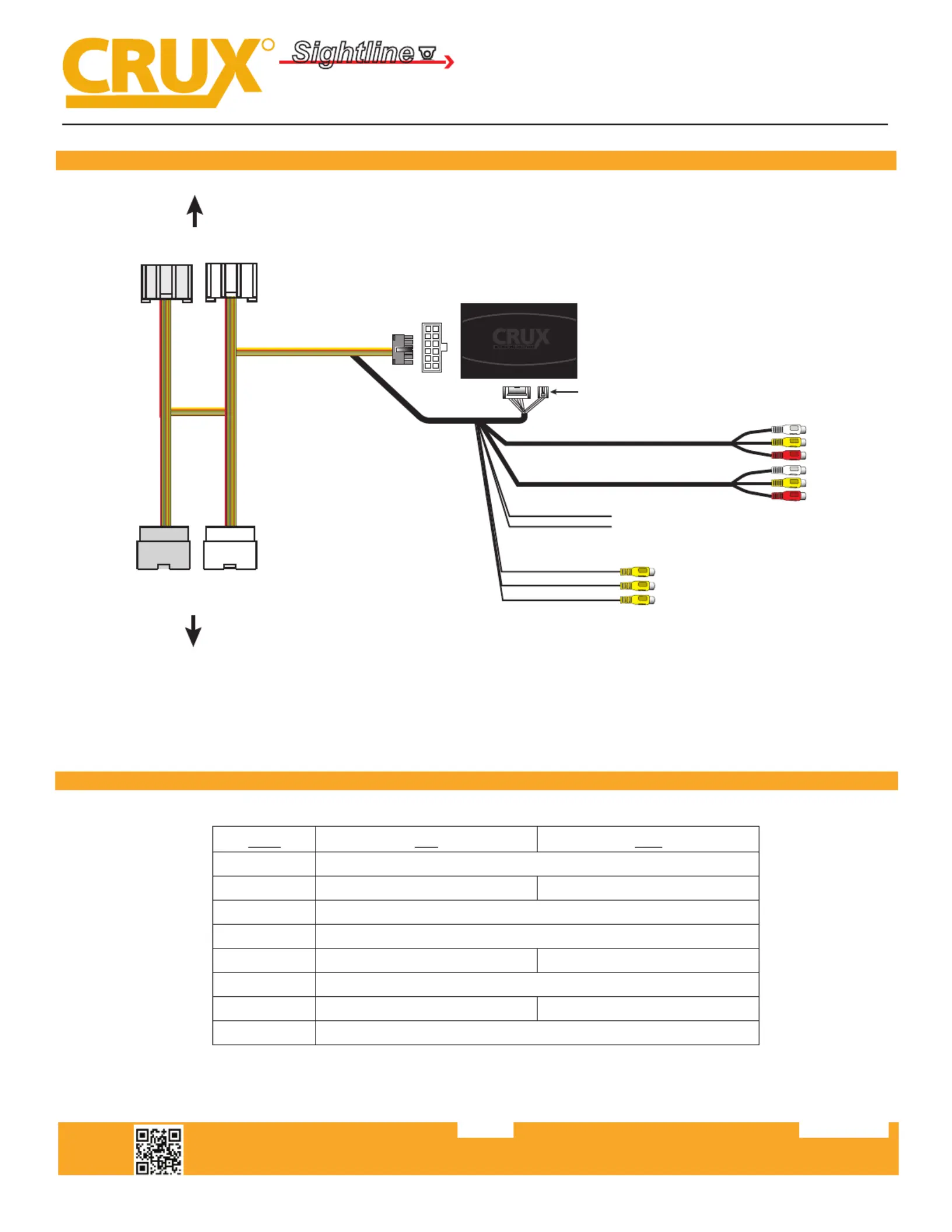

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Front Camera Input

Aftermarket Backup Camera Input

Video Input

Audio/Video

Input

Front and Rear Camera Power Output 12V (purple/white)

Video Input Power Output 12V (orange/white)

Connect this 6-pin plug if OEM

backup camera is being used

Audio/Video

Output

TO RADIO

WHITE

22-PIN

(MALE)

GRAY

22-PIN

(MALE)

WHITE

22-PIN

(FEMALE)

GRAY

22-PIN

(FEMALE)

TO FACTORY

HARNESS

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3 Set to OFF

4 Set to OFF

5 Video Input ON Video Input OFF

6 Set to OFF

7 AUX A/V ON AUX A/V OFF

8 Set to OFF

VRFCH-75Y

Front & Rear + 1 Video Camera Integration Interface with A/V Input for

CHRYSLER, DODGE, JEEP & RAM Vehicles with MyGig Radios
