VRFGM-80J

Front and Rear View Camera Integration Interface for

GM LAN 29-Bit Vehicles 2006-2015

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

1 of 5

- Adds a front and rear camera input plus 1 extra video input for another camera or video source*.

- Uses a factory steering wheel control buon to force view the aermarket cameras and/or video source.

- Ability to toggle from back-up camera to the extra video input while in reverse gear. Perfect for adding a cargo or

trailer camera.

- Plug and play installaon.

PRODUCT FEATURES:

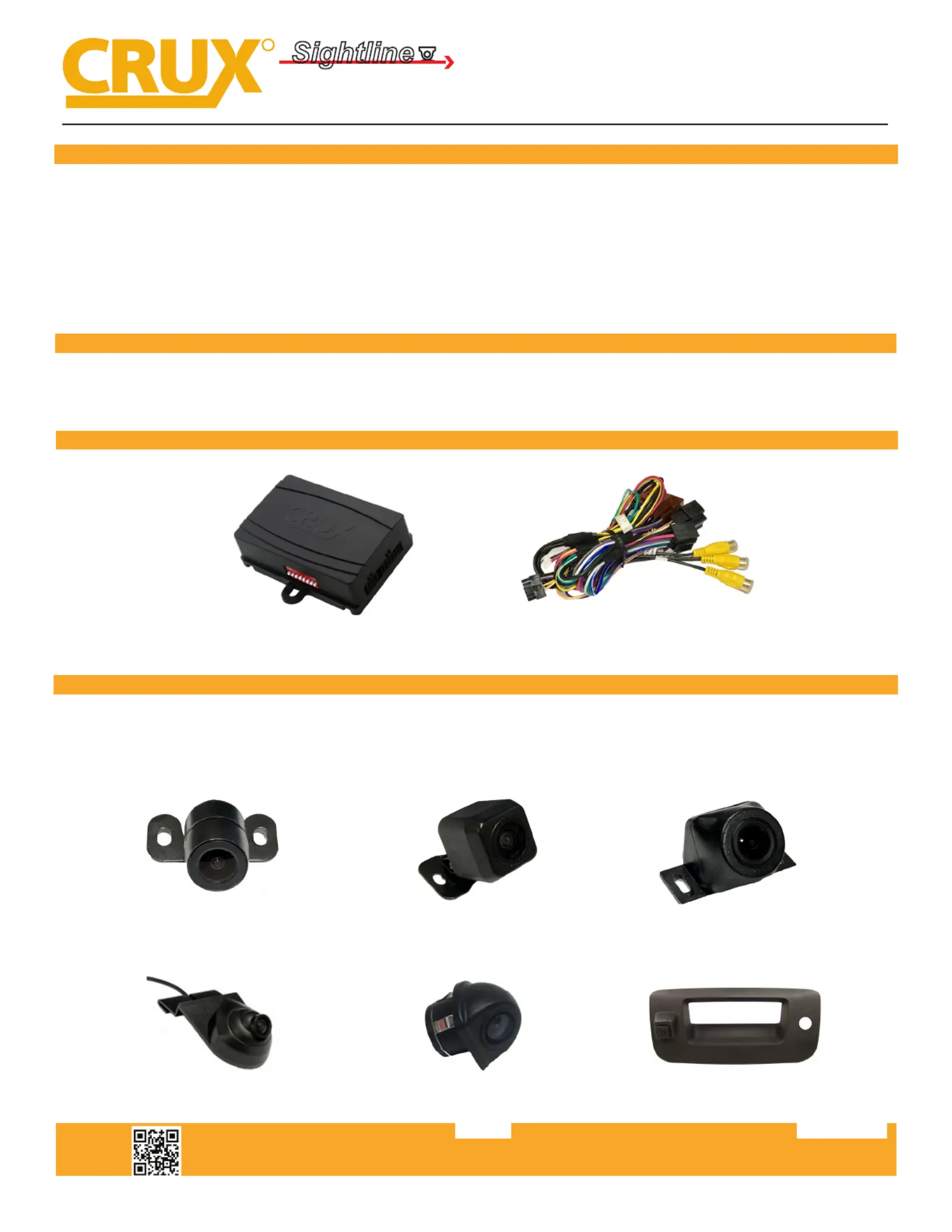

PARTS INCLUDED:

VRFGM-80J Module VRFGM-80J Harness

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available for the VRFGM-80J. Cameras available and . Please visit sold separately

www.cruxinterfacing.com for a complete list of cameras available for your vehicle. Below are some sample

cameras that can be used :

CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

CGM-03 Cargo Camera CUL-16 Lip Mount Rear Camera CGM-02S Tailgate Handle Camera

*Factory Audio Aux Input is required if video input will be used for AV sources.

NOTE:

If your vehicle is not equipped with a factory backup camera, you will need to have the radio coded for a backup

camera at the dealership before using the VRFGM-80J.

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

2 of 5

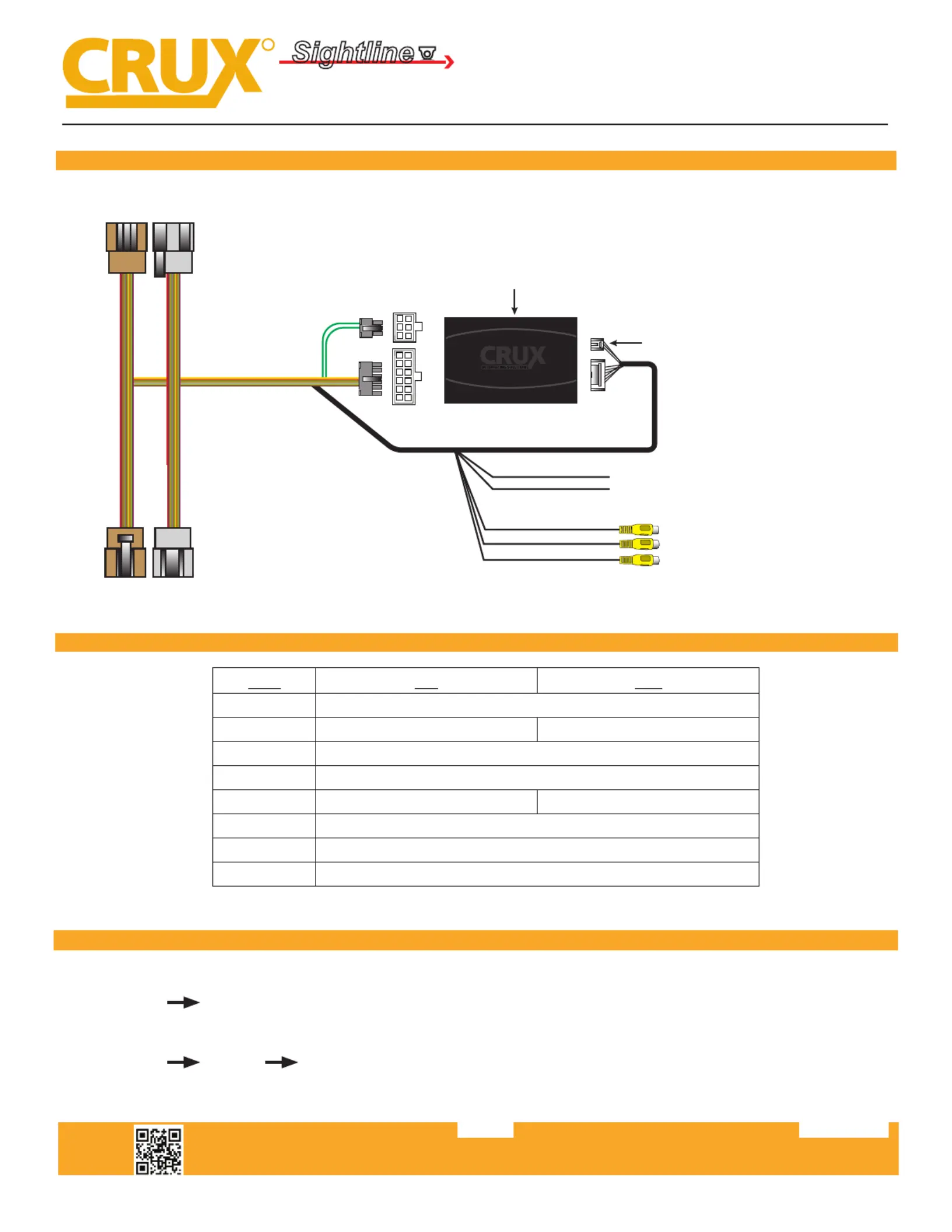

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3 No Funcon – Leave OFF

4No Funcon – Leave OFF

5Video Input / Cargo Camera ON Video Input/Cargo Camera OFF

6 No Funcon – Leave OFF

7No Funcon – Leave OFF

8Set to ON

VRFGM-80J

Front and Rear View Camera Integration Interface for

GM LAN 29-Bit Vehicles 2006-2015

Front Camera Input

Video / Cargo Camera Input

Aftermarket Backup Camera Input

Front and Rear Camera Power Output 12V (purple/white)

Cargo Camera Power Output 12V (orange/white)

To Vehicle Harness

Connect this 6-pin plug if OEM

backup camera is being used

DIP Switches

FORCED VIEW CAMERA SEQUENCE:

Using OEM backup Camera

FRONT VIDEO INPUT/CARGO CAMERA

Using Aermarket backup Camera

FRONT BACKUP VIDEO INPUT/CARGO CAMERA
