VRFPR-66C
Front and Rear View Camera Integration Interface
for Select PORSCHE Vehicles with PCM4 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0115191 of 11
PRODUCT FEATURES:

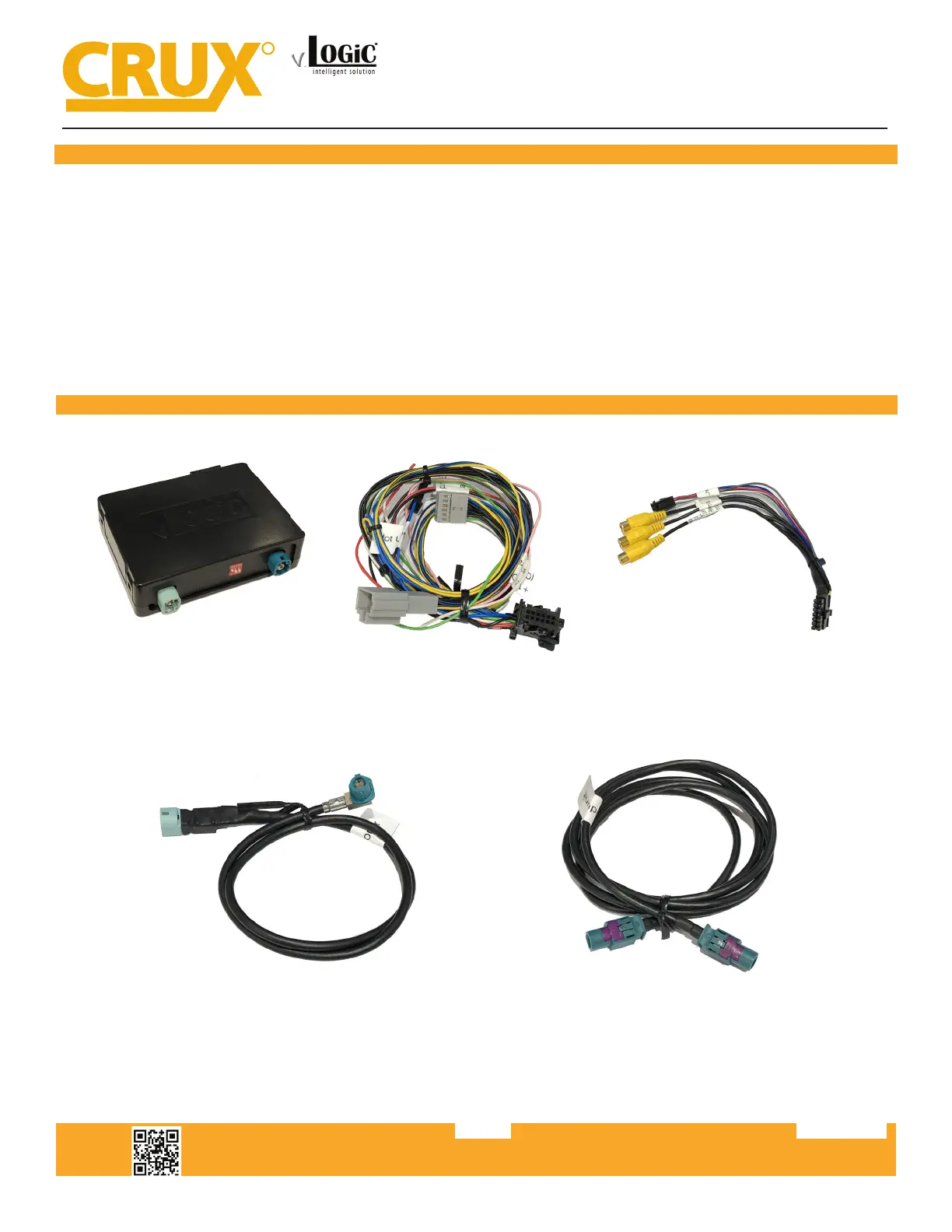

PARTS INCLUDED:
VRFPR-66C Module VRFPR-66C Harness Video Harness
LVDS1 Cable LVDS 2 Cable
- Adds front and back up camera inputs plus an extra video input*.
- Uses the steering wheel control buons or radio buons to toggle between the inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacve parking guide lines with calibraon funcon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
*Factory Audio Aux Input is required if video input will be used for AV sources.
Crux Interfacing Solutions • 6860 Canby Ave., Suite 104, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.011519
2 of 11

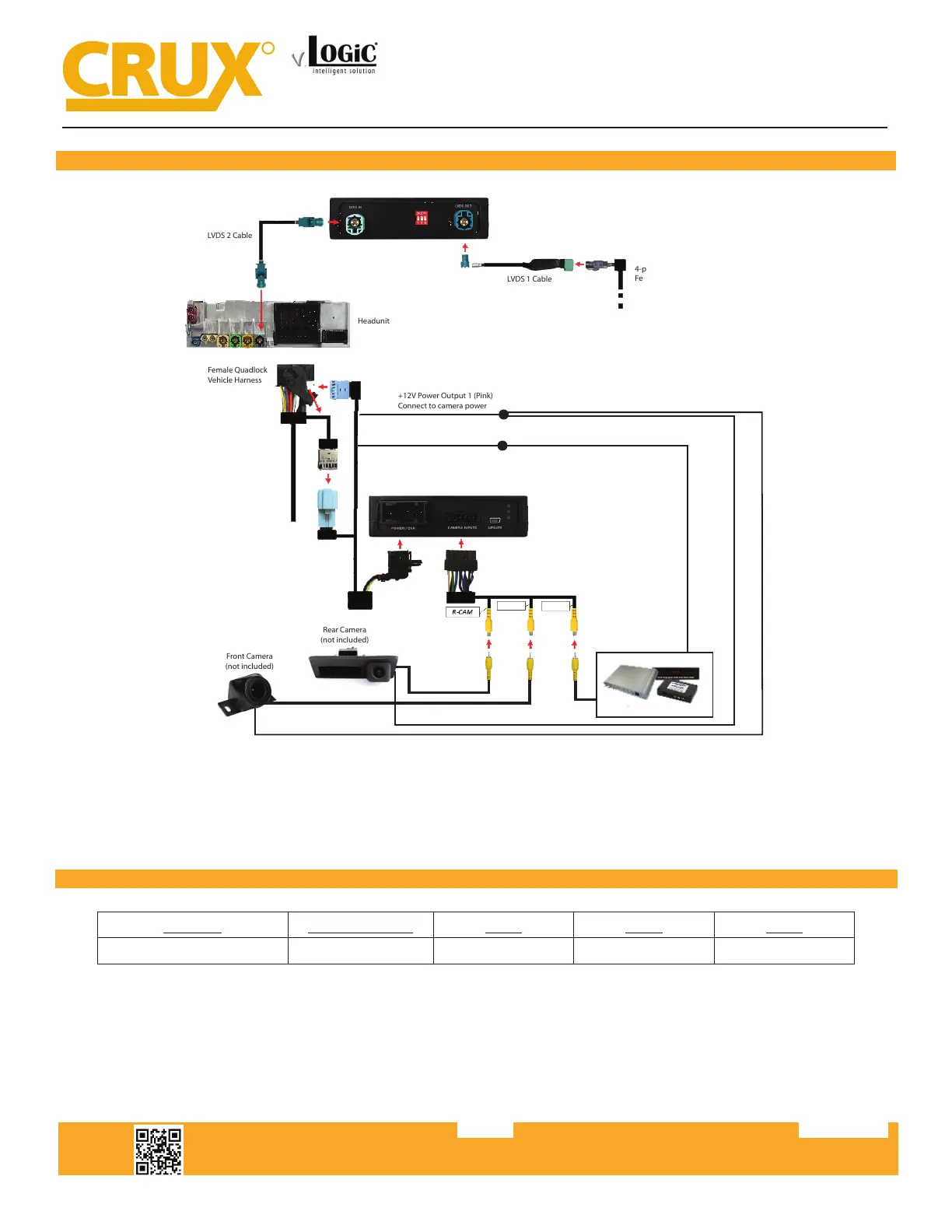

INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
Porsche Cayenne/Boxster
7” ON ON OFF
VRFPR-66C
Front and Rear View Camera Integration Interface
for Select PORSCHE Vehicles with PCM4 Systems
Rear Camera
(not included)
Front Camera
(not included)
LVDS 1 Cable
LVDS 2 Cable
4-pin HSD
Female LVDS Vehicle Harness
+12V Power Output 1 (Pink)
Connect to camera power
Female Quadlock
Vehicle Harness
Headunit
AV Sources*
Front Cam Video In
+12V Power Output 2 (Green)
Connect to AV Source Power
