CTY-01T Tacoma/Tundra Tailgate Handle Camera CTY-02T Tacoma Tailgate Handle Camera (2006-2015)

VRFTY-71E

Front & Rear + 1 Video Camera Integration Interface with A/V Input

for Select Toyota Vehicles with Entune Radios

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

1 of 4

- Adds front and rear view camera inputs, plus 1 extra video input.

- Adds an addional audio/video input.

- Uses the steering wheel control buons to toggle between the sources.

- Retains factory backup camera if present.

PRODUCT FEATURES:

PARTS INCLUDED:

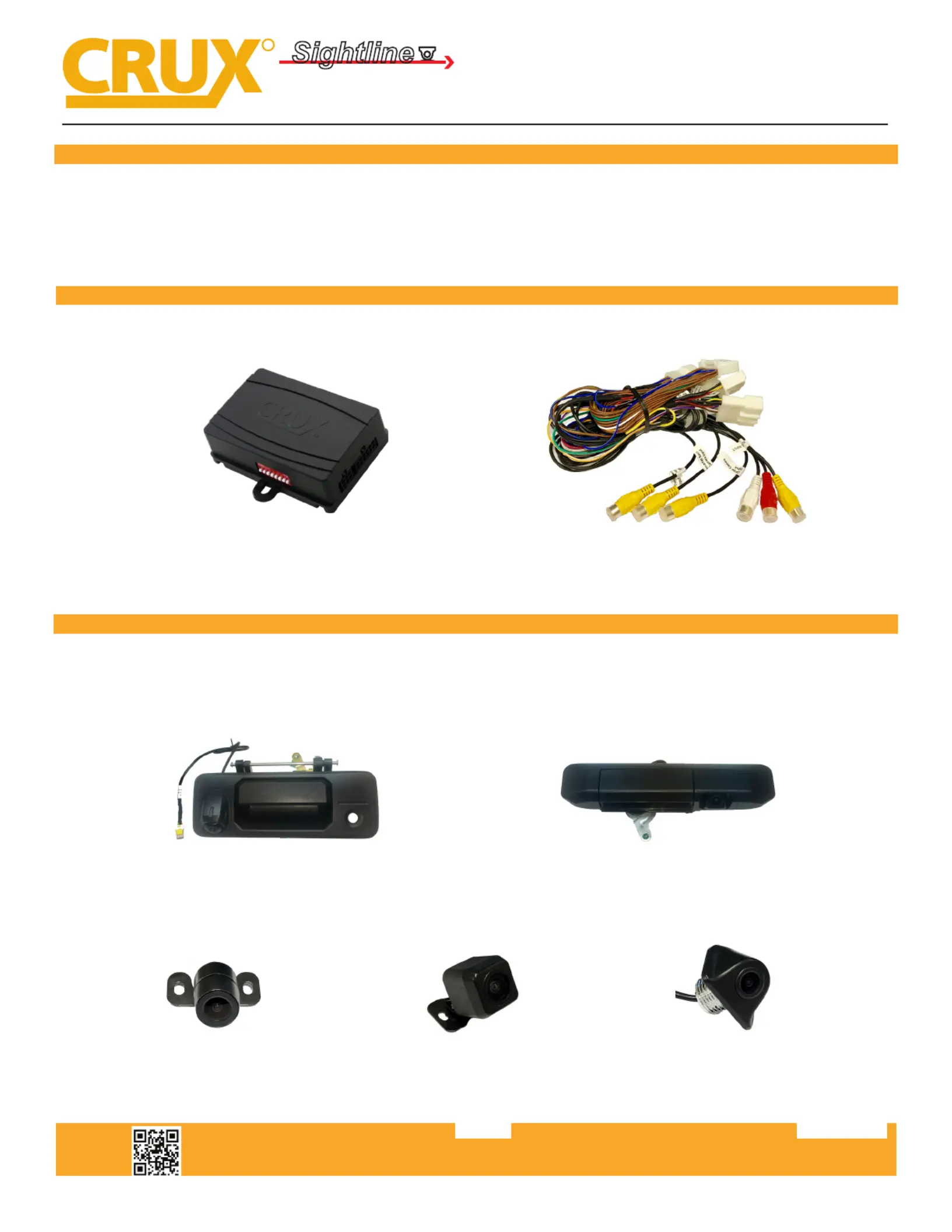

VRFTY-71E Module VRFTY-71E Harness

OPTIONAL ADD-ON CAMERAS:

Oponal aermarket add on cameras are available for the VRFTY-71E. Cameras available and sold separately

include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front Camera

(Recommended)

CFF-02 Square Body Front Camera CUL-04 Lip Mount Backup Camera

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.022019

2 of 4

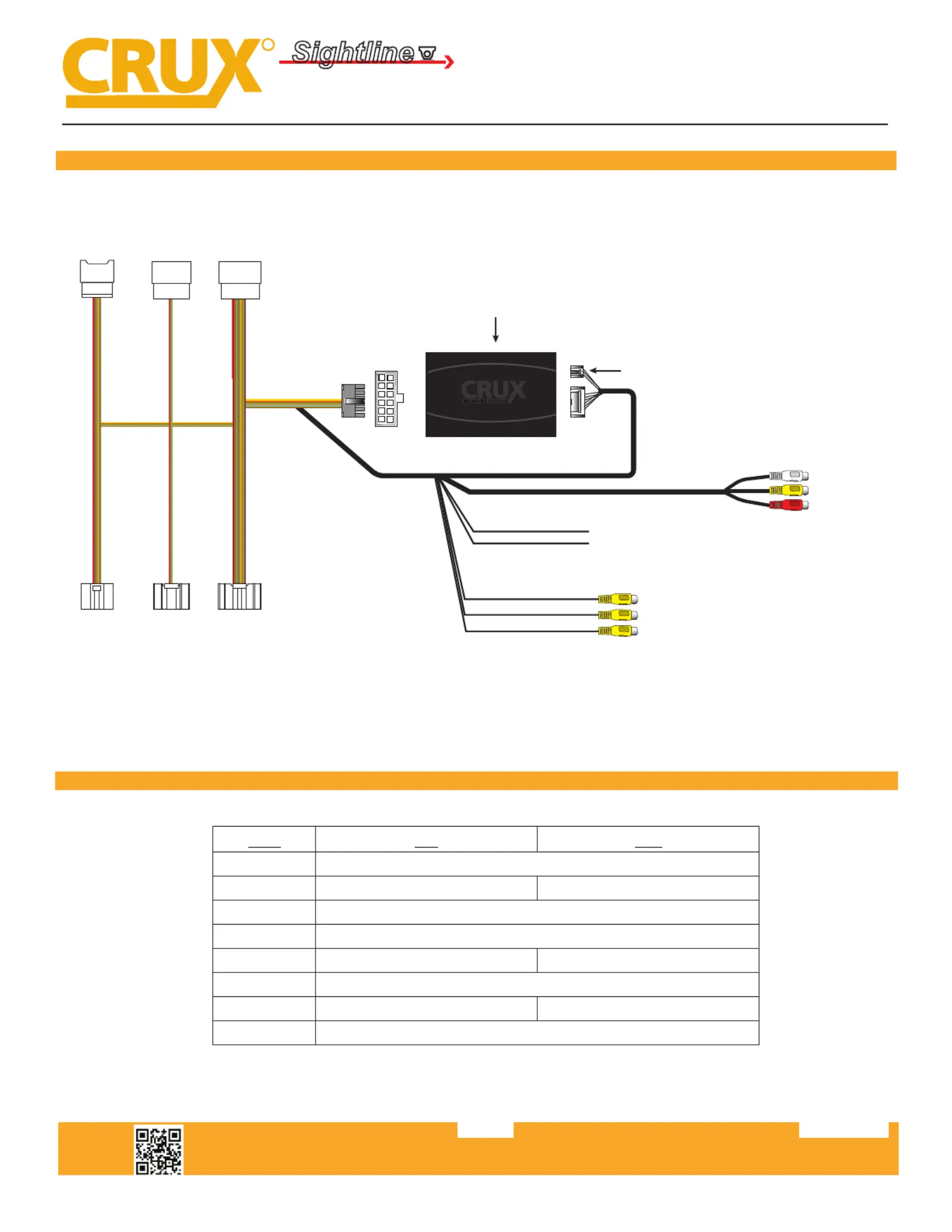

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3 Set to OFF

4 Set to OFF

5 Video Input ON Video Input OFF

6 Set to OFF

7 AUX A/V ON AUX A/V OFF

8 Set to OFF

VRFTY-71E

Front & Rear + 1 Video Camera Integration Interface with A/V Input

for Select Toyota Vehicles with Entune Radios

Front Camera Input

Video Input

Aftermarket Backup Camera Input

Audio/Video

Input

Front and Rear Camera Power Output +12V (purple/white)

Video In Power Output +12V (orange/white)

To Vehicle Harness

28 PIN10 PIN 24 PIN

To Radio

Connect this 6-pin plug if OEM

backup camera is being used

DIP Switches

Produkt Specifikationer

Mærke:	CRUX
Kategori:	Ikke kategoriseret
Model:	VRFTY-71E
