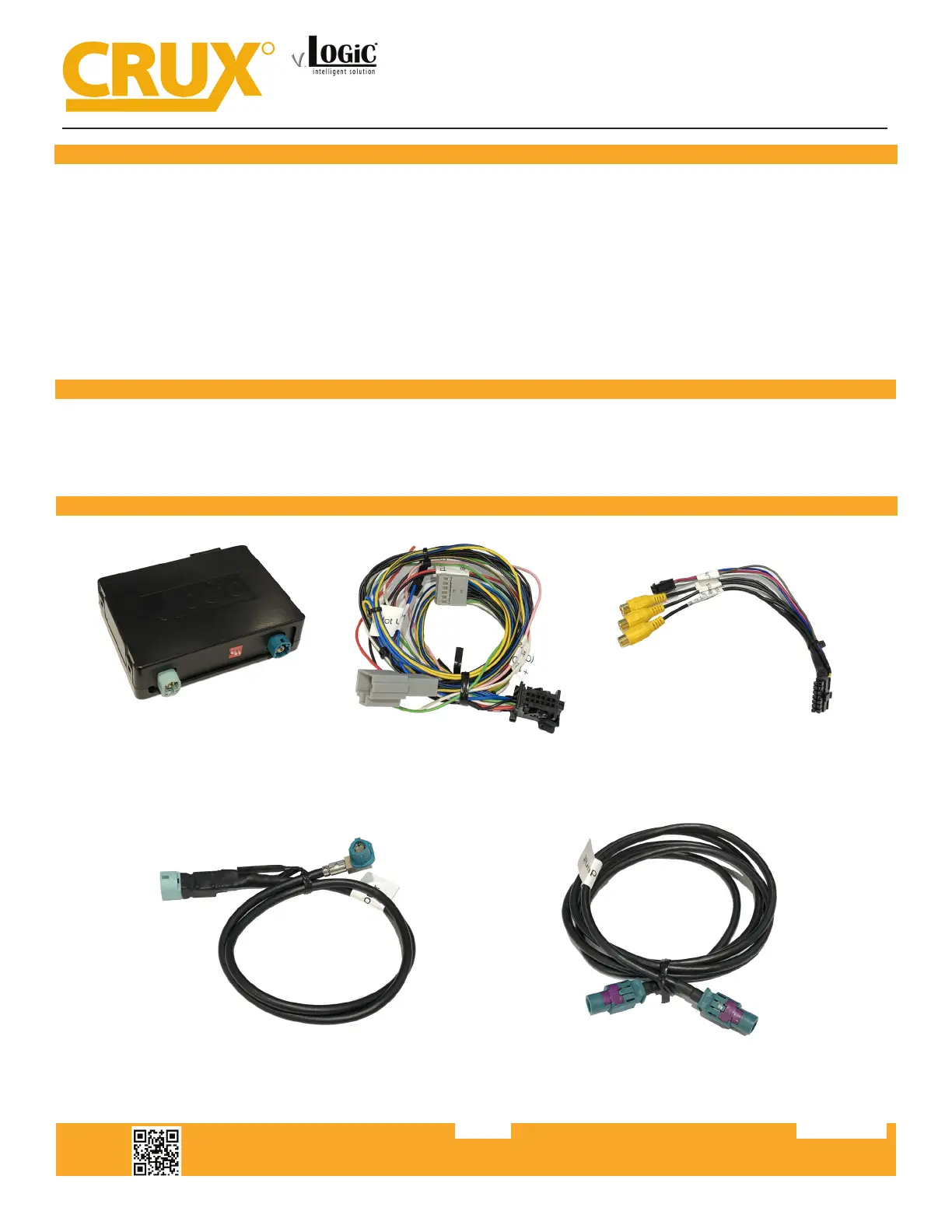

Side 1/12
VRFVW-73C
Front and Rear View Integration Interface
for VOLKSWAGEN Vehicles with MIB/MIB2 Systems
R
INTERFACING SOLUTIONS
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924191 of 12
PRODUCT FEATURES:
PARTS INCLUDED:
VRFVW-73C Module VRFVW-73C Harness Video Harness
LVDS1 Cable (to vehicle) LVDS 2 Cable (to radio)
- Adds front and back up camera inputs plus an extra video input1.
- Uses the steering wheel control buons or radio buons to toggle between the inputs.
- Picture-in-picture mode combining aer-market rear-view and front camera picture(s) with factory parking sensor
graphics.
- Interacve parking guide lines with calibraon funcon.
- Simultaneous use of picture-in-picture factory parking sensor graphics and interacve lane lines
- Built-in on-screen display and setup.
- 2 trigger outputs (+12V max. 1A), separately adjustable switching events (CAN, ACC, camera, reverse gear)
1. Factory Audio Aux Input is required if video input will be used for AV sources.
2. The VRFVW-73C connects at the mulmedia player located in the glove box.
NOTES:
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0924192 of 12
INSTALLATION DIAGRAM:
R
INTERFACING SOLUTIONS
DIP SWITCH SETTINGS:
VEHICLE MONITOR SIZE DIP 1 DIP 2 DIP 3
VW Golf 7 / Sportsvan 6.5” OFF OFFON
VW Passat (B8) 6.5” OFF ON ON
VW Passat (B8) 8” OFFON ON
VRFVW-73C
Front and Rear View Integration Interface
for VOLKSWAGEN Vehicles with MIB/MIB2 Systems
in HSD
male LVDS Vehicle Harness
AV Sources*
Front Cam Video In
+12V Power Output 2 (Green)
Connect to AV Source Power
