Side 1/5

INTERFACING SOLUTIONS

A/V

SERIES

WVI-H WiFi Module Extension AV Cable Power Harness

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0312211 of 5

- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.

- Provides an audio/video input which can also be used to add a camera.

- Includes a USB input to play audio and video les.

- Provides a virtual remote control via a smartphone wi connection.

- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.

- Includes HMDI output for high quality video.

- Works with Facetime, Maps, Skype, YouTube, and other apps.

PRODUCT FEATURES:

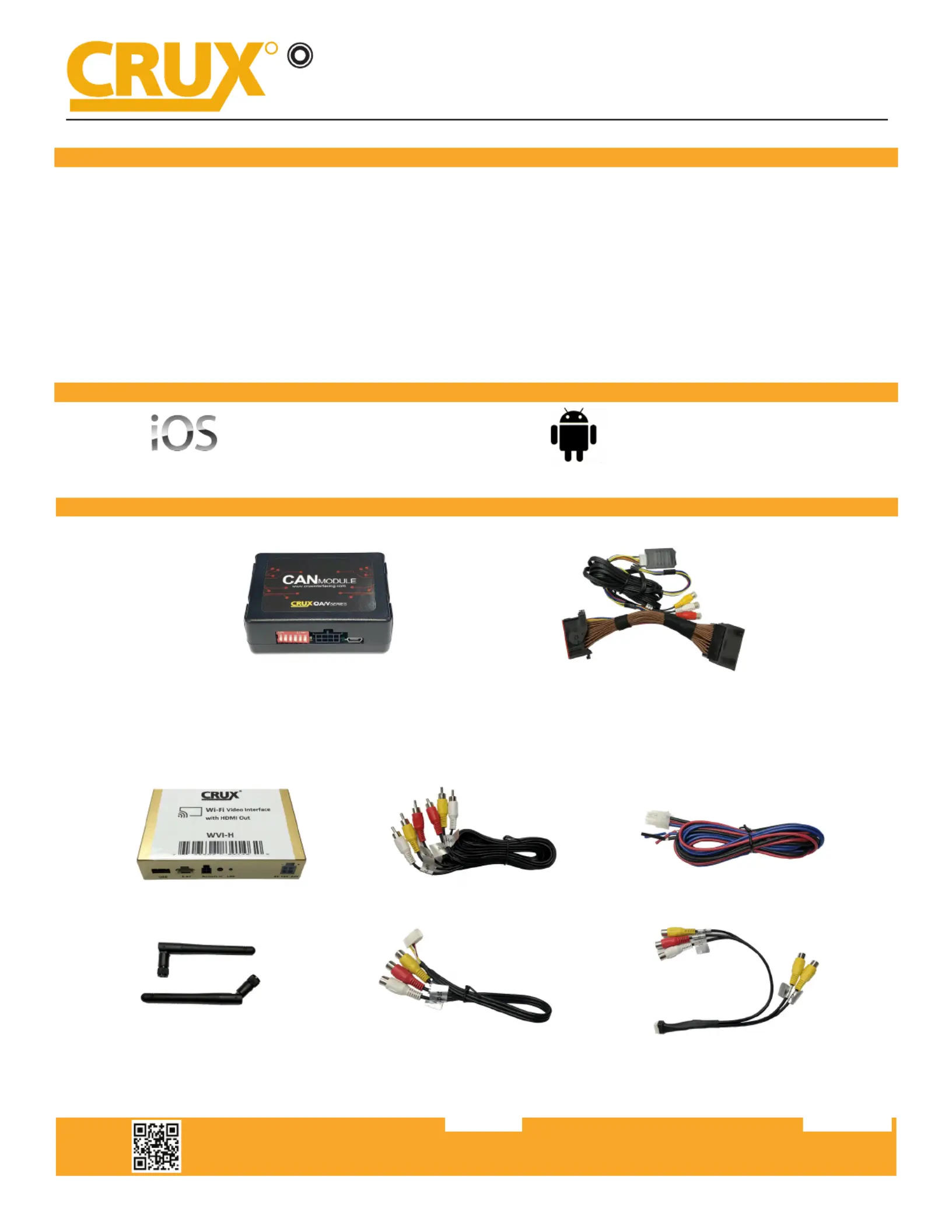

PARTS INCLUDED:

WVICH-03B CAN Module WVICH-03B A/V Harness

WVICH-03B

Wi Connectivity Integration and Audio Video Interface

for Select Dodge, Jeep & RAM Vehicles 2013-2015

WORKS WITH:

iOS 7 and newer

OS 4.2 and newer

INTERFACING SOLUTIONS

A/V

SERIES

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0312212 of 5

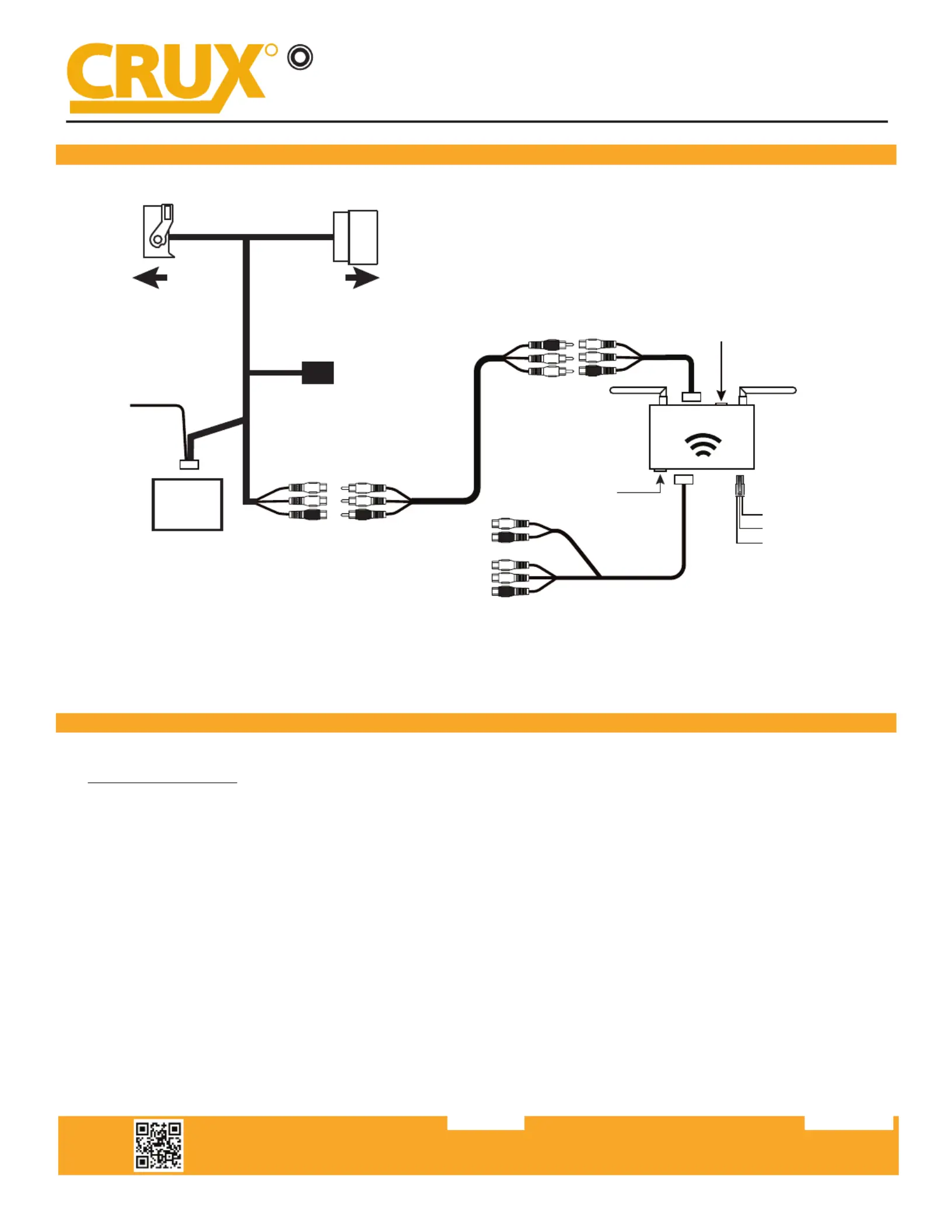

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTIONS:

THE AV INTERFACE:

1. Remove the factory radio from the dashboard.

2. Unplug the factory connectors from behind the factory radio.

3. Mate the WVICH-03B T-Harness connecons to the factory connectors. (Make sure all connectors are

properly seated into the interface and into the radio.)

4. On the CAN Module, set DIP switch number 4 to ON to enable AV Input.

5. Switch to the new AV input by pressing the BACK buon on the radio. If the radio does not have a BACK

buon use the GREEN wire opon to toggle the AV source by connecng it to +12V. We recommend using a

toggle switch to use this feature. (See page 3)

TO FACTORY

RADIO

TO FACTORY

HARNESS

CAN

MODULE

A/V Module

GREEN Wire

(non permanent VIM)

See below step 5

Wi-Fi

INTERFACE

HDMI OUTPUT

A/V INPUT

BLUE = A/V TRIGGER*

RED = +12V ACC

BLACK = GROUND

*Connect BLUE A/V Trigger

to +12V to toggle A/V INPUT

A/V Extension

Cable

Video Out

(to extension monitors)

Video Input (or Camera)

Right Audio Input

Left Audio Input

USB Input

WVICH-03B

Wi Connectivity Integration and Audio Video Interface

for Select Dodge, Jeep & RAM Vehicles 2013-2015
