WVICH-03M MODULE WVICH-03M HARNESS
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312211 of 5
- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.
- Provides an audio/video input which can also be used to add a camera.
- Includes a USB input to play audio and video les.
- Provides a virtual remote control via a smartphone wi connection.
- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.
- Includes HMDI output for high quality video.
- Works with Facetime, Maps, Skype, YouTube, and other apps.
PRODUCT FEATURES:

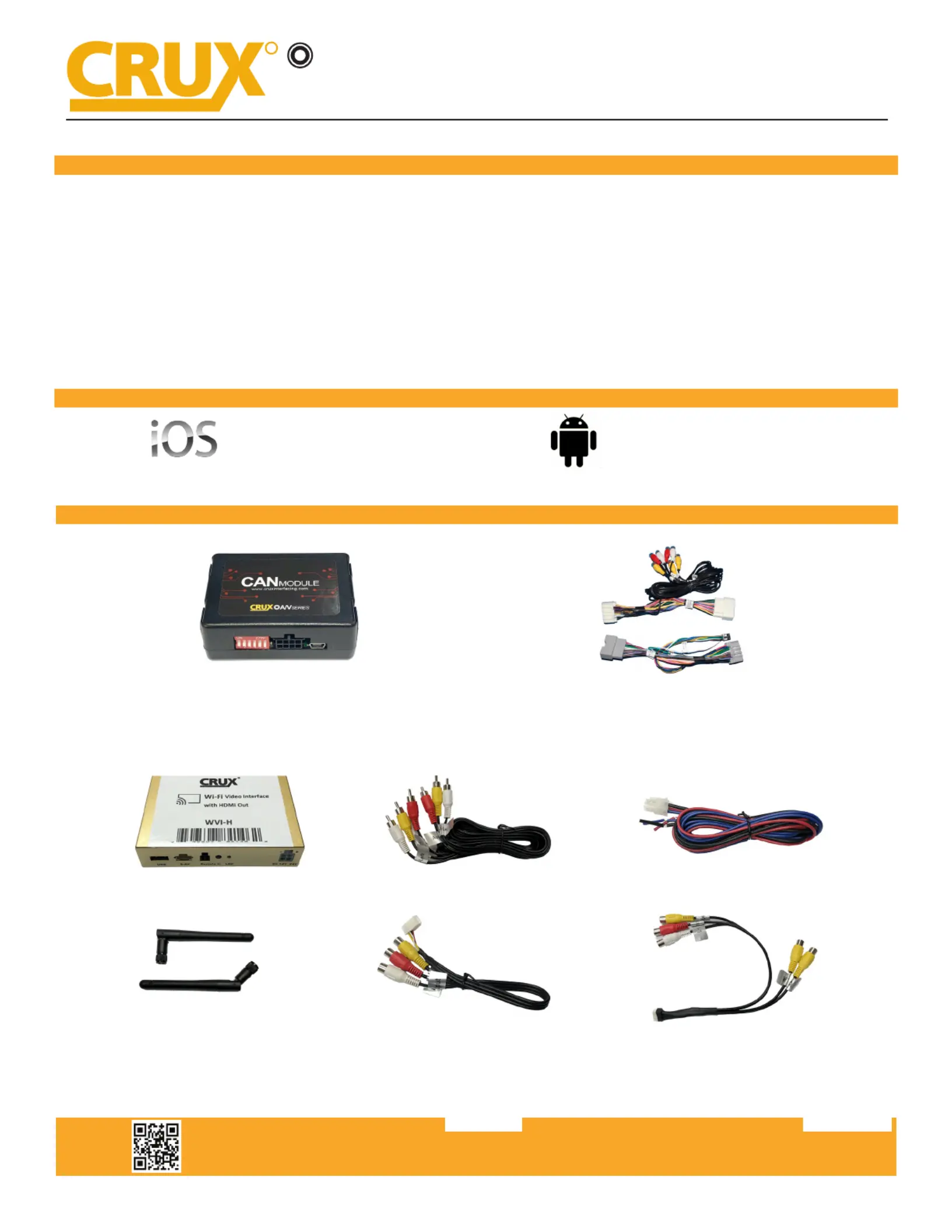

PARTS INCLUDED:
WVICH-03M
Wi Connectivity Integration and Audio Video Interface
for Select Chrysler, Dodge & Jeep Vehicles with MyGig Radio
R
INTERFACING SOLUTIONS
A/V
SERIES
WVI-H WiFi Module Extension AV Cable Power Harness
Dual Antennas WiFi AV Out Harness AV In / Video Out Harness
WORKS WITH:
iOS 7 and newer
OS 4.2 and newer
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312212 of 5

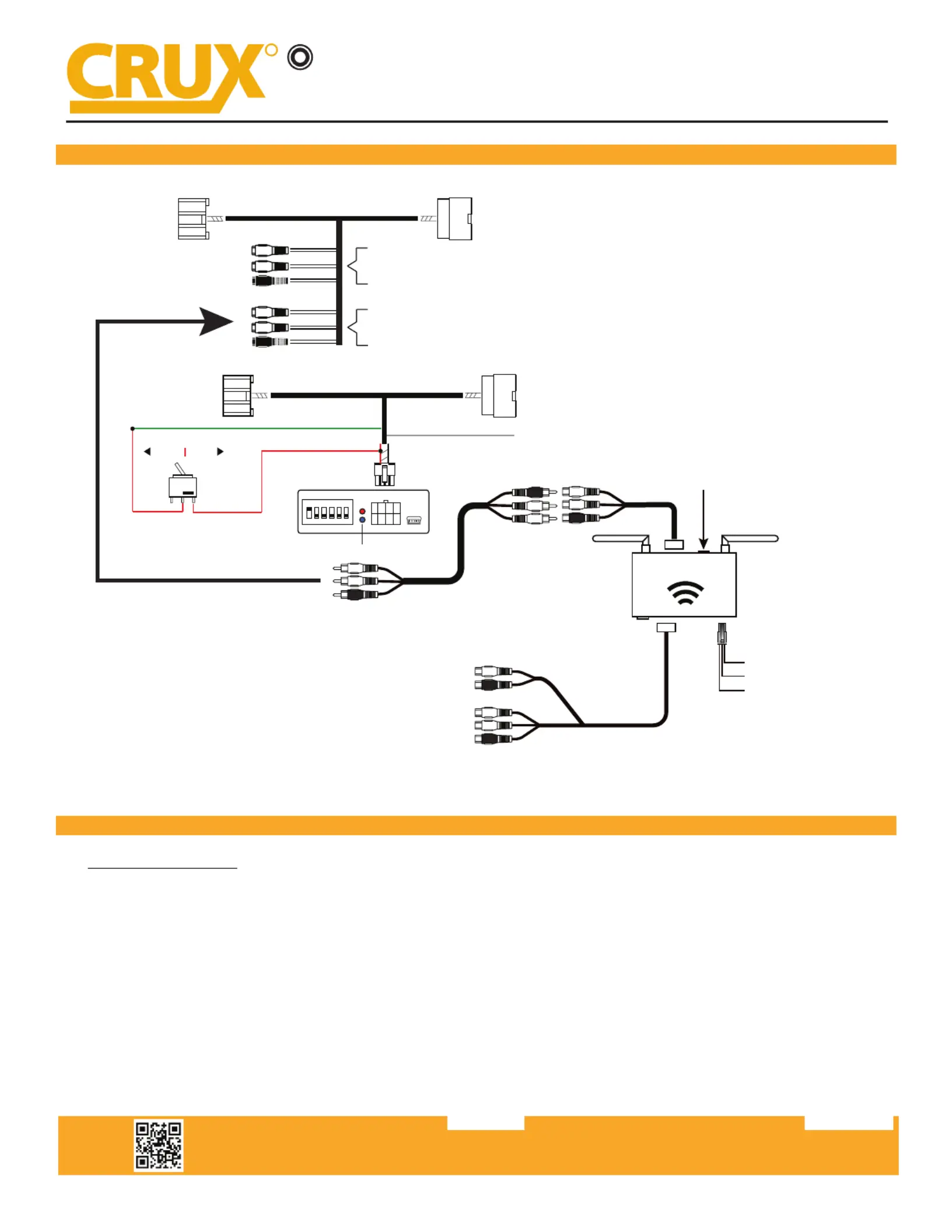

INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTIONS:
THE AV INTERFACE:
1. Remove the factory radio from the dashboard.
2. Unplug the factory connectors from behind the factory radio.
3. Mate the WVICH-03M T-Harness connecons to the factory connectors. (Make sure all connectors are
properly seated into the interface and into the radio.)
4. On the CAN Module, set DIP switch number 1 to ON to enable AV Input.
5. Switch to the new AV input by pressing the MEDIA buon on the radio then select VES. If the radio does
not have a MEDIA buon use the GREEN wire opon to toggle the AV source by connecng it to +12V. We
recommend using a toggle switch to use this feature.
WVICH-03M
Wi Connectivity Integration and Audio Video Interface
for Select Chrysler, Dodge & Jeep Vehicles with MyGig Radio
R
INTERFACING SOLUTIONS
A/V
SERIES
22-PIN
(female plug)
4 5 6
ON
1 2 3
S TATUS LED’S
22-PIN
(male plug)
8-PIN
(male plug)
22-PIN
(female plug)
22-PIN
(male plug)
GRAY
WHITE
GREEN / VIDEO UNLOCK
OPTIONAL /
TOGGLE SWITCH
ENABLEDISABLE
AUDIO/VIDEO
INPUTS
AUDIO/VIDEO
OUTPUTS
WHITE WIRE +12V
Wi-Fi
INTERFACE
HDMI OUTPUT
A/V INPUT
BLUE = A/V TRIGGER*
RED = +12V ACC
BLACK = GROUND
*Connect BLUE A/V Trigger
to +12V to toggle A/V INPUT
A/V Extension
Cable
Video Out
(to extension monitors)
Video Input (or Camera)
Right Audio Input
Left Audio Input
USB Input
