Side 1/5

INTERFACING SOLUTIONS

A/V

SERIES

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1027201 of 5

- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM screen.

- Provides an audio/video input which can also be used to add a camera.

- Includes a USB input to play audio and video les.

- Provides a virtual remote control via a smartphone wi connection.

- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.

- Includes HMDI output for high quality video.

- Includes an IR remote control.

- Works with Facetime, Maps, Skype, YouTube, and other apps.

PRODUCT FEATURES:

PARTS INCLUDED:

WVIFD-02 C-500 Module WVIFD-02 Harness WVIFD-02 C-125 Module

WVIFD-02

Wi Connectivity Integration and Audio Video Interface

for Select Ford and Lincoln Vehicles with Factory AV Inputs

WVI-H WiFi Module Power Harness

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

Extension AV Cable IR Extension IR Remote Control

WORKS WITH:

iOS 7 and newer

OS 4.2 and newer

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1027202 of 5

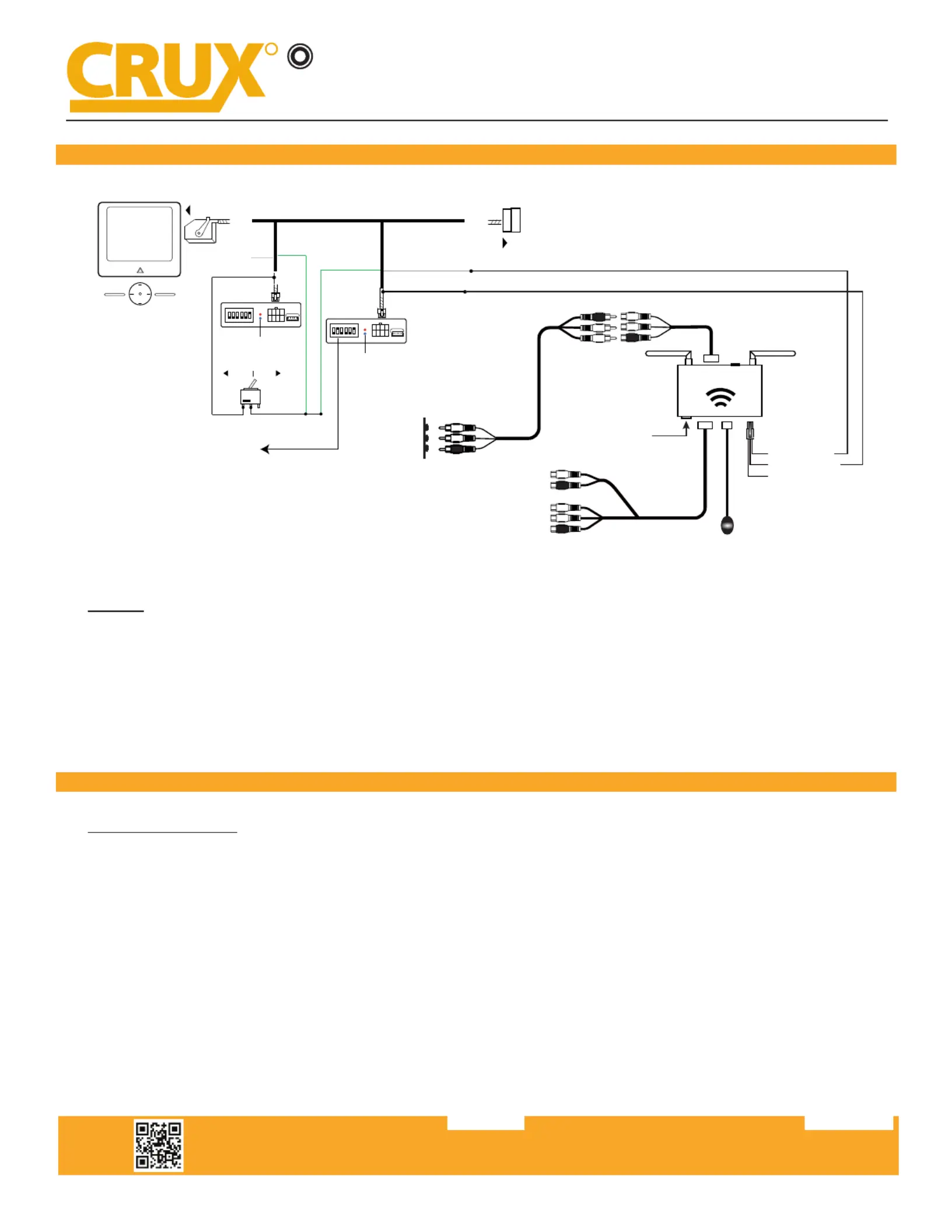

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTIONS:

THE AV INTERFACE:

1. Remove the factory radio from the dashboard.

2. Unplug the factory 54 pin connector from behind the factory display.

3. Mate the WVIFD-02 T-Harness connecons to the factory connectors. (Make sure all connectors are properly

seated into the interface and into the radio.

4. Plug the C-500 and C-125 modules to the 8-pin Molex connectors on the WVIFD-02 harness.

5. Set the DIP switches on both modules. See next page. Note that the modules are interchangeable.

54-PIN

(female plug)

- - - - - - - - - - - - - - - - --

54-PIN

(male plug)

4 5 6

1 2 3

4 5 6

1 2 3

STATUS LED’S

ENABLEDISABLE

IMPORTANT NOTE:

Before connecting the interface to the

harness, if the vehicle is equipped with a

factory RVC, make sure to turn DIP 2 to ON

Failure to do so will result in loss of the factory rear view camera

See page 3 for DIP

Switch settings

SONY

8” Radio

To factory

display

WHITE 12V Output

BLACK wire (ground)

GREEN / VIM

Toggle Switch*

Wi-Fi

INTERFACE

HDMI OUTPUT

A/V INPUT

RED = +12V ACC

BLACK = GROUND

BLUE = A/V TRIGGER*

*Connect BLUE A/V Trigger

to +12V to toggle A/V INPUT

A/V Extension

Cable

Video Out

(to extension monitors)

Video Input (or Camera)

Right Audio Input

Left Audio Input

USB Input

IR Extension

8 Pin

(male plug)

C-125

Module

LEDs

8 Pin

(male plug)

C-500

Module

RED wire - tap here

To factory

harness

Factoruy

AV Input

WVIFD-02

Wi Connectivity Integration and Audio Video Interface

for Select Ford and Lincoln Vehicles with Factory AV Inputs

INTERFACING SOLUTIONS

A/V

SERIES

NOTE: The radio will go through a reboot process that can take up to 1 minute. It will inialize and reload all

previous sengs. Once complete it will resume the original radio display.

NOTE:

The C-500 and C-125 modules are interchangeable.
