- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for shared

linking of functions from most Smartphones to the OEM Screen.

- Includes a USB input to play Audio and Video les.

- Provides a virtual remote control via a smartphone wi connection.

- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.

- Includes HMDI output for high quality video.

- Works with Facetime, Navigation apps, Skype, E-mail, text, and other apps.

- Streams Youtube

videos.

PRODUCT FEATURES:

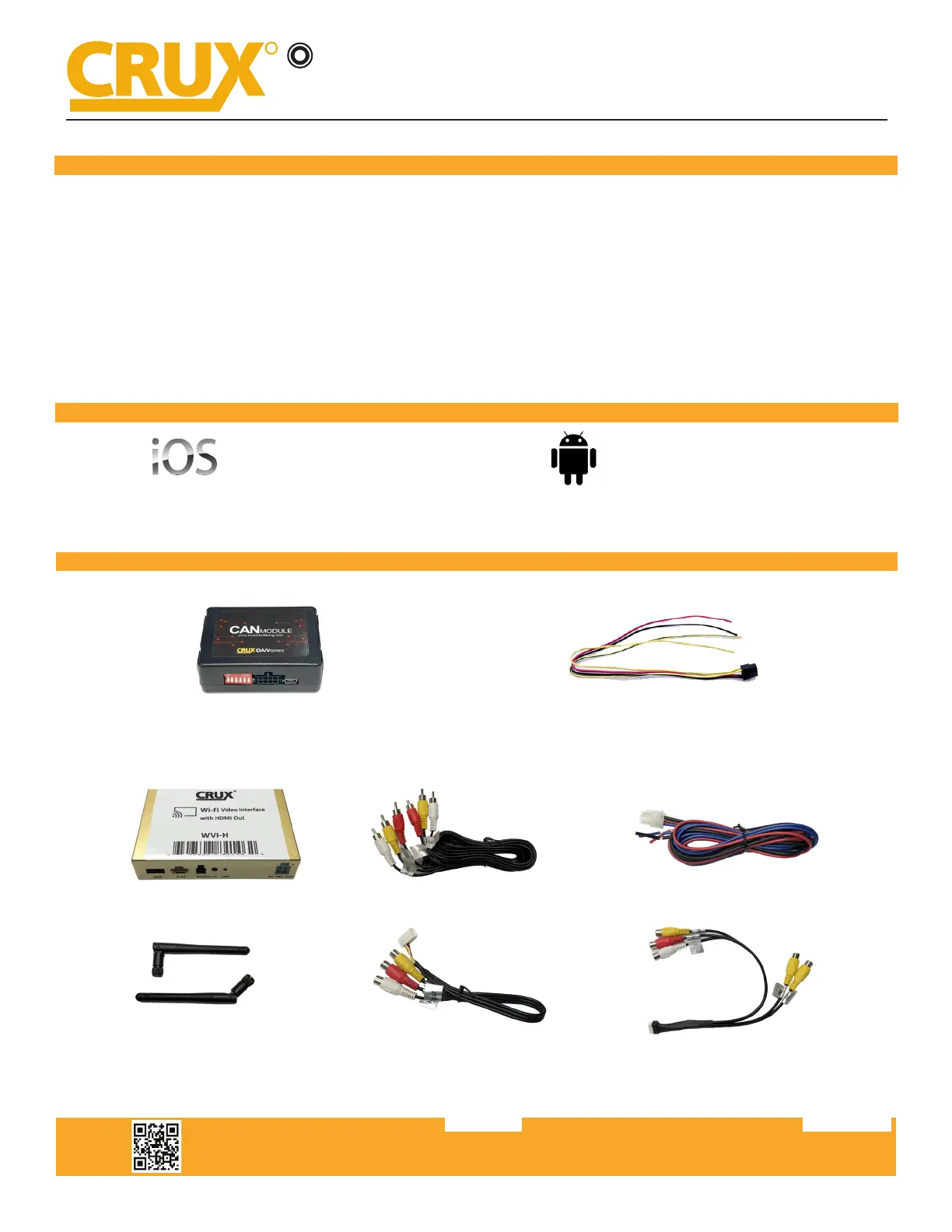

PARTS INCLUDED:

WVIGM-04M CAN Module WVIGM-04M A/V Harness

WVIGM-04M

Wi Connectivity Integration for

Select Cadillac, Chevrolet & GM Vehicles 2013-Up

INTERFACING SOLUTIONS

A/V

SERIES

WVI-H WiFi Module Extension AV Cable Power Harness

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

WORKS WITH:

iOS 7 and newer

OS 4.2 and newer

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.0312212 of 8

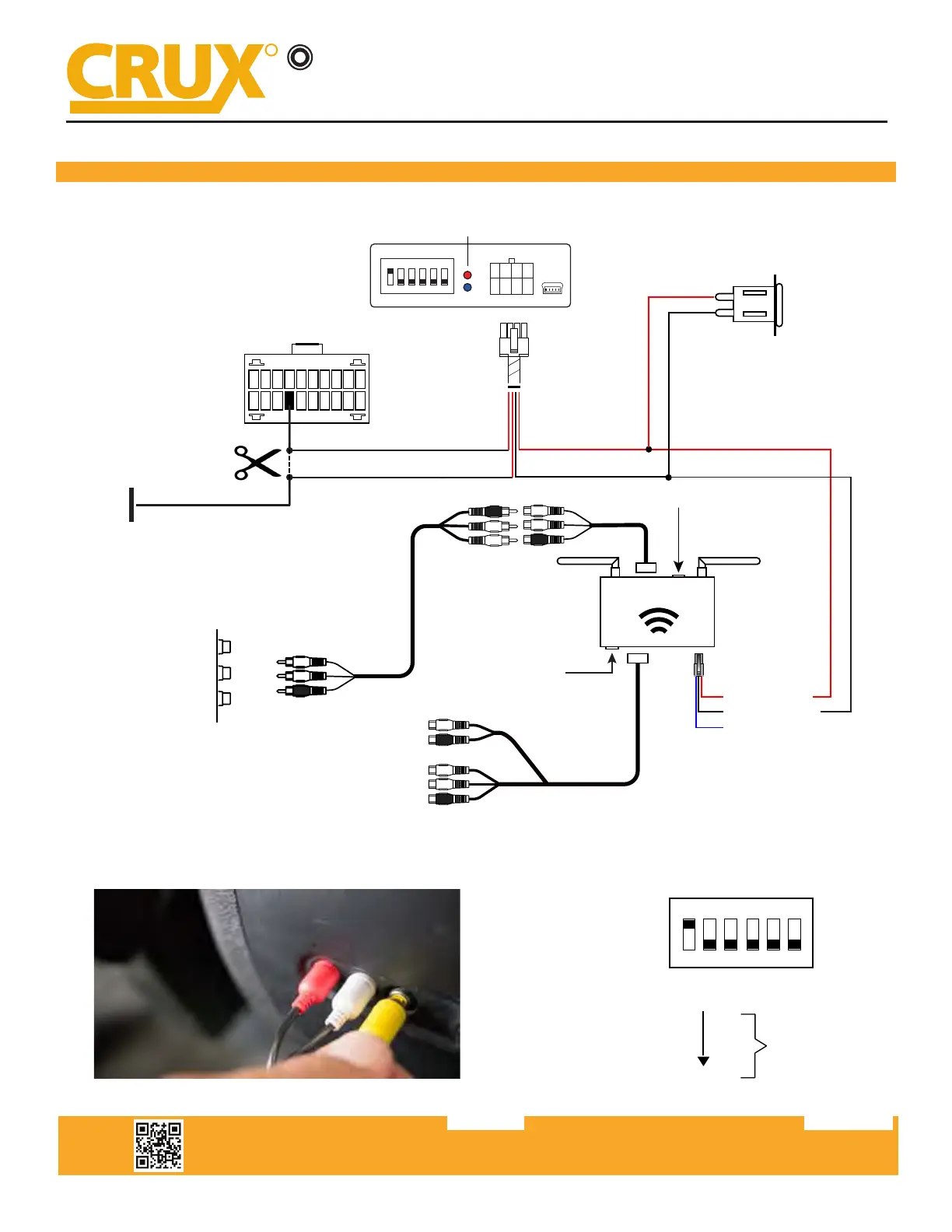

INSTALLATION DIAGRAM:

8-PIN

(male plug)

4 5 6

1 2 3

S TATUS LED’S

CAR SIDE

CUT WIRE

YELLOW/BLACK / CAR SIDE

YELLOW

/ RADIO SIDE

4 5 6

1 2 3

DIP 1 = ON

DIP 6

OFF

ACTIVATE

VIDEO

IN-MOTION

FACTORY

A/V INPUT

CUT THE WIRE ON PIN 14

TO INTERCEPT THE DATA

WIRE VIEW

MUST use the factory A/V Input

HDMI OUTPUT

Wi-Fi

INTERFACE

A/V INPUT

RED = +12V ACC

BLACK = GROUND

BLUE = A/V TRIGGER*

*Connect BLUE A/V Trigger

to +12V to toggle A/V INPUT

A/V Extension

Cable

Video Out

(to extension monitors)

Video Input (or Camera)

Right Audio Input

Left Audio Input

USB Input

DIP Switches Overview

Factory cigarette

lighter socket

WVIGM-04M

Wi Connectivity Integration for

Select Cadillac, Chevrolet & GM Vehicles 2013-Up

INTERFACING SOLUTIONS

A/V

SERIES

Produkt Specifikationer

Mærke:	CRUX
Kategori:	Ikke kategoriseret
Model:	WVIGM-04M
