Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312211 of 5
- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for shared
linking of functions from most Smartphones to the OEM Screen.
- Provides an audio/video input that can also be used for a camera.
- Includes a USB input to play Audio and Video les.
- Provides a virtual remote control via a smartphone wi connection.
- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.
- Includes HMDI output for high quality video.
- Works with Facetime, Navigation apps, Skype, E-mail, text, and other apps.
- Streams Youtube® videos.
PRODUCT FEATURES:

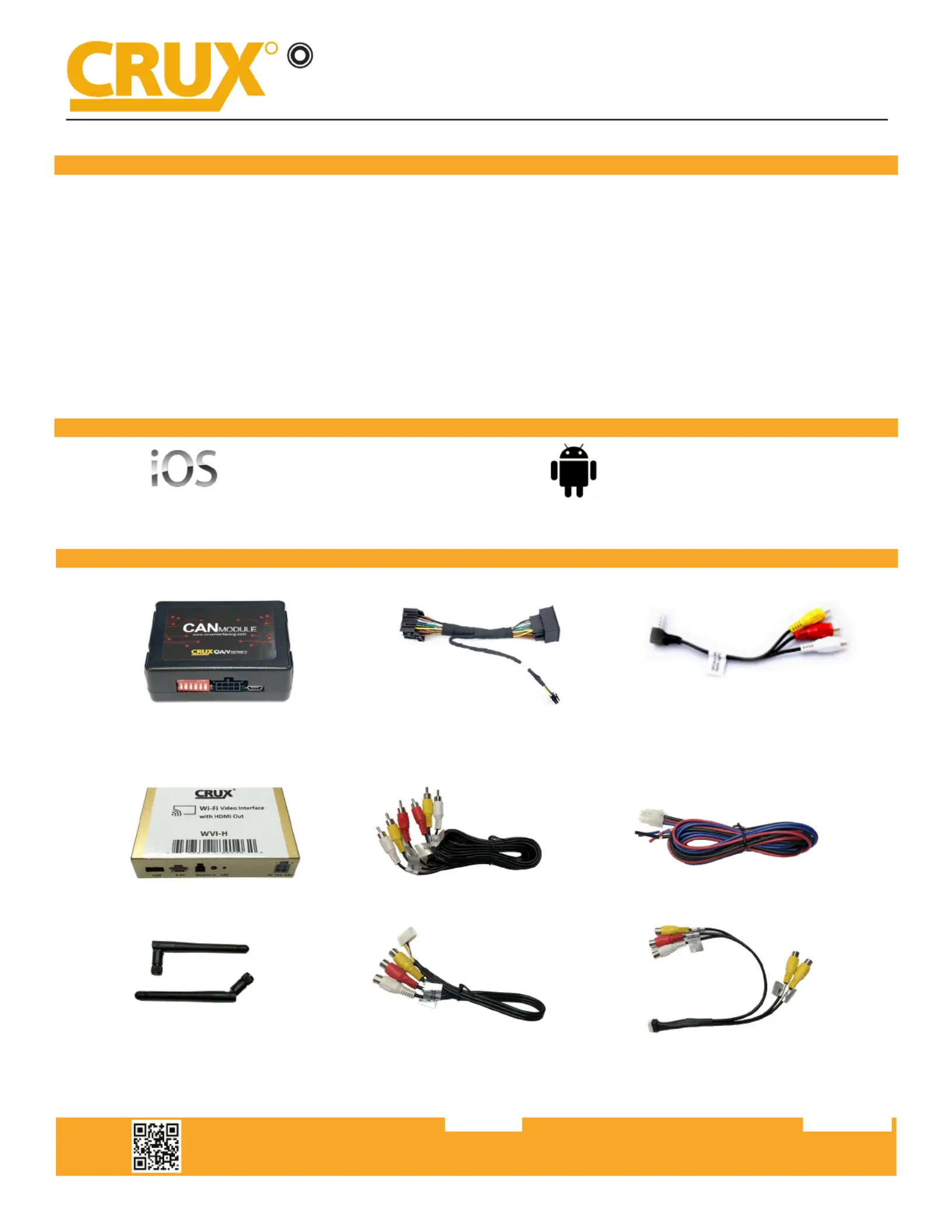

PARTS INCLUDED:
WVIGM-04S Module WVIGM-04S Harness AV Adapter
WVIGM-04S
Wi Connectivity Integration and Audio Video Interface
for Select Chevrolet SONIC and SPARK 2014-2015
R
INTERFACING SOLUTIONS
A/V
SERIES
WORKS WITH:
iOS 7 and newer OS 4.2 and newer
WVI-H WiFi Module Extension AV Cable Power Harness
Dual Antennas WiFi AV Out Harness AV In / Video Out Harness
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.0312212 of 5
INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTIONS:
THE AV INTERFACE:
1. Remove the factory radio from the dashboard.
2. Remove the factory connectors from behind the factory radio.
3. Mate the T-Harness connecons to the factory connectors. (Make sure all connectors are properly seated
into the interface and into the radio.)
4. On the WVIGM-04S module, set DIP switch 1 to the ON posion.
TO FACTORY
HARNESS
8-PIN
(male plug)
4 5 6
ON
1 2 3
40-PIN
(male plug)
40-PIN
(female plug)
TO FACTORY
RADIO
TO
FACTORY A/V INPUT
A/V OUTPUT
Wi-Fi
INTERFACE
HDMI OUTPUT
A/V INPUT
RED = +12V ACC
BLACK = GROUND
BLUE = A/V TRIGGER*
*Connect BLUE A/V Trigger
to +12V to toggle A/V INPUT
A/V Extension
Cable
Video Out
(to extension monitors)
Video Input (or Camera)
Right Audio Input
Left Audio Input
USB Input
WVIGM-04S
Wi Connectivity Integration and Audio Video Interface
for Select Chevrolet SONIC and SPARK 2014-2015
R
INTERFACING SOLUTIONS
A/V
SERIES
THE WIFI INTERFACE:
1. Connect the power/video cable to the Wi-Fi Interface module.
2. Connect the antennas to the module.
3. Connect the RED power lead to +12V ACC and the BLACK wire to Ground.
