WVINS-07 SWC Module WVINS-07 Harness

WVINS-07

WiFi Connectivity and Audio/Video Input Interface for

Select Nissan Vehicles 2014-2015

- Enables wireless (Wi-Fi) Audio/Video mirroring from mobile devices to the OEM display screen for shared

linking of functions from most Smartphones to the OEM Screen.

- Provides an Audio/Video input that can also be used for a camera.

- Includes a USB input to play Audio and Video les.

- Provides a virtual remote control via a smartphone wi connection.

- Dual band (5GHz and 2.4GHz) Wi capability for clear connection.

- Includes HMDI output for high quality video.

- Works with Facetime, Navigation apps, Skype, E-mail, text, and other apps.

- Streams Youtube

videos.

PRODUCT FEATURES:

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1105201 of 5

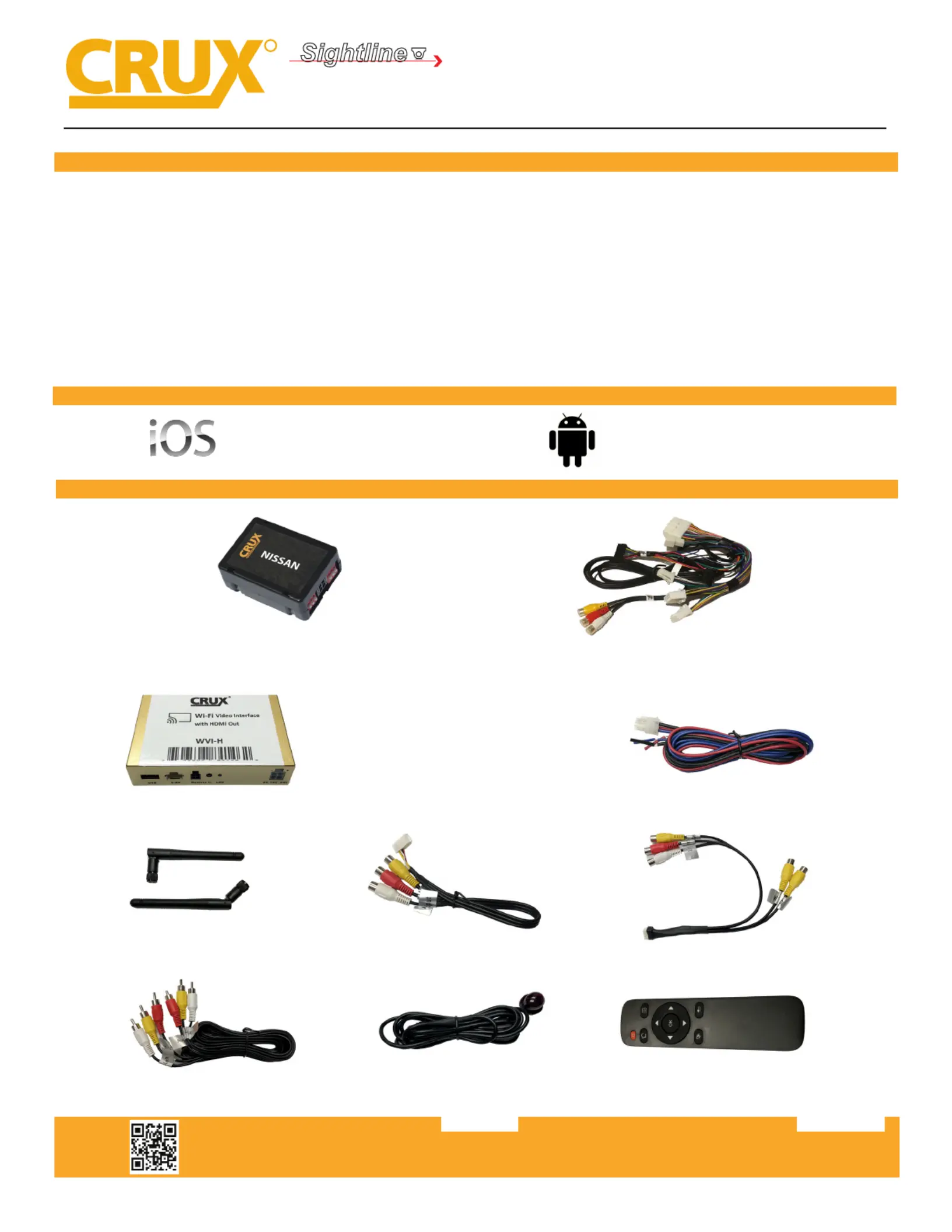

PARTS INCLUDED:

WORKS WITH:

iOS 7 and newer

OS 4.2 and newer

WVI-H WiFi Module Power Harness

Dual Antennas WiFi AV Out Harness AV In / Video Out Harness

Extension AV Cable IR Extension IR Remote Control

WVINS-07

WiFi Connectivity and Audio/Video Input Interface for

Select Nissan Vehicles 2014-2015

INTERFACING SOLUTIONS

Sightline

CAMERAS

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.1105202 of 5

32-PIN

20-PIN

8-PIN

SWC

MODULE

12-Pin Black

Connector

16-Pin Black

Connector

FM AM

MEDIA

DISP

SCAN

APP

BACK

DIP Switches should

all be set to OFF

1 2 3

NISSAN SWC

Wi-Fi

INTERFACE

HDMI OUTPUT

A/V INPUT

BLUE = A/V TRIGGER*

RED = +12V ACC

BLACK = GROUND

*Connect BLUE A/V Trigger

to +12V to toggle A/V INPUT

A/V Extension

Cable

Video Out

(to extension monitors)

Video Input (or Camera)

Right Audio Input

Left Audio Input

USB Input

IR Extension

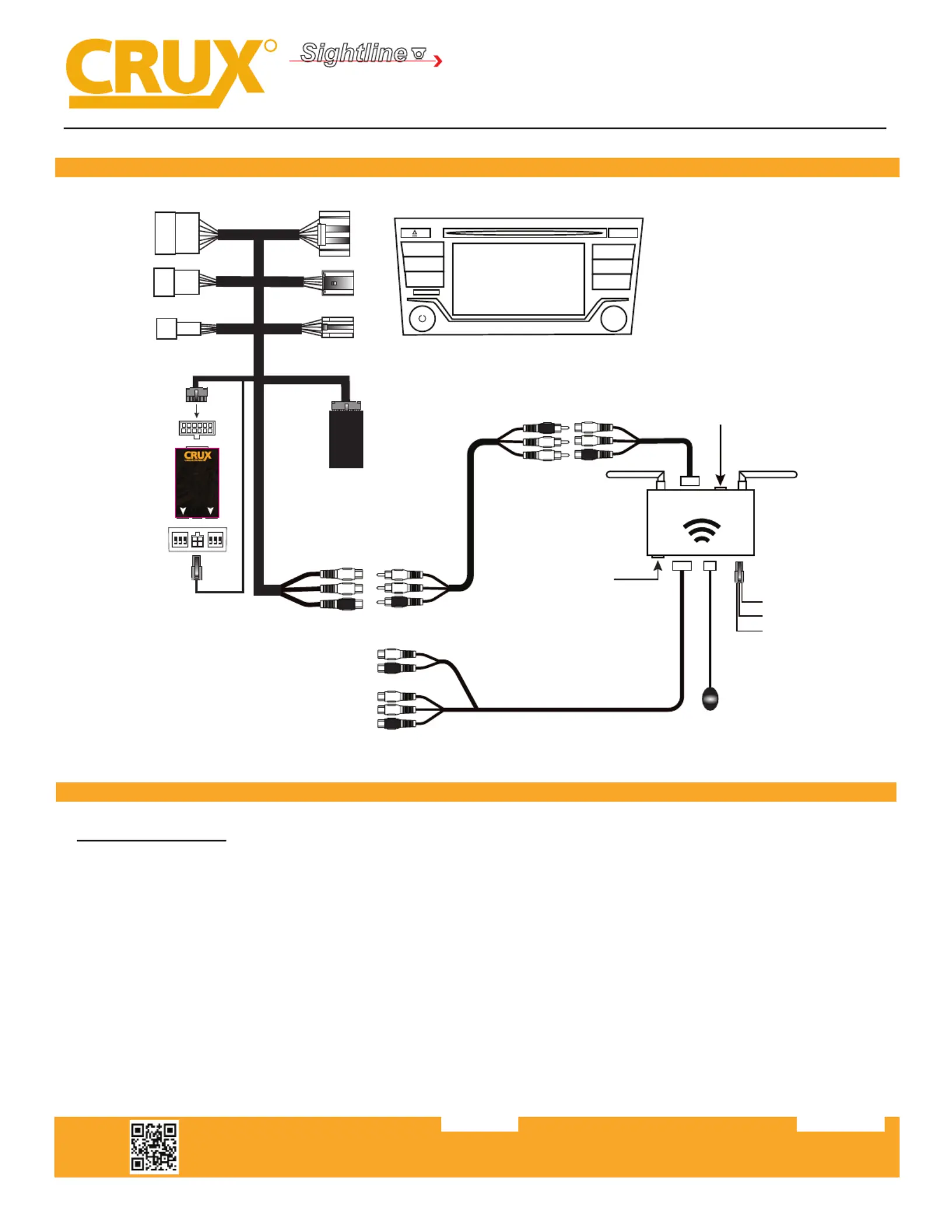

INSTALLATION DIAGRAM:

INSTALLATION INSTRUCTIONS:

THE AV INTERFACE:

1. Remove the factory radio from the dashboard and unplug the factory connectors from behind the radio.

2. Mate the T-Harness connecons to the factory connectors. (Make sure all connectors are properly

seated into the interface and into the radio.)

3. Connect the audio and video source to the female RCAs on the WVINS-07 T-Harness.

4. Test the system before pung back the radio.
