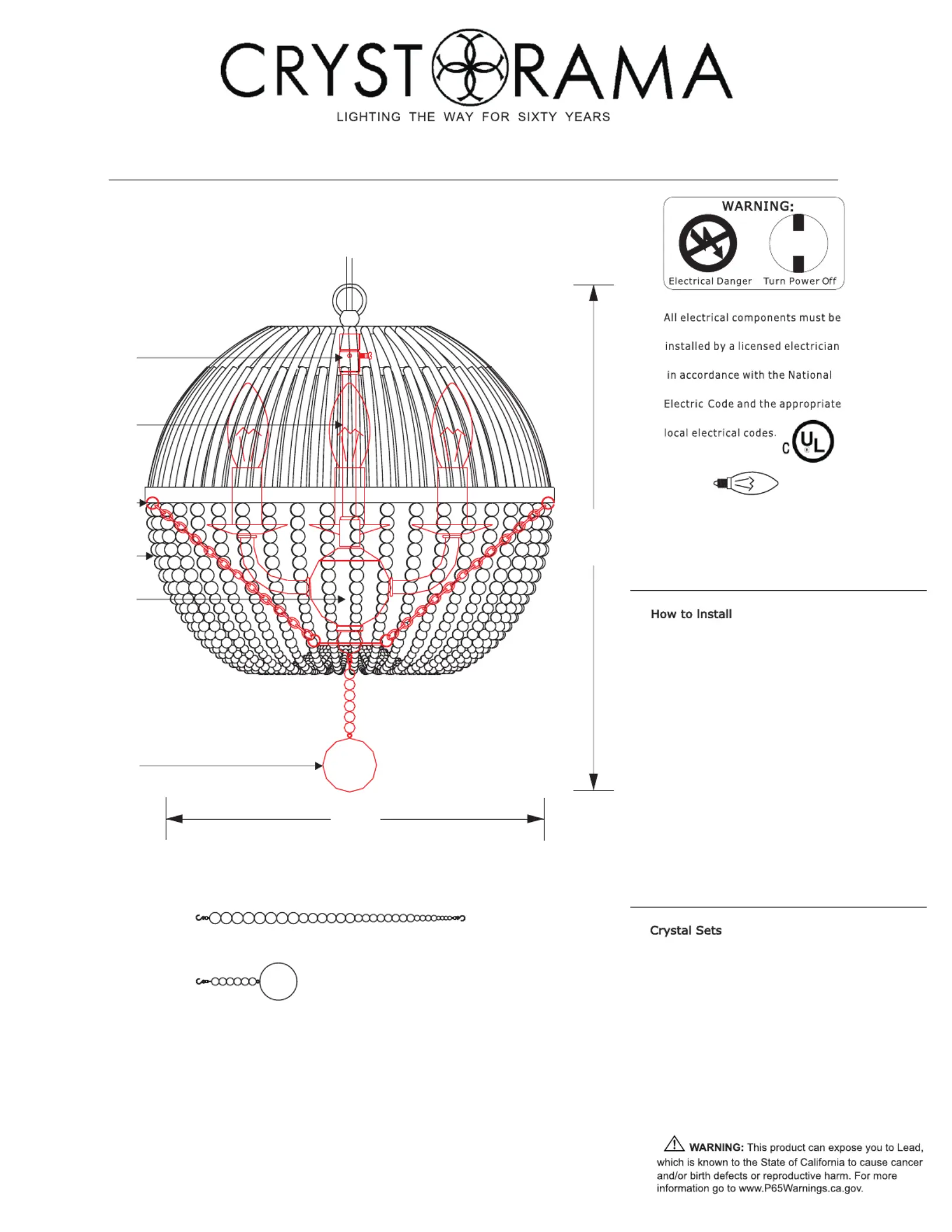

ASSEMBLY INSTRUCTION MODEL #DUV-623-GA
1.Do a complete inventory of all
parts and components before you
2.Attach the Center Stem assembly
onto the Light Cluster.
3.Insert candle sleeves and bulbs
(not included) into the sockets.
4.Attach the top of the Center Stem
onto the Swivel.
5.Open the rings of the small chain
and attach them to the bottom of
the metal cage.
6.Dress the fixture with beads “A”
and “B” as illustrated.
Swivel
Rings
B
A. 40 Sets.
(8)12mm + (6)10mm + (4)8mm
+(4)6mm + (4)4mm
B. 1 Set.
(6)8mm + (1)40mm
You will need 3 -Candelabra Base Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
A
B
D
E
F
G
I
K
L
M
N
P
O
R
MODEL #DUV-623-GAPART NUMBER
C
H
J
Q

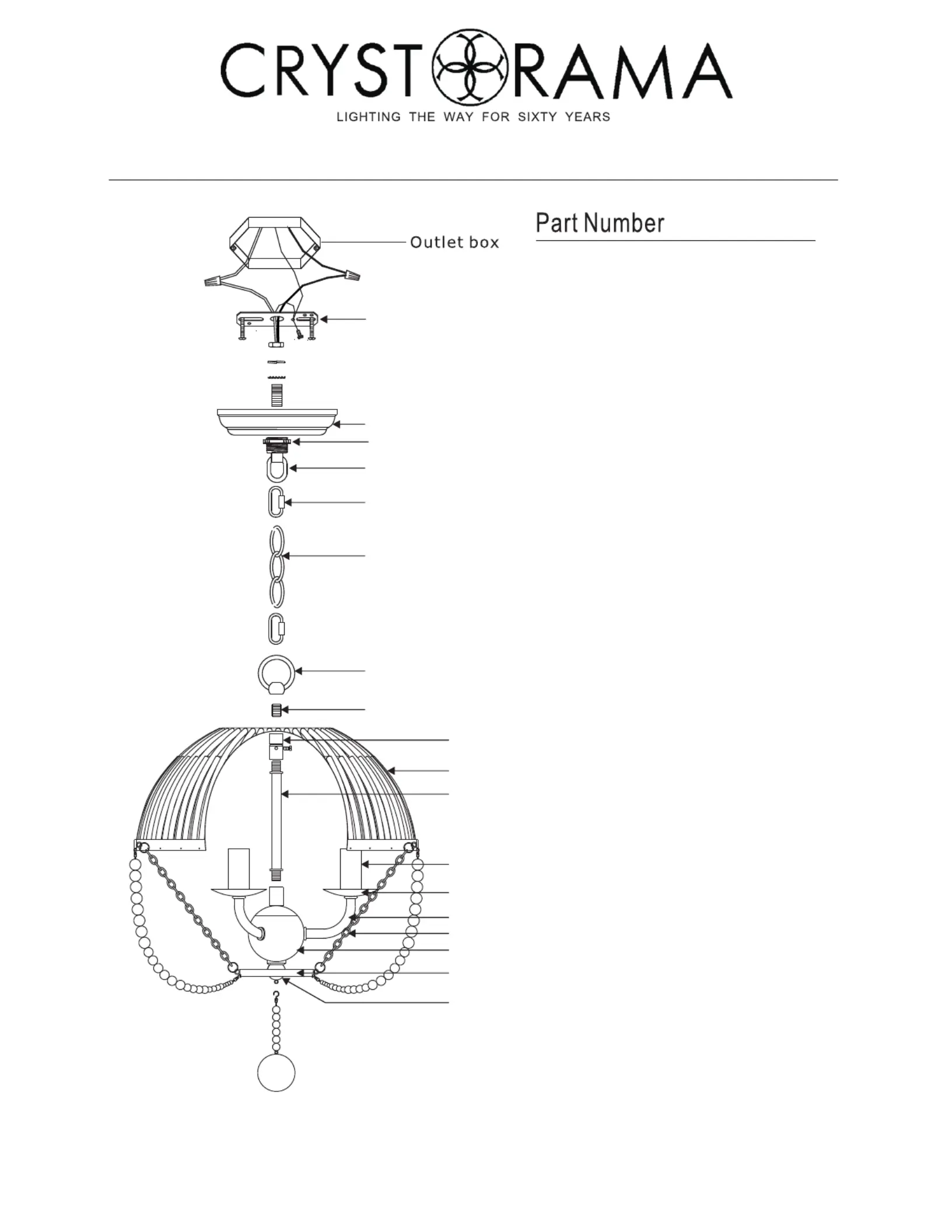

A. (1) - Mounting Hardware
B. (1) -
C. (1) -
D. (1) -
E. (2) -
F. (1) -
G. (1) -
H. (1) -
I. (1) - Swivel
J. (1) - Metal Cage
K. (1) -
L. (3) - Candle Sleeve(W1",H2") #XRE623GACDL2IN
M. (3) - Bobeche
N. (3) - Arm
O. (3) - Small Chain(each5.4",3mm) #XRE626GASCHA3MM
P. (1) - Light Cluster
Q. (1) -
R. (1) - Finial
Canopy(W5",H1") #XRE623GACAN5IN
Collar Ring
Collar Loop
Quick Link
Hanging Chain(each72",3.4mm) #XRE623GACHA3.4MM
Fixture Loop
Threaded Pipe
Center Stem(4.08") #XRE623GASTM4IN
Bottom Ring
