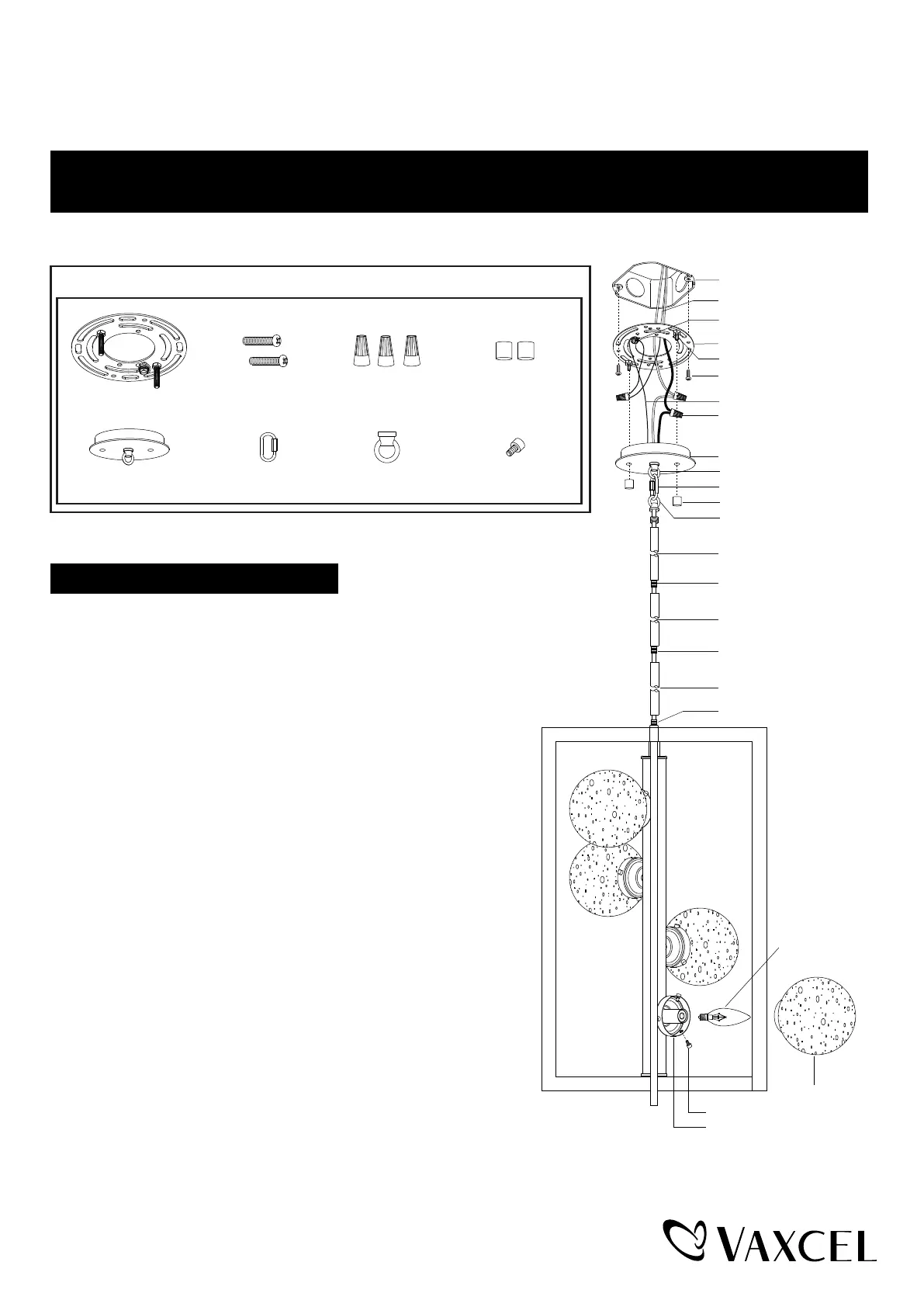

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0339
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1
. Attach the mounting plate unit (A) to the outlet box by using two
mounting screws (B).
2. Rod connections:
a. Thread the fixture wire from the fixture through the lower rod,
then secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure
the upper rod onto the middle rod using the threaded pipe.
d. Thread the fixture wire through the loop (G) and canopy (E),
then secure the loop (G) onto the upper rod using the threaded
pipe.
Note: Length adjustable from 34" to 88". Use fewer rods if
shorter length is desired.
3. Take a loop lock (F), open the locking tube, then hook it onto the
loop of canopy (E) and the loop (G) of upper rod. Close back the
locking tube of the loop lock (F).
4. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture ground wire to the mounting plate unit (A) with
the green ground screw, then connect it to the house ground wire
with a wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy (E) to the mounting plate unit (A) by inserting the
fixture mounting screws, secure it with two bolt nuts (D).
200916
Bolt Nut (D)Mounting plate Unit (A) Mounting Screw (B) Wire Connector (C)
Canopy (E)
Loop Lock (F) Loop (G) Set Screw (H)
Set Screw (H)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy (E)
Bolt Nut (D)
Outlet Box
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Loop (G)
Loop (G)
Loop Lock (F)
Bulb Type B
Max.40W
(not included)
Glass Shade
Glass Holder
Set Screw (H)
