CE Mark Warning

Safety Instructions

This is a Class product. In a stic environm t, this product may A dome en

cause r io terference, in which case the user may be req red to take ad in ui

adequate m sures.ea

Regulatory Statements

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for

a Class A digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct

the interference at his own expense.

Non-modifcation Statement

Any changes or modifcations not expressly approved by the party

responsible for compliance could void the user's authority to operate

the equipment.

The following general safety guidelines are provided to help ensure your

own personal safety and protect your product from potential

damage. Remember to consult the product user instructions for

more details.

Static electricity can be harmful to electronic components.

Discharge static electricity from your body (i.e. touching grounded

bare metal) before touching the product.

Do not attempt to service the product and never disassemble the

product. For some products with user replaceable battery, please

read and follow the instructions in the user manual.

Do not spill food or liquid on your product and never push any

objects into the openings of your product.

Do not use this product near water, areas with high humidity or

condensation unless the product is specifcally rated for outdoor

application.

Keep the product away from radiators and other heat sources.

Always unplug the product from mains power before cleaning and

use a dry lint free cloth only

EU declaration of conformity

Cudy hereby declares that this device is in compliance with the essential

requirements and other relevant provisions of directives 2014/30/EU,

2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at

http://www.cudy.com/ce.

Quick Installation Guide

Industrial Switch

810600122

Email:

support@cudy.com

Website:

www.cudy.com

Quick Reference

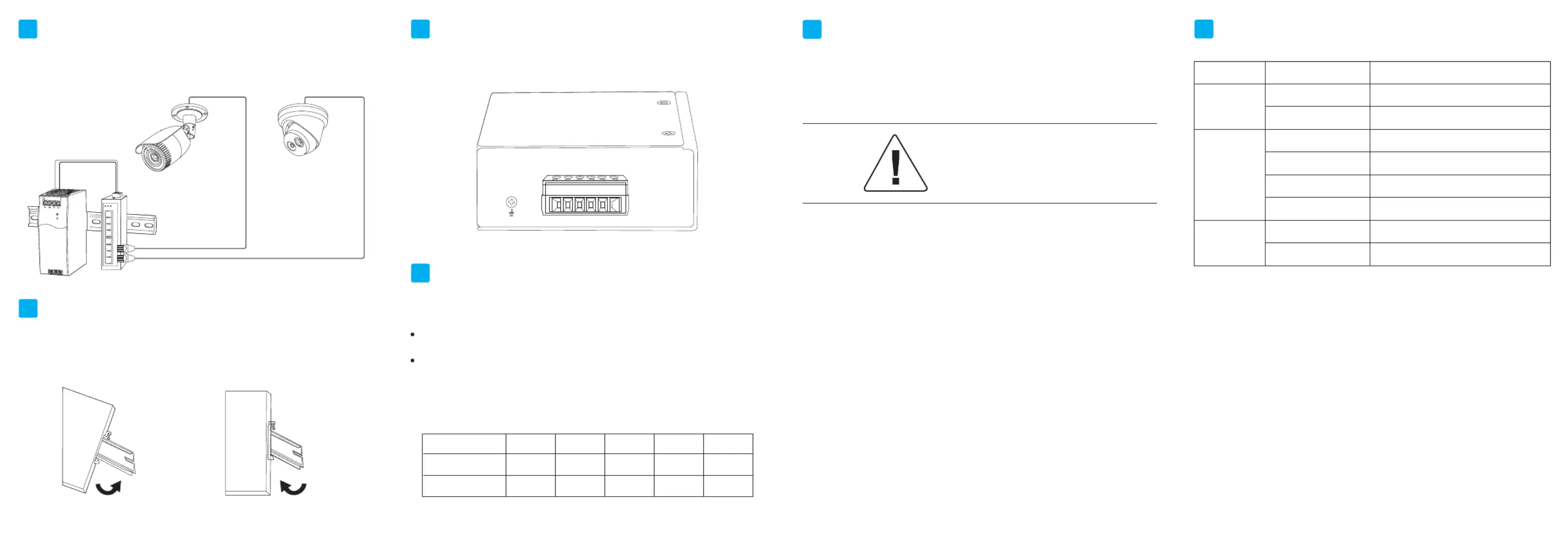

Hardware Installation

Ground Connecting

Ethernet Interface Connecting

(RJ45 Ethernet)

LED Indicator

Note: The switch model and power supply may be different from the

one shown in the example below. The power supply sold separately.

The switch must be properly grounded for optimum system performance.

1. Hook the unit over the DIN rail.

2. Push the bottom of the unit towards the DIN Rail until it snaps into

place.

Power

RJ45 indicator

LINK/ACT

Red LED on

Red LED off

Yellow LED on

Yellow LED flashing

Green LED on

Yellow/Green LED off

Green LED on

Green LED flashing

Power supplying in normal

Power supply abnormal or no powering

Network connection in normal

Link communication in normal

PoE feeding in normal

No connection at port

Optical network Connection in normal

Link connection in normal

LED Status Definition

Mounting the unit Releasing the unit

Connecting the Ethernet interface via RJ45:

To connect to a PC, use a straight-through or a cross-over Ethernet

cable.

To connect the switch to an Ethernet device, use UTP (Unshielded

Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables.

The pin assignment of RJ-45 connector is shown in the

following figure and table.

MDI signal

MDI-X signal

TX+

RX+

TX-

RX-

TX+

RX+

TX-

RX-

4,5,7,8

Power Connecting

The switch can be powered from two power supply (input range 12V –

57V for industrial switch or 48 57V for PoE industrial switch). Insert ～

the positive and negative wires (AWG 14-26) into V+ and V- contact on

the terminal block and tighten the wire-clamp screws to prevent the wires

from being loosened.

NOTE:

1. The DC power should be connected to a

well-fused power supply.

2. Input power should be within the range of

50~57VDC for PoE+ compliant, or

48~57VDC for PoE compliant.
