Side 1/136

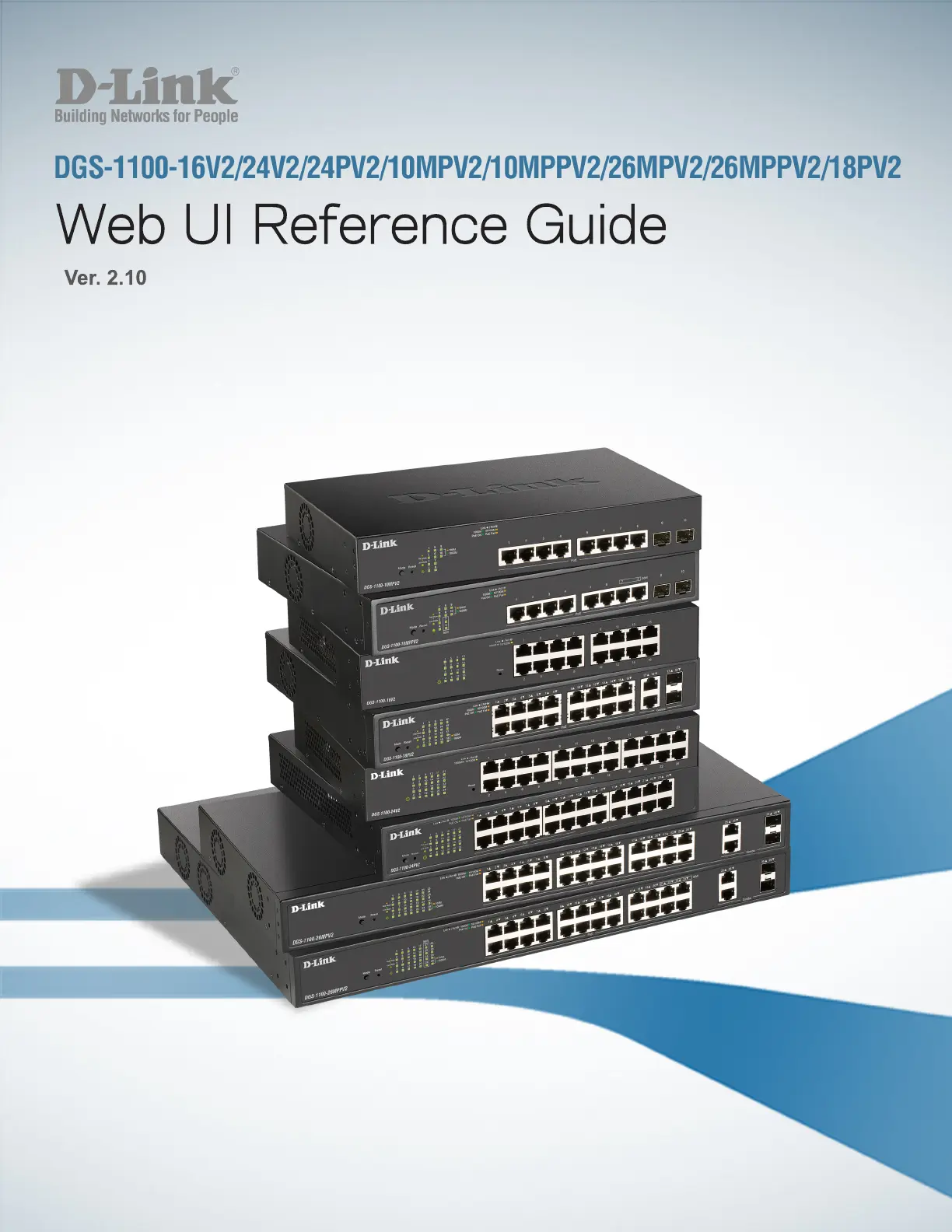

Web UI Reference Guide

Ver. 2.10

DGS-1100 Series Switch Web UI Reference Guide

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly

forbidden.

Trademarks used in this text: D-Link and the D-Link logo are trademarks of D-Link Corporation; Microsoft and

Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and

trade names other than its own.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct the interference at his own

expense.

Innovation, Science and Economic Development Canada (ISED) Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

VCCI-A Warning

この装置は、クラス A 情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こ

すことがあります。この場合には使用者が適切な対策を講ずるよう要求されることがあります。

Japan Voluntary Control Council for Interference Statement

This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI). If this

equipment is used in a domestic environment, radio interference may occur, in which case the user may be

required to take corrective actions.

警告使用者:

此為甲類的資訊技術設備，在居住環境中使用時，可能會造成射頻擾動，在這種情況下，使用者會被要

求採取某些適當的對策。

Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

Produkt Specifikationer

Mærke:	D-Link
Kategori:	bryter
Model:	DGS-1100-26MPV2
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	440 mm
Dybde:	208 mm
Højde:	44 mm
Vægt:	2800 g
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Relativ luftfugtighed ved opbevaring (H-H):	0 - 95 %
Driftstemperatur (T-T):	-10 - 50 °C
Sikkerhedsalgoritmer:	SSL/TLS
Husmateriale:	Metal
Støjniveau:	50.5 dB
Strømforbrug (maks.):	454.1 W
Netværksstandarder:	IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Webbaseret administration:	Ja
Servicekvalitet support (QoS):	Ja
Harmoniseret systemkode (HS):	85176990
Flashhukommelse:	16 MB
Fuld duplex:	Ja
Strøm over Ethernet (PoE):	Ja
Switch-type:	Administreret
ARP inspektion:	Ja
Switch lag:	L2
Total Power over Ethernet (PoE):	370 W
Power over Ethernet plus (PoE+) porte, antal:	24
Spanning tree protokol:	Ja
Auto MDI/MDI-X:	Ja
VLAN understøttelse:	Ja
Flowkontrol support:	Ja
Port-spejlning:	Ja
Link aggregering:	Ja
Kobber ethernet kabelteknologi:	10GBASE-T, 1000BASE-T
Broadcast stormkontrol:	Ja
Vituelle LAN funktioner:	Port-based VLAN, Voice VLAN
Basis omskiftning RJ-45 Ethernet porte, antal:	24
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
Kombo SFP porte, antal:	2
IGMP snooping:	Ja
Filtrering af MAC-adresser:	Ja
MAC adresselabel:	8000 entries
Switch kapacitet:	52 Gbit/sek.
Jumbo Frames support:	Ja
Stativ-montering:	Ja
Varmeafgivelse:	287 BUT/t
Multicast-understøttelse:	Ja
Begrænsning af hastighed:	Ja
Power over Ethernet (PoE) porte, antal:	24
Strømforsyning inkluderet:	Ja
Halv dupleks:	Ja
Auto-forhandling:	Ja
DHCP funktioner:	DHCP client
Hastighed for videresendelse:	38.69 Mpps
MIB support:	• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
Antal filtrerede multicast-grupper:	1
Head-of-line (HOL) blokering:	Ja
Ventilatorfri:	Ja
IPv4 & IPv6 funktioner:	IPv4 FIB
MTBF (PoE):	317.777 t
Statisk port, sikkerhed:	Ja
IPv4 multicast indtastninger:	1
IPv6 multicast indtastninger:	1
