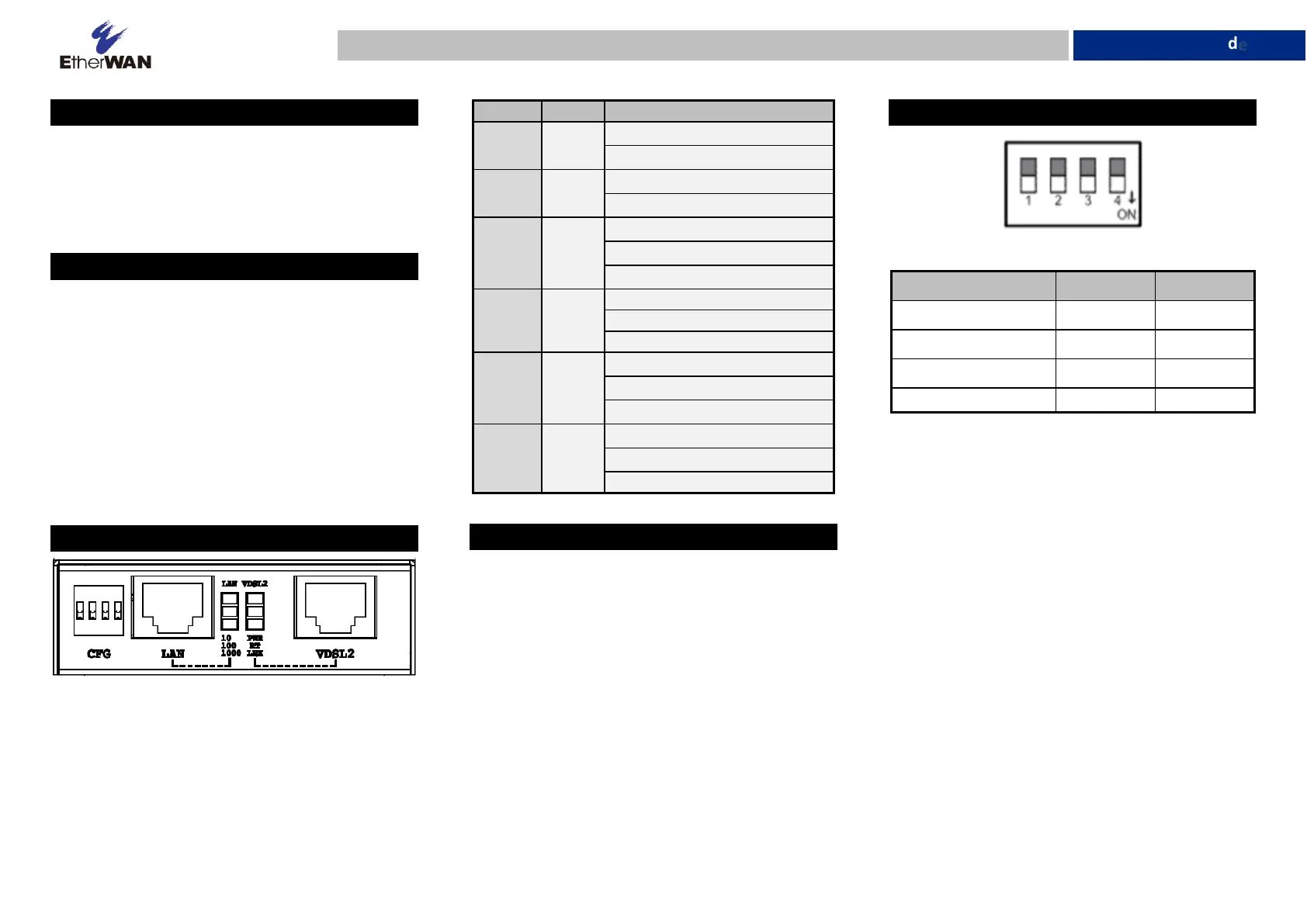

W70G-ED3601XQ1 Page 1

Installation Guide

ED3601 | VDSL2 Gigabit Ethernet Extender

1 Unpacking

Unpack the items. Your package should include:

▪ One ED3601 Ethernet Extender

If items are missing or damaged, notify your

EtherWAN representative. Keep the packing material.

2 Select a Location

▪ Installations: Desktop, DIN-Rail mount.

▪ Identify a power source within 6 feet (1.8 meters).

▪ Choose a dry area with ambient temperature

between -20 and 65ºC (-4 and 149ºF).

▪ Keep away from heat sources, sunlight, warm air

exhausts, hot-air vents, and heaters.

▪ Be sure there is adequate airflow.

▪ Keep the device at least 6 ft (1.83 m) away from

the nearest source of electromagnetic noise, such

as a photocopy machine.

3 LED Indicators

LED

Color

Status

PWR

Green

ON = Power On

OFF = Power Off

Green

On = RT (Remote)

Off= CO (Master)

LNK

Green

ON = VDSL2 Link up

OFF = VDSL2 Link down

Blink = Slow: Idle, Fast: Training

Green

ON = 10Mbps

OFF = Link down

Blink = Data transmitting

100

Green

ON = 100Mbps

OFF = Link down

Blink = Data transmitting

1000

Green

ON = 1000Mbps

OFF = Link down

Blink = Data transmitting

4 Connection

▪ Insert one end of the Ethernet cable into a switch

port.

▪ Connect the other end into the Ethernet port of

the device.

▪ Insert the voice grade copper wire between one

pair of Ethernet Extenders via VDSL2 port (RJ-45

connector). One device must be set to RT mode

and the other to CO mode when two devices are

connected.

5 DIP Switch Settings

DIP Switch

ON (Down)

OFF (Up)

Pin1 RT/CO

Pin2 Asymm / Symm

Asymmetric

Symmetric

Pin3 Mode

Interleave

G.INP

Pin4 SNR

High

LOW

NOTE:

1. The factory default setting of DIP switch pin1 is

“On”, other three pins are at “Off” positions.

Before adjusting the DIP switch, ensure that the

power has been turned off.

2. Any adjustment to the DIP switched requires

restarting the device for the changes to take

effect.
