Website: www.dahuasecurity.com

Address: No.1399 Binxing Road, Binjiang District, Hangzhou, P.R.China Postcode: 310053

Tel:+86-571-87688888 28933188

Email: dhoverseas@dhvisiontech.com

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

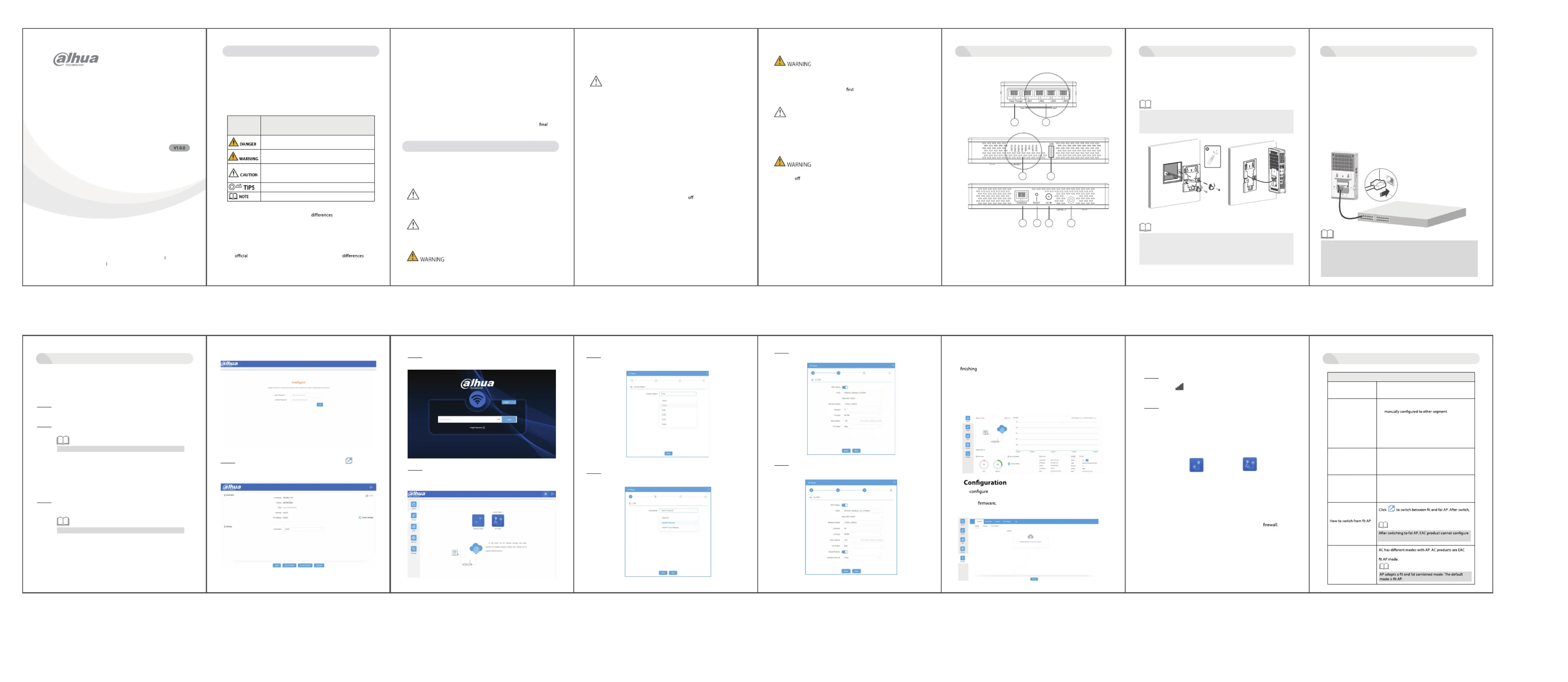

Quick Start Guide

In-Wall Mount Access Point

Foreword

General

This manual introduces the installation, functions and operations of the In-

Wall Mount Access Point (hereinafter referred to as "the AP"). Read carefully

before using the device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal

Words

Meaning

Indicates a high potential hazard which, if not avoided, will result in

death or serious injury.

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, reductions in performance, or

unpredictable results.

Provides methods to help you solve a problem or save time.

Provides additional information as a supplement to the text.

About the Manual

●

The manual is for reference only. Slight

might be found

between the manual and the product.

●

We are not liable for losses incurred due to operating the product in

ways that are not in compliance with the manual.

●

The manual will be updated according to the latest laws and

regulations of related jurisdictions. For detailed information, see the

paper user’s manual, use our CD-ROM, scan the QR code or visit our

website. The manual is for reference only. Slight

might be found between the electronic version and the paper version.

●

Do not disassemble the device without professional instruction.

●

Operate the device within the rated range of power input and output.

●

Make sure that the power supply is correct before running the device.

●

When removing the cable device

to avoid personal injury.

●

Do not unplug the power cord on the side of the device when the

adapter is powered on.

●

Use the device under allowed humidity and temperature conditions.

●

This is a class B product. In a domestic environment this may cause

radio interference in which case you may be required to take adequate

measures.

Maintenance Requirements

●

Do not disassemble it unless necessary.

●

Power

the device before maintenance.

●

Mark key components on the maintenance circuit diagram with

warning signs.

Operation Requirements

●

All designs and software are subject to change without prior written

notice. Product updates might result in some dierences appearing

between the actual product and the manual. Please contact customer

service for the latest program and supplementary documentation.

●

There might be errors in the print or deviations in the description of the

functions, operations and technical data. If there is any doubt or

dispute, we reserve the right of nal explanation.

●

Upgrade the reader software or try other mainstream reader software if

the manual (in PDF format) cannot be opened.

●

All trademarks, registered trademarks and company names in the

manual are properties of their respective owners.

●

Please visit our website, contact the supplier or customer service if any

problems occur while using the device.

●

If there is any uncertainty or controversy, we reserve the right of

explanation.

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device,

hazard prevention, and prevention of property damage. Read carefully

before using the device, and comply with the guidelines when using it.

Transportation Requirements

Transport the device under allowed humidity and temperature conditions.

Storage Requirements

Store the device under allowed humidity and temperature conditions.

Installation Requirements

●

Do not place the device in a place exposed to sunlight or near heat

sources.

●

Put the device in a well-ventilated place, and do not block its

ventilation.

●

Use an adapter or cabinet power supply provided by the manufacturer.

●

Do not connect the device to two or more kinds of power supplies, to

avoid damage to the device.

●

The device is a class I electrical appliance. Make sure that the power

supply of the device is connected to a power socket with protective

earthing.

●

The device must be grounded by a copper wire with a cross-sectional

area of 2.5 mm

and a ground resistance no more than 4 Ω.

●

Voltage stabilizer and lightning surge protector are optional depending

on the actual power supply on site and the ambient environment.

●

To ensure heat dissipation, the gap between the device and the

surrounding area should not be less than 10 cm on the sides and 10 cm

on top of the device.

●

When installing the device, make sure that the power plug and

appliance coupler can be easily reached to cut

power.

●

Outdoor models of the device must be securely installed on poles or

brackets that are perpendicular to the ground. Make sure the entire

surface of the device and all its related components are covered with

anti-oxidation coating (such as rust preventive paint), and that the

installation site and height of the device meet the requirements of the

plan.

●

Install outdoor models of the device on top of buildings where there is

little to no direct sunlight to avoid the device becoming overheated.

Make sure to take all necessary measures to protect the device.

●

Face the side with the Ethernet port downwards, and arrange the wires

in a downward direction when installing outdoor models of the device.

●

Do not connect the power adapter to the device while the adapter is

powered on.

●

Strictly comply with the local electrical safety code and standards.

●

Personnel working at heights must take all necessary measures to

ensure personal safety including wearing a helmet and safety belts.

●

Do not leave outdoor models of the device hanging in the air or facing

outwards when installing onto poles that are on top of buildings.

1. Pass Through

2. 10/100/1000 Mbps

3. LAN LED Indicator

4. USB

5. CONSOLE

6. RST

7. 12 VDC

8. Theft Protection

1 Overview

2 Mounting

line or connect according to the actual needs of the users.

You can mount the Access Point on Wall

Router/AP Installation

Install the mounting plate into the wall socket by using M4 Screw (refer the

image below). Connect the cable to WAN/PoE and pass through the port on

the bottom side of AP.

●

If the in-ceiling AP adopts a power supply of PoE 48V, use a switch with a

power supply of IEEE802.3at standard.

●

When the wireless scale is large and uses more in-ceiling APs, we

recommend using a AC wireless controller to manage all the APs.

●

The Pass Through Ports on side and bottom of AP are standar RJ45 Ports,

which can use a telephone.

Note:

4 Device Management

4.1 Management on Webpge

4.1.1 Wireless Connection

Procedure

Step 1 Set the IP address of the wireless adapter as 192.168.1.X (X

ranges from 1 to 252), keep the network segment same as the AP’s,

and then set subnet mask as 255.255.255.0.

Step 2 Set wireless connection after setting IP address. Select Wireless

2.4G Connect OK, click , input your password, and then click .

No password by default.

4.1.2 Wired Connection

Set the IP address of the wired adapter as 192.168.1.X (X ranges from 1 to

252), and keep the network segment same as the AP.

4.2 AP Mode

Procedure

Step 1 Open the IE browser, enter the web address of 192.168.1.110,

For the rst login, it will enter the interface as shown in Figure 4-1.

Please change the login password.

No password by default.

Figure 4-1 Login

4.6 Others

●

Gateway mode

Enable router functions. WAN port connects to modem (ADSL modem

or optical ber modem) to dial up to access Internet, or WAN port to

access Internet through static IP or dynamic IP.

●

AP mode

Disable all the WAN functions, including NAT, DHCP, and

All the

wireless ports and wired ports are connected together.

Conguration method

Congure according to the setup wizard of all modes, set parameters and

options, and then click to complete all the settings.Next

AP Mode

Gateway Mode

4.5 Testing Wireless

Procedure

Step 1 Test the wireless network is available through laptop or phone,

click

to select the set wireless SSID. Enter the right

password and test the network connection.

Step 2 Check whether the status, signal quality, signal speed, message

sending and data of the wireless connection are normal. Click to

view the detailed information, check whether the IP address and

DNS server are correctly acquired to make sure the normal

function of the device.

Step 5 Select .Country Region

Figure 4-5 Country Region

Step 6 Select AC from the .Get IP From Connection

Figure 4-6 Connection method

Step 4 After logging in, and then set the AP mode as the current

working mode.

Figure 4-4 AP mode

Step 3

After converting to Fat AP, you need to login again.

Figure 4-3 Login again

4.3 IP Settings and Status Checking

●

IP Settings: Wireless AP will restart and enter the set working status after

IP settings. Set the IP address as automatic require, so that

the computer and other wireless devices can connect to the previous-

level router, and access network.

●

Status Checking: Manually set the IP address of the computer as

192.168.1.X (X ranges from 1 to 252), and then realize the access and

status checking of the wireless AP management.

Figure 4-9 Home page

4.4 Management

You can restore settings, backup and resetting to default. You

can also set soft restart of the device, modify the web login password,

upgrade the

manage time, and count system logs.

Figure 4-10 Conguration management

Figure 4-7 2G WiFi

Step 7 On page, and then set the parameters.2G WiFi

Figure 4-8 5G WiFi

Step 8 On page, and then set the parameters.5G WiFi

Connect the Router/AP to the power supply (not included)

The Router/AP support a DC (not included) and 802.3af/at PoE power supply.

Users can choose a suitable power supply type according to the actual networking

environment.

1. Check Before Powering ON

After installation, the below points need to be checked before power on the device:

When using DC supply, make sure local AC power has good ground connection.

When using PoE power supply, make sure PoE PSE has good ground connection.

2. PoE Power Supply

Connect PoE port of switch to PoE In port on bottom of Router/AP with LAN cable

to provide PoE power supply to Router/AP. See the gure below.

PoE Ethernet Switch

3 Connection

●

If the in-ceiling AP adopts a power supply of PoE 48V, use a switch with

a power supply of IEEE802.3at standard.

●

When the wireless scale is large and uses more in-ceiling APs, we

recommend using a AC wireless controller to manage all the APs.

Questions Solutions

to fat AP.

the device will restart automatically. After restarting, clear

the IE browser cache and log in through web.

AC list cannot recognize

the AP devices.

series managing fat AP mode, or the BW series managing

Forget the login username

and password.

Restore the device to default settings, press and hold the

Reset button for over 10 s, and then release the pressing.

The device will restart and restore to factory settings.

1. Check whether the IP address and the AP are on the

same segment. Check whether the IP address is

2. Restore the wireless AP to the factory settings, and try

connecting again.

3. Make sure that the IP 192.168.1.110 of the wireless AP

is not occupied by other devices.

4. Check the computer of the network cable. We

recommend using unshielded twisted pair as the

network cable.

Cannot log in to the wireless

AP management page

through web.

Forget the password of the

wireless network.

1. Connect wireless AP with cables, enter the web

management page. Click wireless setting and basic

setting. Enter the password again in the secret key.

2. Restore to the factory settings, there is no password is

by default.

Cannot acquire IP address.

1. Check whether the device has enabled the DHCP

server under the gateway and wireless ISP client modes.

2. Check whether the upper network connection is normal

or the DHCP server works normally in the LAN under

the repeater and AP modes.

devices in batches.

5 FAQ

1 2

3 4

7 8

Step 2 The default page is the t AP mode, and you can click to switch

to the fat AP mode.

Figure 4-2 Fit AP

Produkt Specifikationer

Mærke:	Dahua Technology
Kategori:	Adgangspunkt
Model:	DH-EAP6230-W
Bredde:	86 mm
Dybde:	160 mm
Højde:	29 mm
Vægt:	260 g
Produktfarve:	Hvid
Pakkevægt:	390 g
Pakkedybde:	177 mm
Pakkebredde:	102 mm
Pakkehøjde:	54 mm
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	5 - 95 %
Ethernet LAN-porte (RJ-45):	7
Antal USB 2.0-porte:	1
Driftstemperatur (T-T):	-20 - 45 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Sikkerhedsalgoritmer:	WPA-PSK, WPA2-PSK, WPA3-PSK
Intern hukommelse:	512 MB
Frekvensområde:	160 MHz
Strømforbrug (maks.):	15 W
Placering:	Væg
Kabelteknologi:	10/100/1000Base-T(X)
Netværksstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.3at
DC-in-stik:	Ja
Understøttede netværksprotokoller:	UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;T CP/IP;DDNS;UPnP;ICMP
Webbaseret administration:	Ja
Knap til nulstilling:	Ja
Servicekvalitet support (QoS):	Ja
IP-adresse filtrering:	Ja
LED-indikatorer:	Ja
Maksimal indendørs rækkevidde:	12 m
Bæredygtighedscertifikater:	CE, Federal Communications Commission (FCC), RoHS
Frekvensbånd:	2.4 - 5.85 GHz
Maksimal dataoverførselshastighed:	3000 Mbit/s
Antenne type:	Intern
Indgangsstrøm:	1 A
Firmware kan opgraderes:	Ja
USB-stik type:	USB Type-A
Flashhukommelse:	8 MB
Strøm over Ethernet (PoE):	Ja
Overholdelse af bæredygtighed:	Ja
MIMO:	Ja
Filtrering af MAC-adresser:	Ja
2.4 GHz:	Ja
5 GHz:	Ja
WAN-forbindelse:	Ethernet (RJ-45)
Niveau for antennestyrke (maks.):	2.9 dBi
Maksimal dataoverførselshastighed (5 GHz):	2402 Mbit/s
Maksimal dataoverførselshastighed (2,4 GHz):	574 Mbit/s
Service Set Identifier (SSID) funktioner:	Hidden SSID
Syslog:	Ja
MIMO type:	Multi User MIMO
Dynamisk frekvensvalg (DFS):	Ja
DC spændingsområde:	12 V
Driftsmodus:	FIT AP, FAT AP
Spread-spectrum-metode:	OFDMA
Sendeeffekt (CE):	18 dBm
Gennemløbs datahastighed:	1000 Mbit/s
6 GHz:	Ingen
