rotate forward direction

left right

rotate direction

*To ensure the safety of the operator and the proper use of the product, please read the product user manual carefully.

STRUCTIONS

CLAMPING METHOD

Problem Solution

Deviation between measured

value and standard block

Stiff movement of measuring

rod

The product may have manufacturing errors, but as long as the difference value

complies with the local product standards, it is considered a normal phenomenon.

Clean the measuring rod with alcohol and a dust-free cloth to prevent clearance

reduction or damage caused by dust or foreign objects.

Self-Made Clamp

Upon installing with the lug after use,you

may adjust the position of the lug

according to the orientation of the fixture,

and then secure the indicator gauge onto

the fixture using screws.

Note: During the clamping process, tighten the indicator to the fixture until it is securely and reliably locked. Do not tighten it too much

to avoid causing deformation of the sleeve.

Clamp With a Magnetic Base Clamp With a Height Gauge

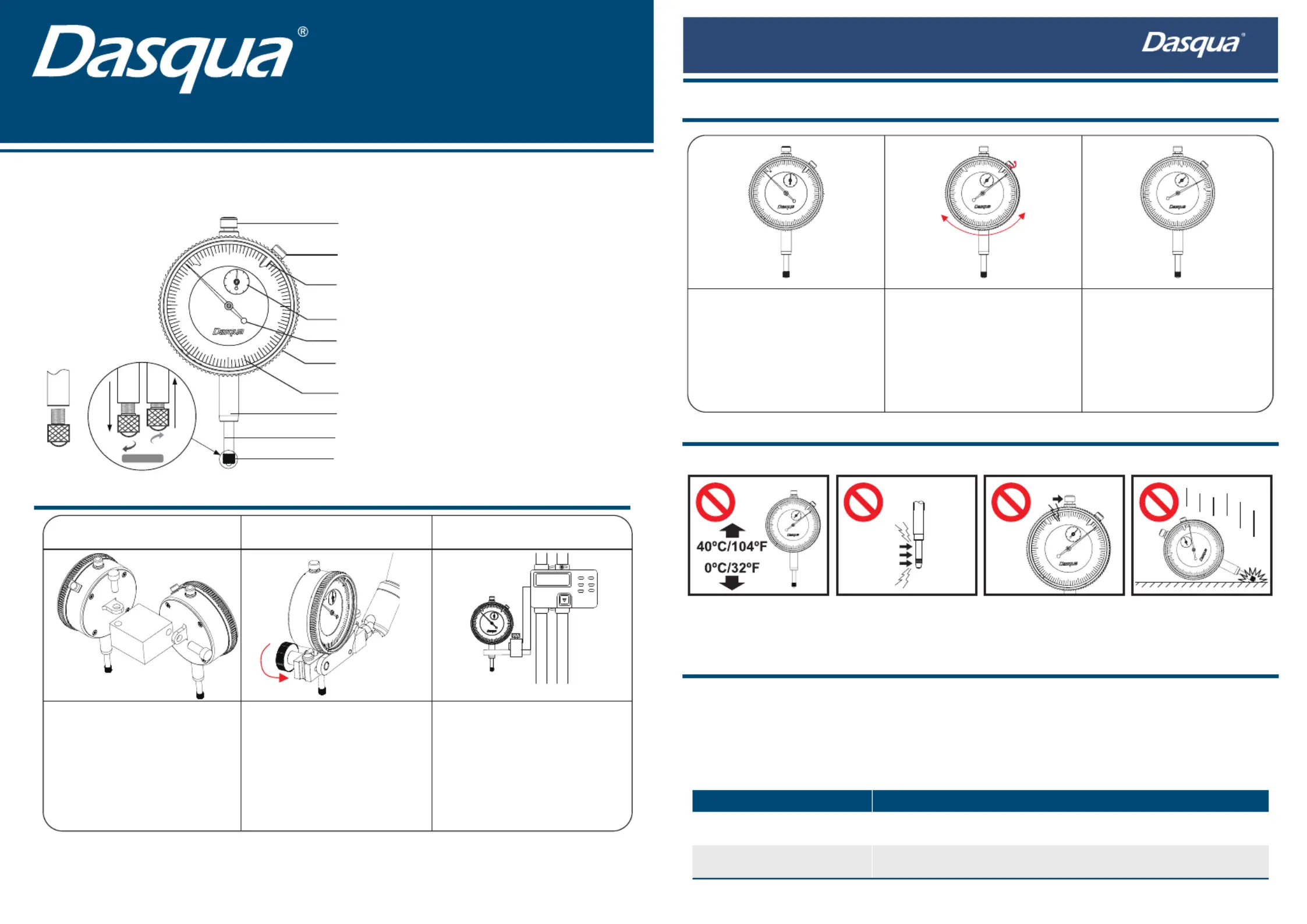

INSTRUCITION MANUAL FOR

DASQUA DAIL INDICATOR

PRODUCT INSTRUCTIONS

ZSB-0001-ZH-0327-AO

1. Header

2. Locking screw section

(Note: Some product codes do not

have this structure)

3. Tolerance indicator

4. Small-scale dial

5. Pointer

6. Bezel

7. Dial

8. Bushing

9. The stem of the gauge

10. Replaceable measuring

head

1. Before use, clean the measuring rod, measuring head, and measured surface with a dust-free cloth and alcohol without water.

2. This product is a precision measuring tool. After use, it should be placed in the box to avoid collision with hard objects or dropping

onto hard objects, which may cause damage.

3. After use, thoroughly wipe off water and oil. Then use WD40 rust prevention oil to gently apply and store.

4. Avoid storing in direct sunlight, high temperature, low temperature, and high humidity environments. During storage, the

measuring rod should be in a stress-free state.

5. The indicator has been calibrated before leaving the factory, and it is not recommended to disassemble or modify any

components, otherwise it may cause the product to lose accuracy and measurement function.

ZERO AND USE THE TOLERANCE INDICATOR

CAUTIONS

PROTECTION AND MAINTENANCE

1. Insert the indicator gauge into the

assembly hole of the magnetic base.

2. Tighten the magnetic base locking

screw to securely attach the indicator

gauge to the base.

3. Use the micro-adjustment screw

to adjust the gauge's contact pressure

with the product.

1. Insert the indicator gauge into the

assembly hole of the height gauge stand.

2. Tighten the gauge lock screw to securely

attach the indicator gauge to the stand.

3. Adjust the height gauge to ensure both

measurement points on the indicator

gauge are at zero, reducing any

measurement errors caused by differences

in measuring force.

1. Clean the probe and measuring rod of

the indicator, and ensure they move

smoothly without any objects.

Please pay attention to the following matters when using this product due to its precise structure:

1. To ensure product accuracy,

use within the environment

specified in this manual.

2. Do not apply lateral force to

the measuring rod.

3. Do not apply lateral force to

the measuring head.

4. Handle with care to prevent

dropping or impact, which may

cause structural damage and

loss of accuracy.

2. Adjust the height of the fixture so that

the pointer moves to about one-third of the

full range, and ensure that the measuring

head is closely attached to the surface to

be measured.Rotate the outer ring to

adjust the dial so that the pointer points to

"0" on the dial. Tighten the locking

pin (if there is one).

3. To adjust the tolerance indicator

according to the actual size tolerance,

make sure the measuring needle is at the

zero position of the tolerance zone of the

measured dimension.
