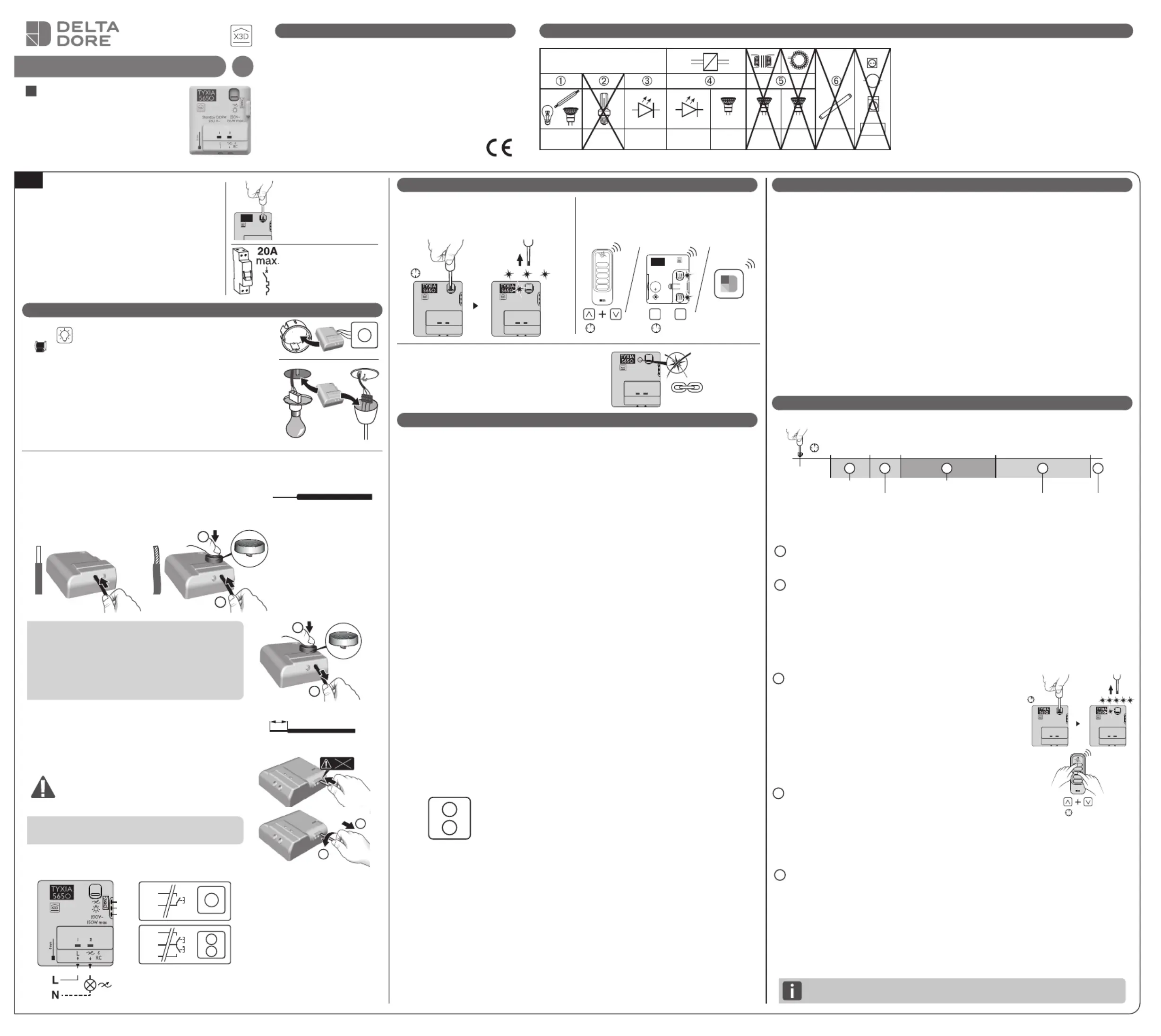

Side 1/1
Technical characteristics
- Power supply : 230V~ 0,17 VA
- Stand-by consumption : 0,09 W
- Number of associated transmitters: 16 maximum
- Storage temperature: -10°C/+70°C
- Operating temperature: -10°C/+40°C
- IP 40 (flush mounting box)
- Dimensions: 41 x 36 x 14.5 mm
- X3D wireless remote control device:
868.7 MHz to 869.2 MHz
EN Lighting dimmer receiver
TYXIA 5650
Compatibility
À 230 V halogen or 230 V incandescent bulbs.
Á 230V energy-saving compact fl uorescent bulbs.
Â230V LED bulbs.
à Very low voltage 12V halogen or LED bulbs with AC
or DC electronic transformer.
Ä Very low voltage 12V halogen bulbs with
ferromagnetic or toroidal transformer.
Å Fluorescent tube.
Do not connect different types of loads
to the same output.
150 W 6-100 W 6-100 W 150 W
LEDLED
230 V~ 50 Hz
12 Max 12 Max
M
Hi-Fi
Recommendations
IMPORTANT: the control wires are not
insulated from the mains power supply.
All connected equipment must be
marked CE and meet the requirements of
the low voltage devices as well as assembly
recommendations.
Local control wires can be extended up
to 10 m (separate from the 230 V).
1 - Installation
1.1 Connection instructions for terminals 1 and 2.
- Strip the wires while respecting the strip length
specified on the product.
- Push the wire fully into the terminal.
1.1.1 Solid wires Stranded wires 1.1.2
1.2 Connection instructions for
IN1 - COM - IN2 terminals
- Use the wires supplied.
- Push the wire fully into the terminal.
1.3 Connection
2 - Association
3 - Operation
3.1 Simple push-button
You have 2 modes to choose from:
• Mode 1. On/Off + dimming from 0% to 100% with storage of the latest
intermediary level. (by default).
- When the lighting is off:
Briefly press the control button to switch the lighting to the stored level.
After releasing:
- A short press under 5 seconds switches the lighting level to 100%.
- Pressing and holding before 5 seconds increases the lighting.
- A short press after 5 seconds switches the lighting level to 0%.
- Pressing and holding after 5 seconds dims the lighting.
- When the lighting is on:
- A short press switches the lighting level to 0%.
- Pressing and holding dims the lighting. Release.
Pressing and holding again before 5 seconds dims the lighting, after 5 seconds,
the lighting increases.
• Mode 2. On/Off + dimming from 0% to 100% without storage of the
intermediary level.
- When the lighting is off:
- A short press changes the lighting level from 0% to 100%.
- Pressing and holding increases the lighting.
- When the lighting is on:
- A short press switches the lighting level to 0%.
- Pressing and holding dims the lighting. Release.
Pressing and holding again before 5 seconds dims the lighting,
after 5 seconds, the lighting increases.
3.2 Double push-button
3.3 Simple/Double push-button
- Storage of the intermediary level:
Hold down the push button until the required level:
the lighting intensity varies. Release when the required level is reached.
The intermediary level is stored
3.4 To change to a different operating mode:
- Hold down the receiver button for 6 seconds.
- After 3 seconds, the LED flashes slowly.
- After 6 seconds, the LED is on without flashing. Release. The LED flashes.
- Press the button briefly to toggle between modes.
Mode 1 Mode 2: 1 flash, : 2 flashes.
Validation of the mode: Press the receiver button for 3 seconds until the LED stops flashing.
4 - Setup
Dimming range Min. Max. values (Manual mode)
Hold down the button for 6 seconds.
- After 3 seconds, the LED flashes slowly.
- After 6 seconds, the LED is on without flashing. Release.
The LED flashes.
- Briefly press the button to select the setting.
Repeat this procedure for each setting.
- 3 flashes: Setting the minimum dimming value:
Press and hold the push button of the local hard-wired control, adjust the minimum
value. Save the setting by pressing the receiver button for 3 seconds until its LED
lights up.
- 4 flashes: Setting the maximum dimming value:
Press and hold the push button of the local hard-wired control,
adjust the maximum value. Save the setting by pressing the receiver button for 3
seconds until its LED lights up.
5 - Help
Summary of functions:
3’’ 6’’>
A
>10’’ 20’’ 30’’> >
D E
>
CB
AAssociation
Press the button for 3 seconds until the LED flashes. Release
BModes 1 / 2
Hold down the button for 6 seconds.
- After 3 seconds, the LED flashes slowly.
- After 6 seconds, the LED is on without flashing. Release.
The LED flashes
(once or twice depending on the mode).
- Briefly press the button to move on to the next setting.
- Press the button for 3 seconds to confirm.
CRemove an association
Ê Hold down the button for 10 seconds:
- After 3 seconds, the LED flashes slowly.
-
After 6 seconds, the LED is on without flashing.
- After 10 seconds, the LED will blink fast. Release.
Ë Confirm on the transmitter (refer to the user guide).
- Make sure that the dimmer module LED has stopped
flashing. The products are no longer associated.
DRemove all associations
Hold down the button for 20 seconds:
- After 3 seconds, the LED flashes slowly.
-
After 6 seconds, the LED is on without flashing.
- After 10 seconds, the LED will blink fast.
- Press and hold the button until the LED goes out. Release.
EFactory reset
Hold down the button for 30 seconds:
- After 30 seconds, the LED flashes, then goes off.
- The dimmer module is blank and the wireless link and operating mode are
reset (mode 1 by default).
0,75 - 1,5 mm
Ø
2
2
1
230V
Do not strip the wires when they are
connected to the product as you
could damage the internal connector.
> 3s
>10s
EN
Use an electrically
isolated tool to perform
the actions on the
receiver configuration
button.
TYXIA
Switch off the installation
power supply
Using the tool
supplied or a 2.5 mm
screwdriver, press the
terminal button then
insert the wire.
Removal recommendations
- Switch off the power supply.
- Use the tool supplied or a 2.5 mm screwdri-
ver to press the button of the front terminal
before removing the wire.
2
1
1
2
Removal recommendations
Turn the wire while pulling on it.
/
TYXIA 2600
TYDOM
A
B
COM
IN1
IN2
CR 2032
TYXIA
2600
> 3s
A B
> 3s
... ... ...
> 3s
Ê
Press and hold the receiver
button for 3 seconds until the
LED flashes, release.
Ë On the transmitter:
- Send the association command
(Refer to the user guide).
Ì
When the receiver LED has stopped
flashing. The products are now
associated.
OK
OFF
20A max. circuit breaker
required.
Button 2
Press once briefly: OFF
Press and hold:
Dimming down
Button 1
Press once briefly: ON
Press and hold:
Dimming up
1
2
Example
2
7mm 0,5 mm
KY31A02
Remove an
association Remove all
associations
Factory
reset
Association
Configuration
Modes 1 / 2
230V~
OFF
The lighting receiver can be installed either in a flush-
mount housing behind a push button or behind a ceiling.
Do not switch on the receiver before connecting the
load. To obtain uniform operation, it is mandatory to
connect identical load models on the output.
- A simple push button:
at the IN1 - COM terminals.
Or
- A double push button:
at the IN1 - COM - IN2
terminals.
230V~
IN1
COM
1 2
IN1
IN2
COM
IN1
IN2
COM
1
1
2
1
2
Standby 0.09W
230 V~
- Switch the installation power back on to continue
with the association operation.
An additional user guide is available on the TYXIA 5650 page
of the DELTA DORE website. www.deltadore.com
