Side 1/5

DATASHEET

SUPER

LED

SUPER

LED

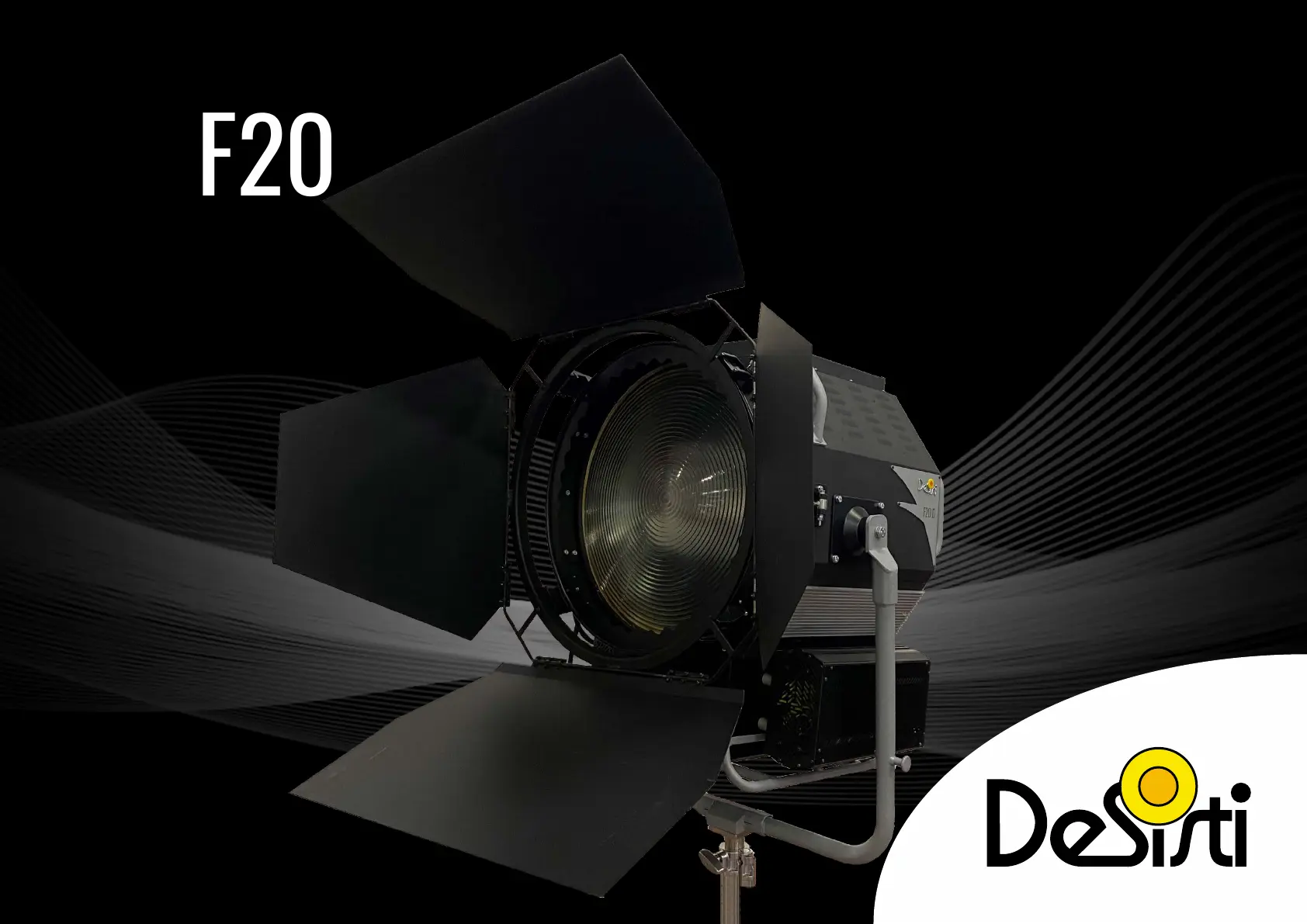

LED Fresnel Spotlight 1.000W - CRI>95

White light, either Tungsten or Daylight balanced CCT

OVERVIEW

The Super LED F20 is a high eciency Fresnel lens spotlight using the innovative High Power 1000W

internally designed LED Array, in combination with the DE SISTI Internationally Patented optical

system for LED FRESNEL and with an enhanced CRI (Color Rendering Index) higher than 95 for

appropriate chromacity performances.

The Lighting Fixture is DMX Controlled from 0 to 100% with a super smooth Dimming and a

negligible variation of Colour Temperature while controlling the Light intensity.

The F20 is available with either Tungsten (3.200°K) or Daylight (5.600°K) Balanced

CCT (Correlated Color Temperature), in both cases with a CRI higher than 95 and both in

Manual or Pole operated versions.

The xture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a

conventional lamp fresnel, with an excellent barn door cutting.

It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as

Barndoor, Color Frame, Cones, Scrims.

MODEL DESCRIPTION

F20T.MO Super LED F20 T - Tungsten CCT, Manual Operated

F20D.MO Super LED F20 D - Daylight CCT, Manual Operated

WHAT’S INSIDE

FIXTURE HEAD

500 mm. (20”) diameter Fresnel lens

POWERCON IN & OUT PANEL CONNECTORS.

XLR 5 Pin DMX IN & OUT PANEL CONNECTORS.

1000W high power CRI>95

Built In Universal Power Supply 90-250V

50/60Hz DMX controlled.

YOKES

Manual Operated Versions

Mod. 490.110.40 M.O. yoke with 28,57 mm

(B.S. 1 1/8”) with top end for “C” clamp

ACCESSORIES

Mod. 496.100 four leaf rotating barndoor

Mod. 497.100 color frame

CABLES

Mod. 5403.135 3 mt. (9.8 ft) detachable Blue

POWERCON power cable with bare ends.

DMX cable is not included, to be ordered

separately

Preliminary information subject to changes without notice

Produkt Specifikationer

Mærke:	DeSisti
Kategori:	Lys
Model:	Super LED F20
